Home > Products > aluminum coil > 3003 3105 3005 Alloy Good Paint PVDF Coating Aluminum Coil for Building Exterior Wall , Facade Wall

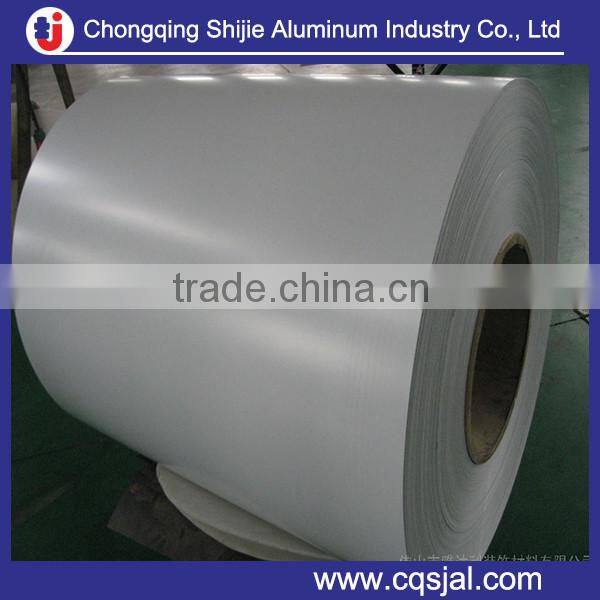

3003 3105 3005 Alloy Good Paint PVDF Coating Aluminum Coil for Building Exterior Wall , Facade Wall
- PVDF coating aluminum coil delivery on Shanghai /Chongqing /other chinese sea port
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Cost Price of Mill Embossed / Coated Aluminum Sheet Coil 5052 1060 3003 3105 5754 5083
-
AW5754 Adhesive Pre-treatments 0.2 ~ 0.7mm Aluminum Coil for Car PVC Sealing
-
1050 1060 1100 Competitive Price Color Coated Aluminum Coil for Curtain Wall, Traffic Sign Board ,building
-
Top Quality and Competitive Price ! 5083 Alloy Aluminum Coil / Aluminum Plate Sheet
-
0.5mm ~ 1.2mm Diamond Embossed Colorful Aluminum Roofing Coil 3003 3005 Alloy
-
Chinese Factory Supply Brown / Blue / White / Silver Colour Coated Aluminum Coil 0.2~1.2mm Thick
Product Details
| Place of Origin | Chongqing, China | Brand Name | shijie-aluminum coil | |
| Model Number | PVDF coating aluminum coil 202 | Application | roller shutter ,curtain wall , roofing ,guttering ,construction | |
| Thickness | 0.2~1.2mm | Width | 100-1600mm | |
| Alloy Or Not | Is Alloy | Grade | Other, 1000 series , 3000 series ,5000 series | |
| Surface Treatment | Coated | Temper | O - H112 |
Product Description
3003 3105 3005 alloy good paint PVDF coating aluminum coil for building exterior wall , facade wall
| Products Name | PVDF coating aluminum coil |
| available alloy | 1100 1050 1060 3003 3105 3005 3104 5005 5052 5182 5754 6061 7075 6082 8011 8079 |
| Hard Temper | H14 ,H24, H48,H22,H16,h46 H18, H48,T6,T11,T321,O,F |
| thickness | 0.2~1.5mm |
| width | 10~1600MM |
Mill finish aluminum Surface quality | without oil on surface , with out bend ,anti-scratch, color even coated |
| Products standards | GB/T3880 ,ASTM,YS |
| MOQ | 1000KGS |
| Produce leading time | 20~30working days |
| Payments term | L/C ,T/T ,D/A,D/P |
| Sample | availbale (deliery fee by clients) |
| Roller inner diameter | 76/152mm(Aluminum or Steel Core) |
| Roller out diameter | 100~1500mm |
Aliuminum material general end application | Due to Due to aluminum material property of corrosion ,prevention ,hardness ,processability and weldability, aluminum alloy is widely used in structure of building ,doors ,windows ,ceillings and decorative materials , curtainer walling .thecorrugated sheet ,tread plates and coated sheets ,etc aluminum material alo used for transprotantion , automobile industry ,subway, bus ,including doors&windows ,storage racks ,engine parts ,air conditioners ,radiatiors, automobile bodies and boats ,etc,
|
| coating | PE (Polyester)/EPOXY/PVDF |
| color | Ral color chart , as per clients sample |
| Coating thickness | 10~25Um |
| color warranty | 10~20 Years |
Adhesion | 5B(EN ISO-2409:1994) |
| T benb | 0T~3T |
Impact resistance | No cracking and peeling(A.S.T.M D2794-1993) |
| Mek resistance Test | More than 100times |
| color coated details (all RAL color no. is available for coating or as per clients sample ) | |
| Color quality :1 ,No color difference , high flatness , smooth surface , hard to be polluted , easy to be cleaned , high wearability , uniform coating ,cost advantage | |
| |
Embossed details :
| Stucco embossed (mill finish / coated finish ) | Diamond embossed (mill finish / coated finish) |
| |
| Anti-sleeping tread sheet (1bars ,2-bars) | corrugated sheet/coil |
| |
Embossed aluminum coil end application :
| Stucco embossed | Stucco embossed aluminum plactes /coil would be widely used in corrosion prevention ,insulation ,interior and exterior decoration ,refrigerator ,freezer liner and top grade standiums etc , can be composited with craft paer, the aluminum plates could be more effetcive in corrosion prevention and thus could be unsed on petroleum ,electric power , chemical industry and stadium construction . |
| Checkered / tread aluminum sheet ,coil | used for the floors of the bus .cars/ automobiles and other surfaces of the floors . |
| aluminum corrugated sheet / coil | could be widely applied to roofing and walling |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Al |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | -- | -- | 0.03 | 0.03 | 99.6% | |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | -- | -- | 0.05 | 0.03 | -- | 99.5% |
| 1100 | 0.95 | 0.05~0.2 | 0.05 | -- | -- | -- | 0.1 | -- | -- | 99% | |
| 3003 | 0.6 | 0.7 | 0.05~0.2 | 1.0~1.5 | -- | -- | -- | 0.1 | -- | -- | Remainder |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.2~0.6 | 0.1 | -- | 0.25 | 0.1 | -- | Remainder |
| 3105 | 0.6 | 0.7 | 0.3 | 0.3~0.8 | 0.2~0.8 | 0.2 | -- | 0.4 | 0.1 | -- | Remainder |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | -- | 0.1 | -- | -- | Remainder |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5~1.1 | 0.1 | -- | 0.25 | -- | -- | Remainder |
| 8011 | 0.5~0.9 | 0.6~1.0 | 0.1 | 0.2 | 0.05 | 0.05 | -- | 0.1 | 0.08 | -- | Remainde |
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) , loading 30~40 tons.
| products | package method | unit weight |
| aluminum sheet | paper enleaved on wooden pallet | 1~2.5tons |
| aluminum coil | eye to sky (vertical) or sky to wall(horizontal) | 1~2.5tons |
| aluminum circle | packed in wooden case | as clients request |
| aluminum foil | big roll or small roll | 70~2500kgs |
lor coated embossed aluminum coil
2.aluminum alloy plates
3.aluminum alloy coil
4.Aluminum foil
5.aluminum strip
6.stucco, tread embossed aluminum plates composited with craft paper
7.Special coated aluminum strip (this coated alu strip can be bond on PVC ,ABS ,TEP ,PP ,TPV material for automobiale weather strip)
Chongqing Shijie aluminum Industry Co.Ltd
We offer kinds of aluminum material including the aluminum sheet /coil ,color coated aluminum sheet ,such as PE/PVDF/EPOXY/ PVC/TPE/EPDM basing coating ,also including the kinds of embossed aluminum sheet . Our material widely used for contruction ,building ,decoration ,automobile ,device parts. Our team with rich experience on exporting and abtained clients trust and good reputation from all of the world market.
PE color prepainted aluminum rolls/coils/strips/sheets
Our PE coated aluminim coils are manufactured through precise roller coating & baking technology.
The various colors are bright and vivid with small color difference. Our PE coated aluminium coils are of high impact resistance and could be easily processed and their properties reach national standard of China.
It can be used in indoor decoration, roofing, ceiling, curtain walling, composite panel, signboard, electric appliances and car, etc.
PVDF color prepainted aluminum rolls/coils/strips/sheets
Our PVDF coated aluminium coils are manufactured through roller coating & baking with coating materials supplied by BECKER of Sweden and PPG of America, both of which are of world famous.
With high quality PVDF materials, our PVDF coated coils have great weather-resistance, anti-ultraviolet capability and corrosion-resistance. In normal outdoor environment, The color and gloss of our coated coils could keep in good condition for more than 20 years. Due to their high abrasion, impact resistance and flexibility, our coated coils are of excellent workability.
It is widely used for Aluminum Composite Panels (ACP), roofing, curtain walling etc.
Certificate : ISO9001 ,Argentina charmber legalized original certificate :
1, Are you factory or manufacturer ?
we are factory and the one of Chinese top coating aluminum material manufacturer.
2,Can you provide the sample ?
Yes ,We can supply the sample for you check the quality .but you need arrange the express cost .
3, what is your MOQ?
Normally the Mimium order quantity is 5000KGS. but it is also possible less them 5000kgs if there is available material in stock,
4,Do you accept the L/C?
Yes , we accept the L/C payment term .
5, How about your production leading time?
Normally it can be finished within30days
If you have any inquiry on our prdocuts or interest into discussing more details , pls feel free to contact me by the following infomation
Contact Us
- Chongqing Shijie Aluminum Industry Co., Ltd.
- Contact nameMichelle Lu Chat Now
- Phone0086-023-68436436
- AddressKailuo Road, Taojia Ind. Zone
