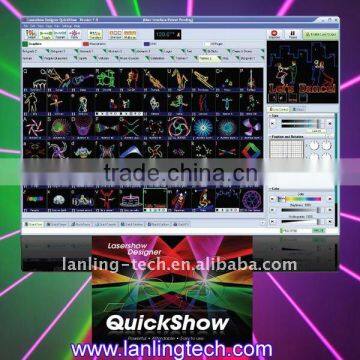

QuickShow-Pangolin laser controller for ILDA animation lasers

Pangolin QuickShow for ILDA Animation Laser lights

Functions

Create your own logo/letters. QuickShow set including hardware, software, 25pins PC ILDA cable, USB cable (works for all computers which has USB interface, such as Windows XP, Vista, 7)

What you get

QuickShow software on CD-ROM, Nearly 2000 pre-loaded cues, Instruction manual, Flashback 3 interface box: 4.2 x 2.8 x 1.3 in (110 x 71 x 33 mm), USB cable, to connect your computer to the Flashback 3 box

No dongles!

Never worry about forgetting or losing a dongle. You can work on, and display, shows without needing a dongle.

Cues

Nearly 2000 graphics, animations, beam effects and abstracts are included.

Abstract frames

Make planetarium-style abstract shapes, such as flowers or spirograph geometric figures.

Live controls

For a cue or the entire display, adjust size, position, rotation angle, rotation speed, color, color cycling, scan speed and animation rate.

QuickTools for creation and editing

QuickText, QuickShape, QuickTrace, QuickTargets, QuickTimeline, QuickDMX

Display methods

Single cue, multi-track cue, sequence cues, timeline show programming.

Display timing

Manual (mouse/keyboard), automatic to beat (BPM), autorun for sequences and timeline.

BPM methods

Timed, audio beat detect, manual.

Preview

On-screen preview of all graphics and beams using Windows OpenGL.

Background work mode

Create/edit cues on-screen without affecting laser output. Only show your cues when you are done. The audience never sees your background work.

Autotrace bitmaps

Import GIF, JPG, BMP files and convert instantly to laser. Outline and centerline tracing modes.

Control DMX devices

Set up to 512 DMX channels per cue. Unlimited number of cues or “looks”.

Custom effects

Apply one or more effects to a cue, a sequence or a timeline event. Effects include colors (preset and changing), pulse/flash/strobe, trace, chop, ripple, mirror, double, scroll, rock, throb, zoom and bounce.

Projector correction and zones

Full geometric correction for off-axis scanning. HIt multiple screens from one projector, using projection zones (cues are positioned and scaled to appear in part of the scan area).
