Access Control System Keypad With Small and Beautiful Appearance

Specifications

Access control keypad description:

1.Support 500 users (card or password)

2.Non-volatile Memory when Power Failure

3.Exquisite design, silver plated keypad with back light

4.One of the most advanced standalone access controllers

5.Built-in the doorbell control, built-in bludgon into alarm

6.Built-in non-contact card reader and password keyboard

7. Multifunction device, can use as a WG26 card reader alone

8.The controller has built-in powerful modern Central Processing Unit

9.Support card, passwords, card and password to open the door model

10. Manage up to 500 card users, also can be set to Authorized Card Only

11.Authorized Card or Public PIN and Authorized Card + Personal PIN to open the door

12.Additional functions include: door sensor input, alarm relay output, safe mode and anti-break

Access control keypad advantages & features:

1.Real time monitoring of door access

2.Simple Programming, Easy Operation

3.Non-volatile Memory when Power Failure

4.Accurate recording of arrivals and departures

5.Keypad Locks for 30 Seconds After 10 False Entries

6.Can be connected with Door-open Button and Doorbell

7.Convenient and secure method of controlling door entry

8.Has back tamper switch to detect unauthorized attempts at entry

9.Fast identification speed: Able to open the door in less than 0.1S.

10.Energy saving: Low power consumption, standby current is 40mA

11.Open door mode a.Six Digits(999 groups) b.Six Digits+Card c.Six Digits+Six Digits d.Card+Card

Access control keypad technical parameters:

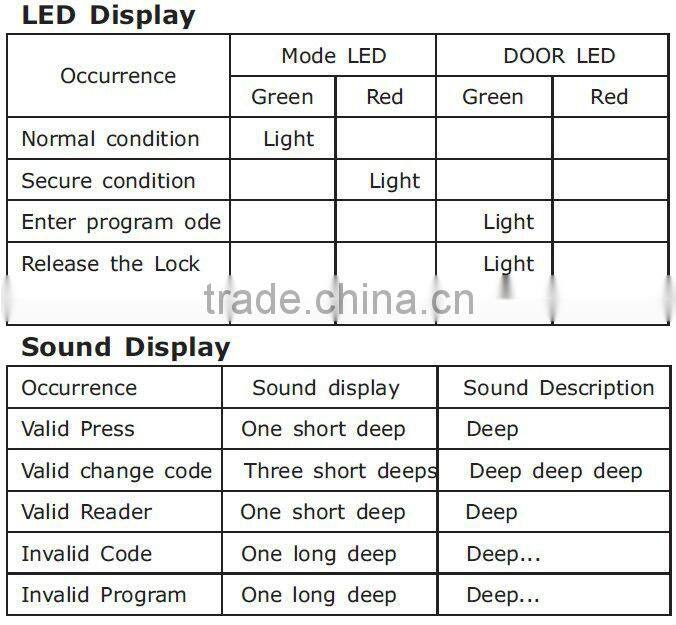

Access control keypad more detail:

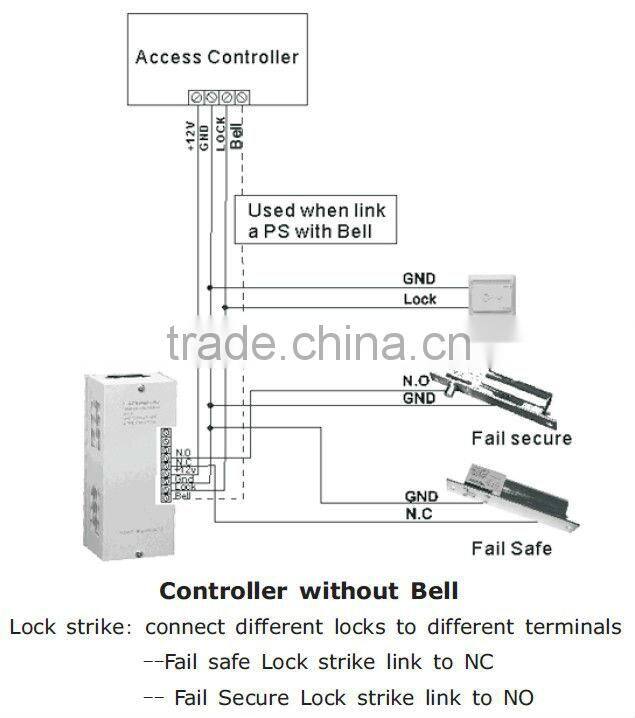

Access control keypad wiring diagram:

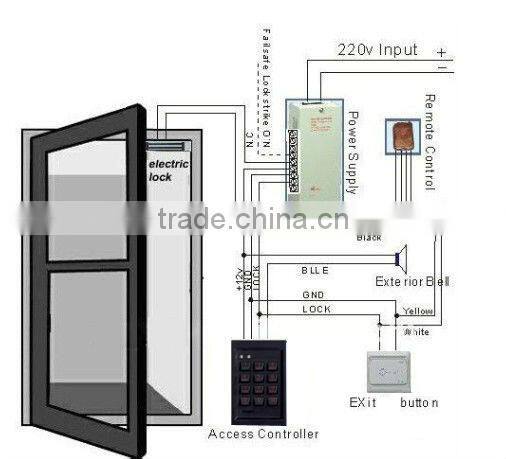

 Stand alone access control system with keypad:

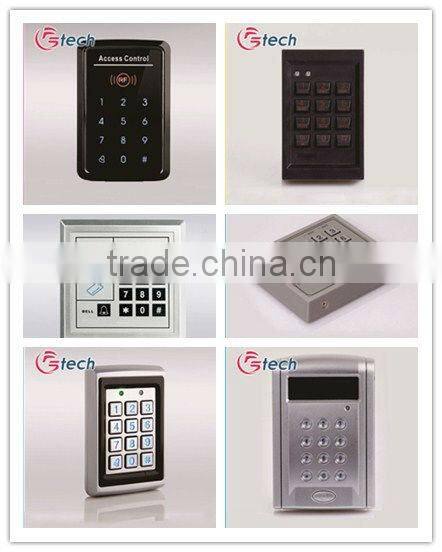

 Access control keypad series:

Payment:

If the total amount is less than 500USD, we prefer to accept Paypal or Western Union. For big amount we accept bank transfer.

Shipment:

Normally we will use UPS, DHL, FEDEX or EMS express. It usually takes 3-7 working days depending on the countries deliver to.

We can also arrange other shipment way per your requirement and instruction, such as sea shipment, air shipment, etc.

Warranty:

Warranty for one year, maintenance forever, change within 3 months because of product quality.
