Electric Sliding Door Lock Electromagnetic Locks for Doors Magnetic Lock

FOB Price

US$ 7.06 - 50.26 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	FStech
Model Number	HLEM660T

1.Magnetic
2.indicator and signal out-put

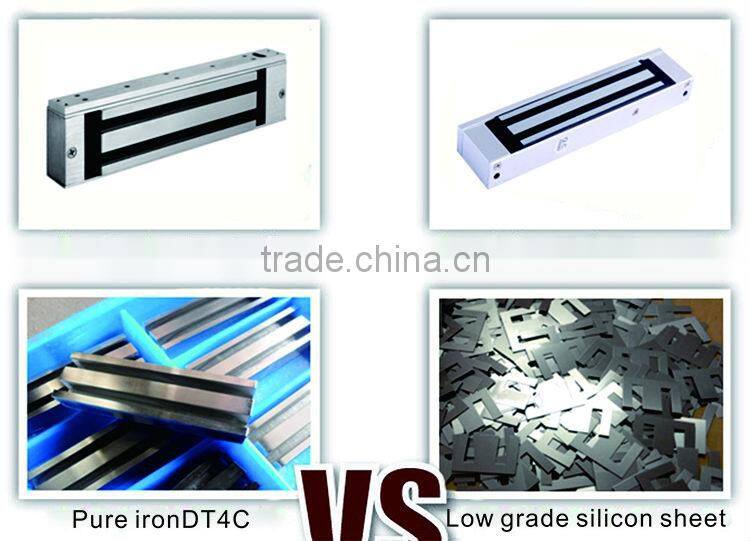

3.Pure Iron lock cylinder and copper coil
4.No residual magnetism
5.Chrome finish

An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet

and an armature plate used for access control door locks.By attaching this to the door frame and the armature

plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access

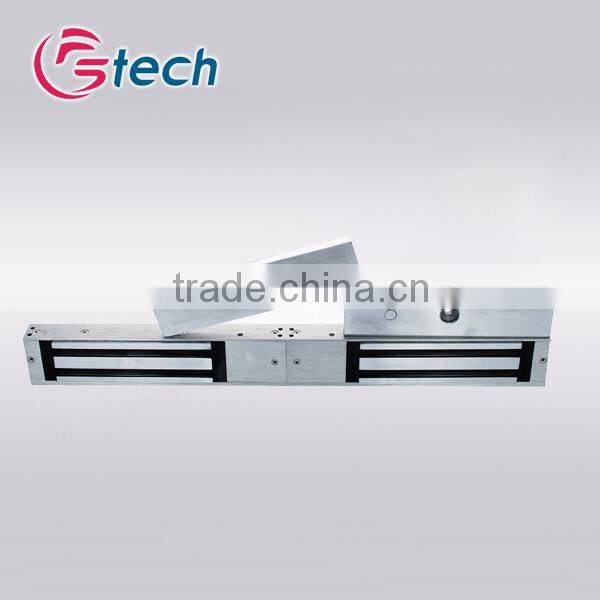

Product	Double door electromagnetic lock
Lock Dimension	5004828(mm)
Armature Plate Dimension	182L46W13H(mm)
Input Voltage	DC12V or DC24V
Holding Force	350KG(800LBS)*2
Current	12V/350mA2 24V/180mA2
Suitable Humidity	0-90%(non-condensing)
Lock Finish	Chrome plating
Cover Finish	Drawing oxidation
Safety Type	Fail Safe
Suitable	Wooden door, Glass door, Metal door, Sliding door.
