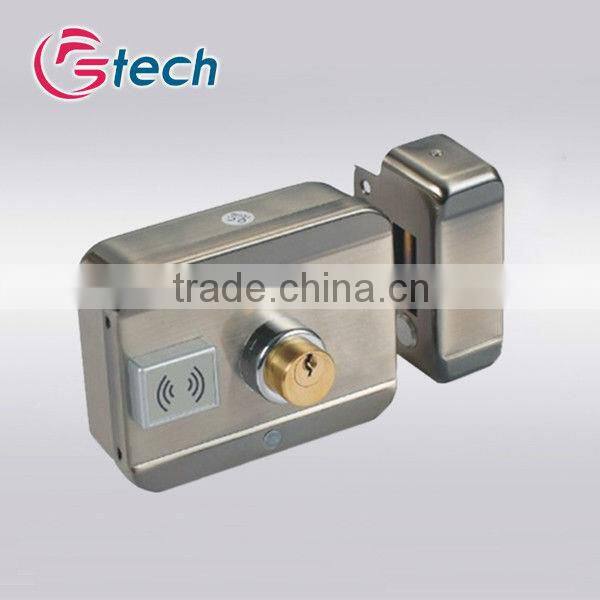

Intelligent Lock With ID Card Patent Technology Electric Lock With Remote
- NingBo
- Credit Card
You May Like
-
Electric Magnetic Rim Lock 12VDC Iron Gate Lock for Video Door Phone System
-
Rim Door Lock With Outside Cylinder Rim Night Latch Lock for Iron Door
-
Electric Rim Lock With Low Electricity Consumption Rim Night Door Lock
-
Double Latch Door Lock Electronic Deadbolt Lock Special Design for Metal Door
-
Electric Rim Lock Top Quality Double Cylinder Electric Prison Lock
-
Electric Rim Lock With Keys Iron Gate Electric Rim Lock in Security and Protection
Product Details
| Place of Origin | Zhejiang, China | Brand Name | FStech | |
| Model Number | EL24 |
Product Description
Specifications
1.Electric rim lock2.Double lock cylinder
3.Inside and outside card sensor
4.Work alone to delete card
5.Power on to unlock
Electric rim lock description:
1.Fail secure, power on to unlock
2. Electric control lock is powered by electricity, can open with keys, and cards from inside and outside
3.Low noise, no shock ,Low power consumption,long service life, be convenient to install
4.Intelligent integrated electric rim lock, no noise for openning or closing the door
5.Made of top quality metal ensure to provide durable security, reliability & safety to the user
Electric rim lock technical parameters:
Safety Type | Power on to unlock |
Working Voltage | DC12V-DC18V |
Standby Current | <100mA |
ID card or compatible card | distance of reading card is 0-10cm |
Length deadbolt | 20mm |
Lifespan service | 500,000 times |
Sensitivity | 1s |
Lock body size | 131*100*42mm |
Capacity | 1 login card,1 delete card,2000 user card |
Working temperature | -20°C-60°C |
Remote control receiving distance | 0-1m |
Signal output | NO COM |
Electric rim lock advantages & features:
1.High security and low noise
2.Available different kind of door
3.No necessary to identify installation directions
4.Supports video door phone and access control system
5. Adopt user card,button, or wireless remote control to opening
6.Can delete the user card independently via the infrared remote control function
7.This electric rim door lock adopts newest patent technology,having incomparable advantages from traditional electric locks
8. Remote control gate locks is very easy to install,regardless of left and right sides.
9. Elelctric rim lock can work with door closer and intercom system,lock automatically,no noise for openning or closing the door.
10. Electric control lock suitable for"left open/outside","left open/inside","right open/inside"and"right open/outside".

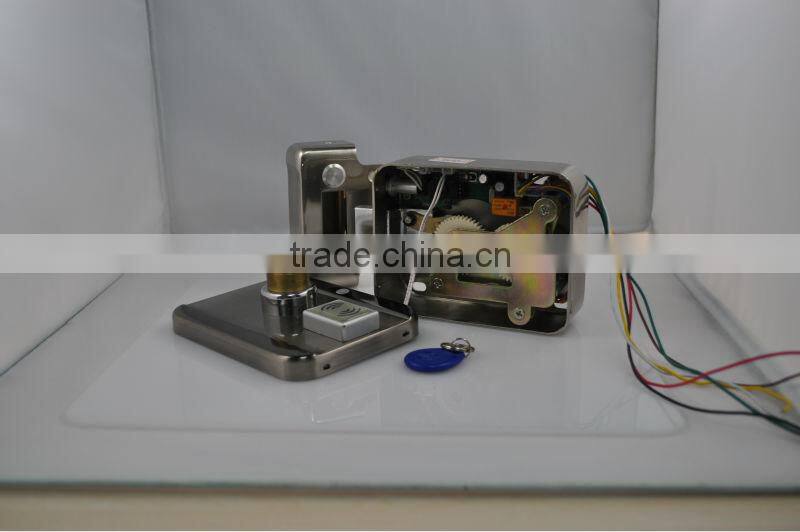

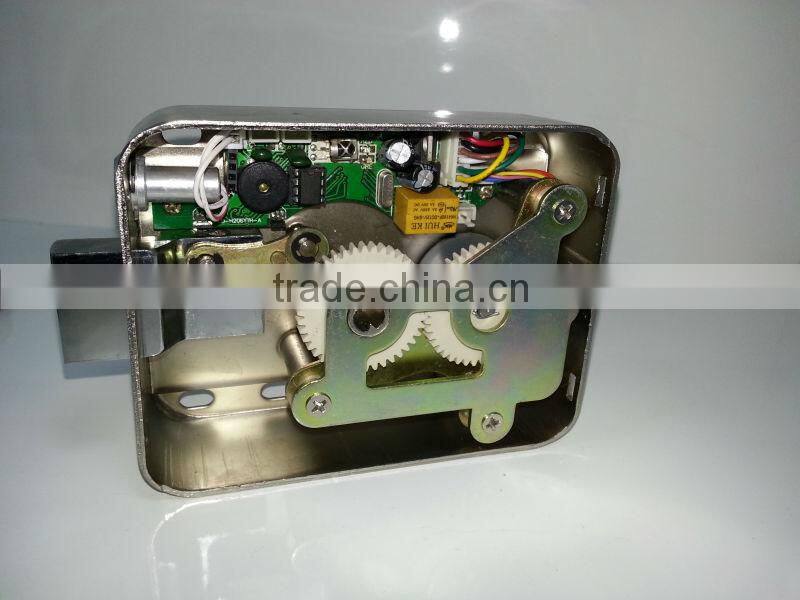

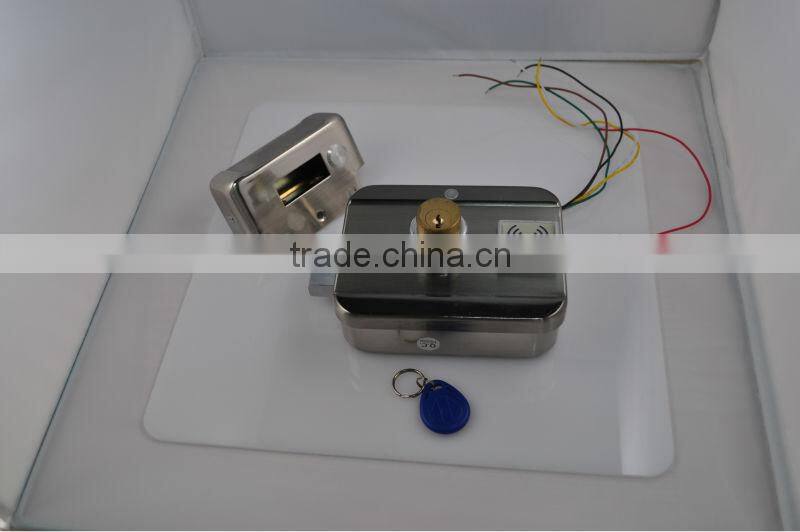

Electric rim lock details:
Electric rim lock installation:
Infrared remote controller operation:
1.Management password is:123456
2.Enter into function steps:Input management password (123456), press CALL, if success the buzzer rings one time, otherwise ring twice.
3.Add user card: Input management password, press CALL and 1 , sweep added user card, press EXIT to exit.
4.Delete user card: Input management password, press CALL and 2 , sweep delete user card, or input card number(10 digits), press CALL; press EXIT to exit when finish.
5.Modify management password: input management password, press CALL and 3 , input new password, pressCALL then exit automatically.
6.Add wireless remote controller: input management password, pressCALL and 4 , press wireless remote controller button, pressEXIT to exit when finish.
7.Delete wireless remote controller: input management password, pressCALL and 5 , press wireless remote controller button, pressEXIT to exit when finish.
8.Delete all remote controller: input management password, pressCALL and 6 then exit automatically.
9.Delete all user card: input management password, pressCALL and 7 then exit automatically.
Forget the administrator password and making the login card, delete card:

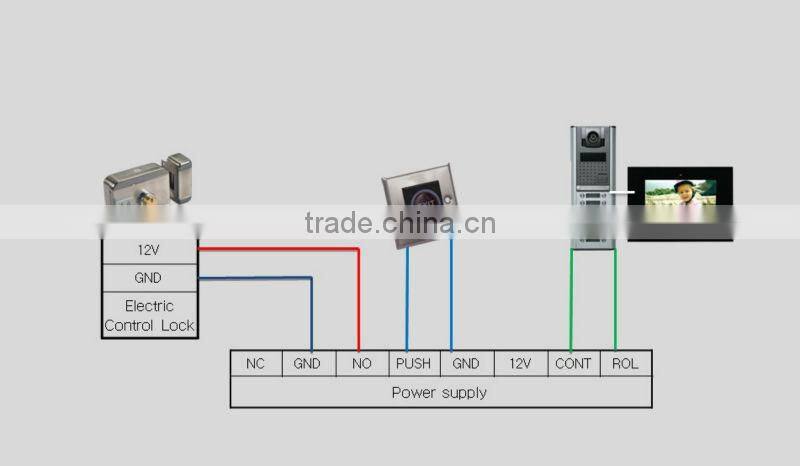

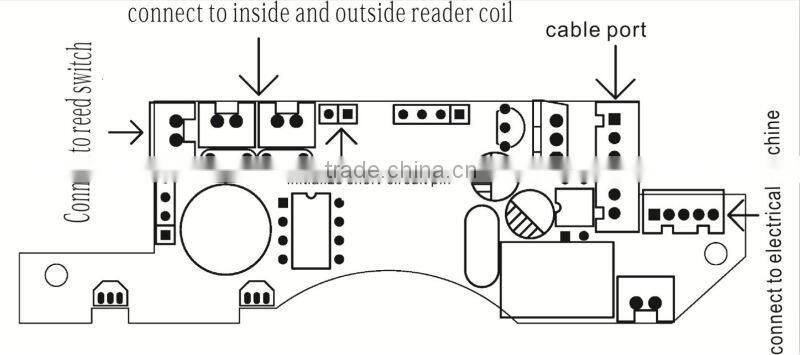

Electric rim lock installation and wiring:

Electric rim lock series:
Customer and us:
Payment:
If the total amount is less than 500USD,we prefer to accept PayPal or Western Union;for big amount we accept bank transfer.
Shipment:
Normally we will use UPS,DHL,FEDEX or EMS express.It usually takes 3-7 working days depending on the countries deliver to.
We can also arrange other shipment way per your requirement and instrution ,such as sea shipment,air shipment ,etc.
Warranty:
Warranty for one year,maintenance forever,change within 3 mounths because of product quality.
