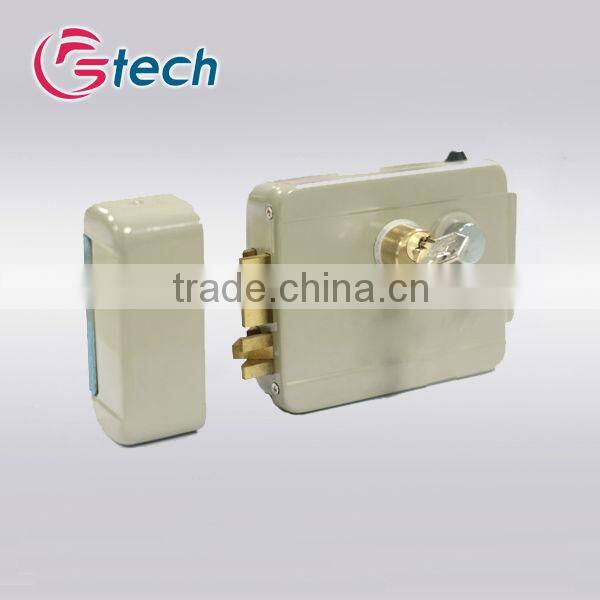

Brass Rim Locks Rim Latch Lock for Metal Door Intercom System Electric Door Lock

Specifications

Brass rim locks description:

1.Fail secure, power on to unlock

2. Electric control lock is powered by electricity, can open with keys, rotary knob open from inside

3.Low power consumption,high safety,long service life, be convenient to install

4. This electric rim lock is specifically designed  for the access control system and intercom system

5.Made of top quality metal ensure to provide durable security, reliability & safety to the user

Brass rim locks technical parameters:

Brass rim locks advantages & features:

1.High security and no power consumption in static state

2.Suitable to different kind of door

3.No necessary to identify installation directions

4.Supports video door phone and access control system

5.This electric rim door lock adopts newest patent technology,having incomparable advantages from traditional electric locks

6. Remote control gate locks is very easy to install,regardless of left and right sides

7. Elelctric rim lock can work with door closer and intercom system,lock automatically

8. Electric control lock suitable for"left open/outside","left open/inside","right open/inside"and"right open/outside".

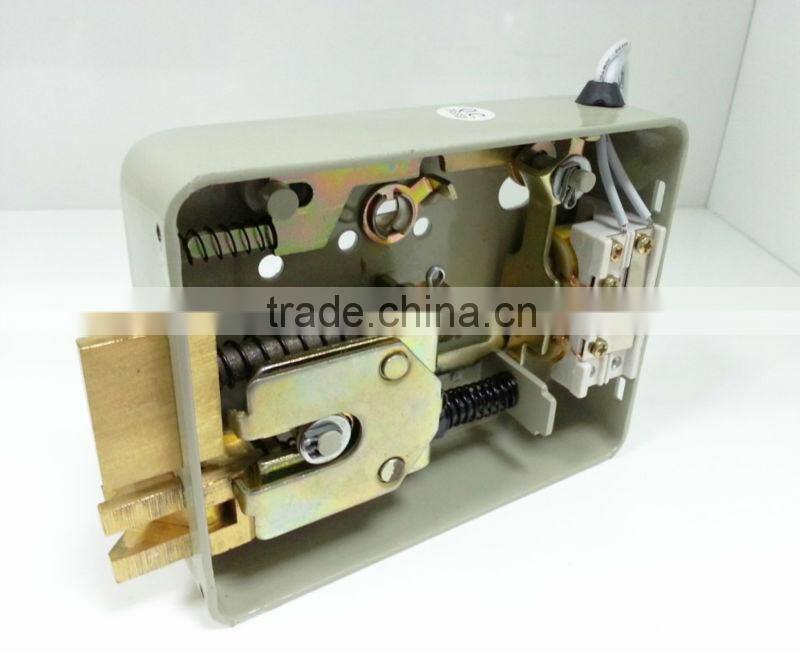

Brass rim locks details:

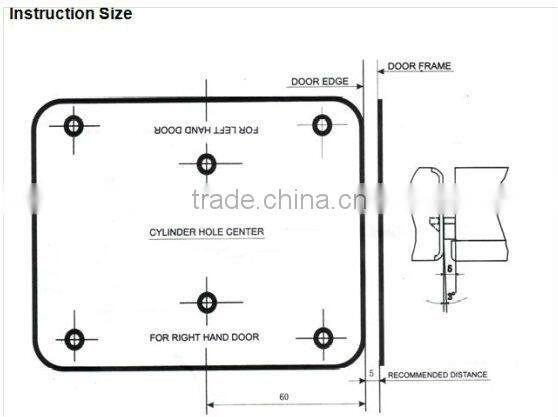

Brass rim locks installation:

Brass rim locks Operation instruction:

1.Connect two white wires of the lock with the terminals L +and L-on the calling system of building or the terminals NO and GND on the power supply case of door.

2.When the dead lock and its hook installed inversely,the lock should change from inner-opening to outer-opening.

3.In case the core does not revolve smoothly,some pencil powder should put into it to make it work normally,any lubricant is strictly prohibited being put into the core.

4.In case of loud noise during closing door or cannot locking or the pressure of closing door by hand extremely high when match with door closer,

then adjust the hex nut by #12 spanner or plier until the degree of tightness is suitable during closing and opening.

5.This lock adopt style of double lock cores which the inner core locks interior knob,both way control for exit and enter.

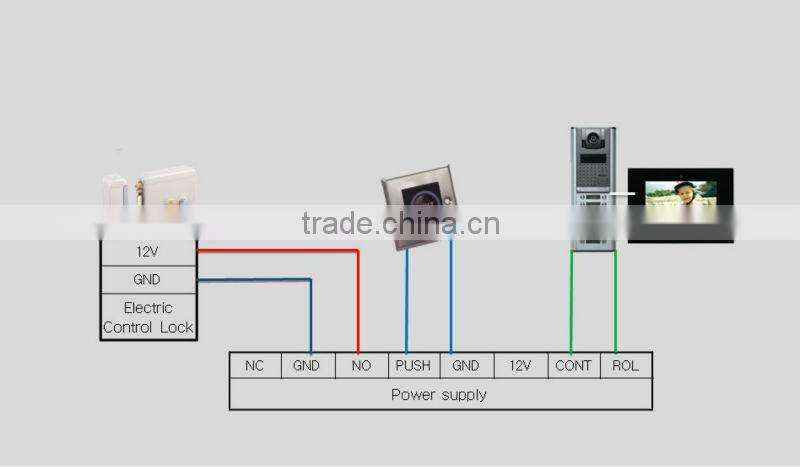

Brass rim locks installation and wiring:

Brass rim locks series:

Customer and us:

Payment:

If the total amount is less than 500USD,we prefer to accept PayPal or Western Union;for big amount we accept bank transfer.

Shipment:

Normally we will use UPS,DHL,FEDEX or EMS express.It usually takes 3-7 working days depending on the countries deliver to.

We can also arrange other shipment way per your requirement and instrution ,such as sea shipment,air shipment ,etc.

Warranty:

Warranty for one year,maintenance forever,change within 3 mounths because of product quality.
