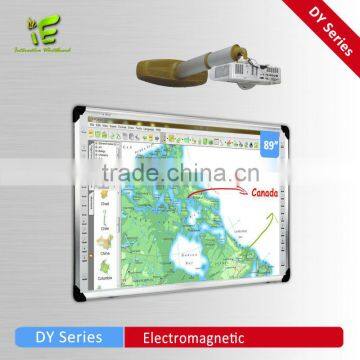

I E BOARD smart interactive electronic whiteboard for teaching aids,education supplies,smart board

Specifications

1. Introduction

HD Series of Interactive Whiteboard IEBOARD use electromagnetic induction technology. It is used to emit electromagnetic wave of a pen and the board surface is composed by the receiving coil membrane in both directions by the horizontal and vertical array. The membrane size is the same with the display area. Electromagnetic pen intermittently emits electromagnetic wave. When the pen is near the membrane of the receiving coil, the coil will be induced to the electromagnetic launchers. The nearest coil groups to the pen induce the most powerful electromotive force. According to the horizontal direction and vertical direction of the force sensor, the pens location of X, Y coordinates can be found by calculating.

2. Technical Specification

3. Product Specification

IEBOARD DS-9082HD (82 inch), Outside Dimension: 1100*1890*26(mm)

IEBOARD DS-9089HD (89 inch), Outside Dimension: 1320*1880*26(mm)

IEBOARD DS-9103HD (103 inch), Outside Dimension: 1320*2300*42 (mm)

4. Hardware Special Features

1) Screen material: Imported PET material, matt surface

2) No circuits around the board for convenient maintenance

3) Green, Environmentally friendly.

4) USB power supply

5) Convenient installation with four screws on each corner.

5. Software Special Feactures

1) Interaction functions: To use any type of computer and projector to make up interactive e-educational environment

2) Tool bars can be moved and hidden. Very few manufacturers can do this.

3) Saving functions: data save as dos, bmp, jpg, gif, png, html, pdf, ppt etc.

4) Can insert various function curves including sine, circular, triangular, etc.

5) Spin: The software can insert (picture), 360-degree rotation

6) Can play PPT files.
