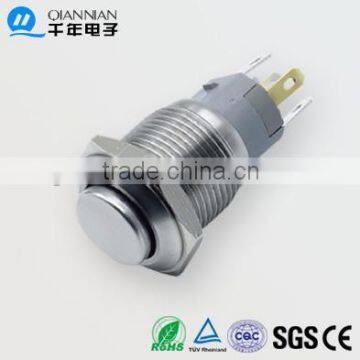

QN16-F7 16mm Momentary|Latching Elevated Head Pin terminal Waterproof metal push button switch
- Ningbo&Shanghai
- Credit Card
You May Like
-
QN19-E6 19mm Momentary/Latching Flat Head metal push button switch
-
QN19-G2 19mm Ring Type Momentary Elevated Head Pin terminal Waterproof metal push button switch
-
QN19-G4 19mm Momentary Flat Head Pin terminal Waterproof metal push button switch
-
QN19-G5 19mm Ring Type Momentary Flat Head metal push button switch
-
QN19-H1 19mm Ring Type Momentary Flat Head Screw Pin terminal Waterproof metal push button switch
-
QN19-L1 19mm Ring Type Momentary|Latching Flat Head Screw Pin terminal Waterproof metal push button switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | QN | |
| Model Number | QN16-F7 | Protection Level | IP67 | |
| Max. Current | 3A | Max. Voltage | 250v |
Product Description
title:QN16-F7 16mm Momentary|Latching Elevated Head Pin terminal Waterproof metal push button switch
They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.
| Product brand | QIANNIAN | |
| Product name | Button switch | |
| Product model | QN16-F7 | |
| Product information | Mounting hole | 16mm |
| Operation types | Momentary|Latching | |
| Head shape | Elevated Head, Pin terminal, | |
| Enclosure material | Nickel plated brass/Stainless Steel | |
| Degree of protection | IP67 IK10 | |
| Contact parameters | Switch rating | 5A/250VAC |
| Contact configuration | 1NO1NC | |
| Contact | Silver alloy,Pin terminal | |
| Other parameters | Mechanical life | 50,000cyles |
| Electrical life | 50,000cyles | |
| Terminal Type | Pin Terminal(2.8X0.5) | |
| Contact resistance | ≤50mΩ | |
| Insylation resistance | ≥1000mΩ | |
| Dielectric Strength | 2000VAC | |
| Operation Temperature | -20℃~+55℃ | |
| Panel thickness | 1~15mm | |
| nut torque | 5~14Nm | |
| Opration pressure | About3~5N | |
| Operation stroke | About2.8mm | |
| Base | PBT | |
| Packages | 50PCS/BOX | |
| Website | http://qndz.en.china.cn | |
| Official website | ||
| Product size | | |
| |
| |
1.Appearance material Brass Nickel Plated Stainless Steel Plating Color |
2.Electric material Copper plating and silver contact, better conductivity. |
3.Installation accessories Waterproof ring protection Hexagonal nut fixed IP Waterproof |
4.Connection mode Welding terminal Wiring connector |
5.Waterproof properties Waterproof test, Excellent waterproof |
Yueqing Qian Nian Electronic Co.,Ltd was founded in 2001,a technology company which is
specialized in designing and manufacturing varies types of push button switch,our company is committed
to well-known brands of companies both at home and abroad to provide first-class products and enterprises
supporting services .Company currently employs more than 160 people ,including R&D personnel and mold
production staff more than 30 people.Leading products are :Metal waterproof push button switch , metal
waterproof pilot lamp ,anti-blast switch ,and accessories.Our product are widely used in various types of
console, control box(cabinet),distribution box (cabinet),instrumentation box(cabinet),electrical apparatus,
and other industrial automation device etc.
| 1.Car modification | 2.Battery car modification | 3.Computer modified |
| 4.Car modification | 5.Battery car modification | 6.Computer modified |
1.Free sample
2.DHL,UPS,TNT,Fedex,Aramex and forwarder are accept
3.Produce and purchase all connector to satify your request
4.Accept T/T in advance, Paypal, Western Union and Escrow
5.Most product not have MOQ,orders for just one piece are welcome
6.Actual drawing,picture and part No. will assist to get a competitive price soon
7.The stock goods will be delivered within 3days,and the customized goods will be delivered within 7days
Why choose us?
Good quality, competitive price, fast delivery .
If you have any questions,please contact with us!
1.Provide free samples
2.Accept ODM/OEM
3.We can do CO, Form E F ect.
4.Terms of trade:EXW,FOB,CIF,CPT ect.
