1U rack mount VGA/ RGBHV video over fiber transmitter and receiver + audio+data

Specifications

We are your best choice for Chinese parnter

Because of 10 year experienced, 3 year warranty, professional technical service and good price

Customer design and special requirements are always welcome!

1 OVERVIEW

HC3711 digitally transmits high-resolution RGB (up to WXGA) and stereo audio over one fiber, single-mode, 1310nm wavelength. Point-to-point, point-to-multipoint and drop-and-repeat applications, it supports VGA, SVGA, XGA and WXGA (640 x 480, 1024*768, and 1280*1024, up to 1366 x 768) or RGBHV format.

2 FEATURES

# 1-ch VGA/RGBHV video signal and 1-ch stereo audio over one fiber

# 1-ch RS232 data, 1-ch switch, with the same direction (optional bidirectional transmission)

# Sampling clock phase adjustment

# Image brightness adjustment

# Image contrast adjustment

# 10-bit digital video encoded and uncompressed transmission technology

# The parameters could be saved, and also could be saved after power is turned-off

# Plug and play at any time, basically no need to be adjusted

# Automatic identification of input video format, receiver output meets industry-standard video

# Using DC-DC power conversion technology, could effectively resist environmental interference of power

# 4U rack mount, 1U rack mount and stand-alone

# Lower power consumption and free installation, Jitter

3 SPECIFICATION

4 APPLICATION (for your reference)

# Remote OB Van/Truck Video Feeds

# Broadcast Studio Camera Feeds

# Long-haul Signal Transport

# TV station/video conference

# Lecture Hall Projector Connectivity

# Medical / Surgical Room Broadcast

# Small corporate campus video links

# Building to Building video conference calling

5 SUCCESSFUL CASES (PARTIAL)

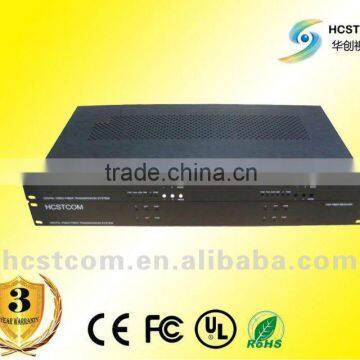

 front view and back view of product
