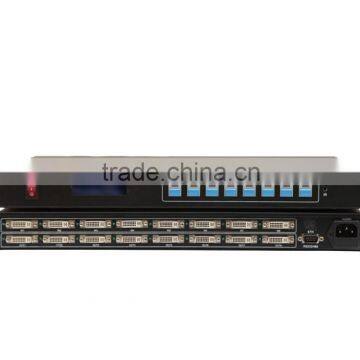

8x8 DVI matrix switcher, DVI mixed matrix

Category

HDMI Matrix Switcher

DVI video

Gain

0 dB

Pixel Bandwidth

225MHz, full digital

Interface Bandwidth

3.25Gbps, full digital

Max Supported Resolution

HDPC: 1920x1200P@ 60_24bit;

HDTV: 1920x1080P@60_36bit

Clock Jitter

<0.15 Tbit

Risetime

<0.3Tbit (20%--80%)

Falltime

<0.3Tbit (20%--80%)

Max Transmitting Delay

5nS(±1nS)

Switching Speed

200 ns Max duration

Signal Type

DVI 1.0 standard DVI-D full digital T.M.D.S signal

DVI video input

Interface

DVI-D female interface

Signal Strength

T.M.D.S +/- 0.4Vpp

Max/Min Level

T.M.D.S 2.9V/3.3V

Input EDID

EDID can be erased presently

Impedance

50Ω

The Maximum Error of The DC Bias

15mV

Suggested Max Input Distance

When it is less than20 meters and at the situation

of1920x1200@60,(it is Recommend certification of

special DVI wire, such as Molex TM's wire)

DVI video output

Interface

DVI-D female interface

Max/Min Level

T.M.D.S 2.9V/3.3V

Impedance

50Ω

Suggested Max Output Distance

When it is less than 20 meters and at the situation

of1920x1200@60, (it is Recommend certification of

Special DVI wire, such as Molex TM's wire)

RS-232 control interface

Serial control interface

RS-232, 9-pin female D-type interface

Baud rate and protocol

Baud rate: 9600, data bit:8, stop bit: 1, no parity

Structure of serial control interface

2 = TX, 3 = RX, 5 = GND

Working Environment

Power supply

100VAC~240VAC, 50/60 Hz, international adaptive power

Temperature

Storage and operating temperature: -40°~ +70°C

Humidity

Storage and operating humidity: 10% ~ 90%

MTBF

60,000 hours
