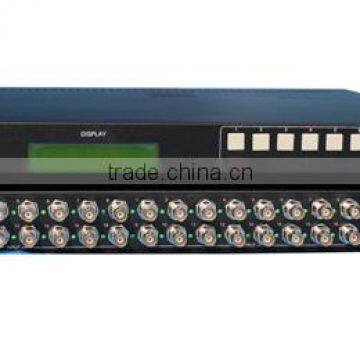

16X16 SDI matrix switcher compatible with SD SDI, ASI
- Beijing
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | hcstcom | Model Number | HC808S |
Product Description
Description
16X16 SDI matrix switcher compatible with SD SDI, ASI is a professional matrix switcher of high-performance embedded intelligent control. Our SDI is compatible with ASI which is used widely in broadcasting program transmission. It provides a stable and reliable high-definition audio and video signal transmission switching hub for the system. It is widely applied in digital video multi-screen display systems, radio and television systems, multimedia video conference, large screen display systems, high definition television teaching, visual command and control centers, medical teaching, etc
Features
- Compatible with SMPTE259M/292M/344M/424M , DVB-ASI
- Support clock recovery
- Built in self-adaptable equalize
- Power off self-protection
- High-quality, high-volume production, high compatibility and stability, and highly cost effective;
- Front panel LED shows switching status
- Switching mode: RS-232, panel buttons, NET(optional)
Rack mount design for easy installatio
Specification
Category | SDI Matrix Switcher |
SDI Video | |
Application standard | SMPTE424M,SMPTE295M,SMPTE292M,ITU-R BT.601,ITU-R BT.1120 |
Video format | 270Mbps SDI,1.485Gbps HD-SDI & 2.97Gbps 3G-SDI |
Data frequency | 19Mbps to 2.97Gbps |
Range | 0.8Vp-p±10% |
Rise/fall time | <270ps |
DC excursion | 0v±0.5v |
Overshoot | <10% |
Shift | <540ps±10% |
Min/max electricity frequency | 0.5V to 1.0Vp-p |
Max transmission range | 3G: 120m. HD: 200m SD:400m(use 75-5,128 professional video line,or 75-5 closed circuit television line, far transmit distance and low cost |
Input impedance | 75Ω |
Return loss | <-15dB, DC@1MHz to 1.5 GHz |
DC compensation | Max ±5mV |
Output impedance | 75Ω |
RS-232 control interface | |
Serial control interface | RS-232, 9-pin female D-type interface |
Baud rate and protocol | Baud rate: 9600, data bit:8, stop bit: 1, no parity |
Structure of serial control interface | 2 = TX, 3 = RX, 5 = GND |
Working Environment | |
Power supply | 100VAC~240VAC, 50/60 Hz, international adaptive power |
Temperature | Storage and operating temperature: -40°~ +70°C |
Humidity | Storage and operating humidity: 10% ~ 90% |
MTBF | 60,000 hours |
