Home > Products > T-Shirt Flatbed Printer > New Printer WER-D4880T A2 t Shirt Printing Machine Inkjet Printing Machine for Textile Printing

New Printer WER-D4880T A2 t Shirt Printing Machine Inkjet Printing Machine for Textile Printing

FOB Price

US$ 5,300 - 5,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Shanghai, China	Brand Name	WER
Model Number	WER-D4880T	Usage	Cloths Printer, Other, Cloths Printer, garment&textile printer
Automatic Grade	Automatic	Voltage	110V/220V
Gross Power	75W	Dimensions(LWH)	1.22m1.0m0.77m
Weight	140KG	Certification	CE, SGS, BV, IS09001-2000
After-sales Service Provided	Engineers available to service machinery overseas

2016 top selling printer A2 WER-D4880T direct to dark color T-shirt printer

Product Description

Model	DTG Printer A2 WER-D4880T
Max print size	420 mm * 900mm; capable for three pcs of t-shirts
Photo quality	2880 * 2880dpi
Ink type	Water based ink for T-shirt direct printing
ink channel	CMYK WWWW/ Double CMYK
Printing interface	USB 2.0 & 100 Base-T Ethernet interface
Printing Direction	Bi-directional Printing Mode
Printing speed	720 dpi 25 seconds/A4 size
	1440 dpi 50 seconds/A4 size
	2880 dpi 110 seconds/A4 size
Interface	Double USB port
Languages	English, Chinese
application	materials: cotton, fabric, polyester
Printing method	micro piezoelectric printing technology; intelligent nozzle clogging sensor system
Production capacity	500 pcs t-shirts/ 8 working hours
white ink printing for black t-shirt	T-shirt RIP for better printing
Auto adjustment function	Nozzle automatic detection; print head automatic aligning
Machine size	1200 mm * 900 mm * 650 mm
N.W.	120 kgs
Height adjustment	Auto Sensor
Normal working environment	Temperature 10 °C ~ 35 °C; Humidity 20 ~ 80 RH
Power/ Voltage	About 75W / 110V/220V 50-60HZ
Operational software	Compatible
Machine configuration	USB line; driving software; power line; instruction book; washing and ink-joiner tools
Operation system	Windows 2000 / XP / WIN7/ Vista, etc.
Media feeding system	Manual
Special remarks	Customized service is available

Products Details

	DX5 Printhead
	Instruction: DX5 Resolution: 1440DPI
	Color: 5 colors
	Print mode: 4, 6, 8, 12 Pass
	Notes:
	A: The Operator need to makeelectrostatic eliminating treatment and wear the Anti-static devices if possible to prevent the high static load from burning the circuit board inside of the printhead.
	B: During installation, try not to touch the surface of print head directly.

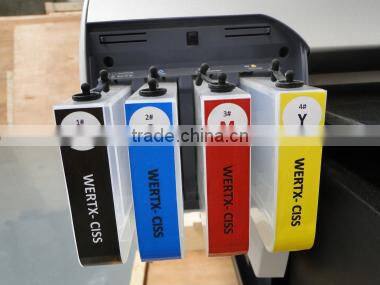

D4880T Ink Box
Ink Supply System: CISS
Color: KCMY
Feature: CISS, dustproof,keep in dark place, convenient for ink refill.
Notes:
A: when first filling ink, it will consume part of ink, please check whetherthe ink is enough in time
B: Fill the color ink corresponding with the ink labels, add to 80% of the bottleis enough.

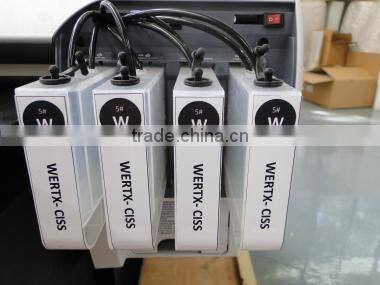

	D4880T Ink Box
	Instruction:
	Ink Supply System: CISS
	Color: WWWW
	Feature: CISS, dustproof,keep in dark place, convenient for ink refill.
	Notes:
	A: when first filling ink, it will consume part of ink, please check whetherthe ink is enough in time
	B: Fill the color ink corresponding with the ink labels, add to 80% of the bottleis enough.

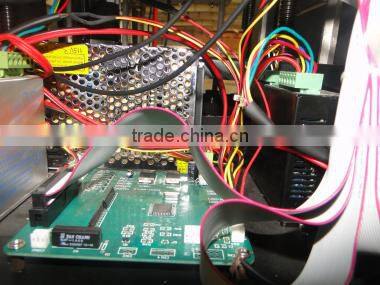

Secondary system board
Introduction: Secondary system board
Notice: Turn on the air hole when printing
Notes:
A. Please turn off the power when installation, and connect the corresponding cable.
B. special designed connector for easily assemble

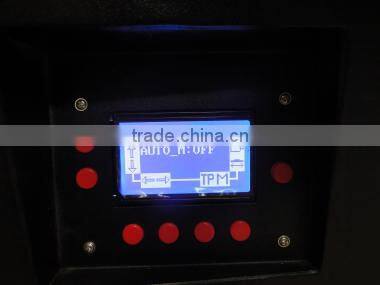

	D4880T Control Panel
	Instruction:Only need press one key online
	Feature:manual automatic dual- operate; Emergency Stop Switch
	Notes:During operation, avoid pressing the keys by wrong operation.

Application Samples

Visiting Customers
