Home > Products > T-Shirt Flatbed Printer > Hot-selling A3 WER EP2000T direct t-shirt printing machine, a3 t-shirt printing machine

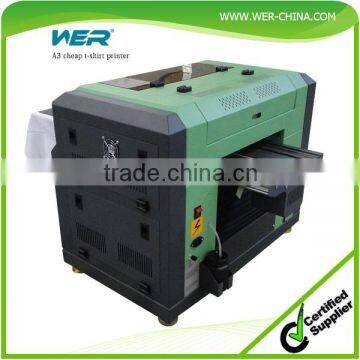

Hot-selling A3 WER EP2000T direct t-shirt printing machine, a3 t-shirt printing machine

FOB Price

USD $4,500 - $4,700 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Shanghai, China	Brand Name	WER
Model Number	WER-E2000T	Usage	Other, print various color t shirt
Automatic Grade	Automatic	Voltage	110V/220V
Gross Power	75 W	Dimensions(LWH)	1053857792mm
Weight	60 KG	Certification	CE, BV, SGS, ISO9001 - 2000
After-sales Service Provided	Engineers available to service machinery overseas

Hot-selling A3 WER EP2000T direct t-shirt printing machine, a3 t-shirt printing machine

Product Description

Model	direct t-shirt printing machine WER-E2000T
Max Printing size	329 mm * 600 mm
Max Media thickness	150 mm
Max resolution	5760 * 2880 dpi
Color	Dual CMYK / CMYK WWWW
Printing interface	USB 2.0 high speed interface & 100 Base-T Ethernet interface
Printing method	Direct printing
Printing speed for A3 size	130 Seconds with 1440 * 1440 DPI.
Auto adjustment function	Nozzle automatic detection; print head automatic aligning.
Machine size	900 mm * 680 mm * 620 mm
N.W.	60 KGS
Normal working environment	10 °C - 35 °C; humidity: 20 - 80 RH
Power/ Voltage	36W / 110V/220V 50-60HZ
Operational software	Compatible
Machine configuration	USB line; driving software; power line; instruction book; washing and ink-joiner tools
Operation system	Windows 2000 / XP / WIN7/ Vista, etc.

Products Details

	DX5 Printhead
	Instruction: Epson DX5, Resolution: 1440DPI
	Color: 5 colors
	Print mode: 4, 6, 8, 12 Pass
	Notes:
	A: The Operator need to makeelectrostatic eliminating treatment and wear the Anti-static devices if possible to prevent the high static load from burning the circuit board inside of the printhead.
	B: During installation, try not to touch the surface of print head directly.

Epson E2000T Ink Box
Instruction:Ink Supply System: CISS
Color: KCMY
Feature: CISS, dustproof,keep in dark place, convenient for ink refill.
Notes:
A: when first filling ink, it will consume part of ink, please check whetherthe ink is enough in time
B: Fill the color ink corresponding with the ink labels, add to 80% of the bottleis enough.

	Epson E2000T mainboard
	Introduction: Epson E2000T original main board
	Precautions:
	A: try to keep the air circulating while using, under dry conditions, in order to avoid too much moisture causing a short circuit board.
	B: Do not attempt to disassemble and weld the parts on the board card
	C. Check the board and cable, it must operate in case of power off.

Waste ink bottle
Function:waste ink collection
Introduction: 2.0cm ball screw

Notes:
A. Clear waste ink bottle in time.
B. Ensure the waste ink tube smooth.

	Platformpulley
	Instruction:platformpulley
	Functions:connection platform,impetus the translationalmotion
	Precautions:
	A.please do not put sundry here;
	B.please round to add lubricating oil regularly;

Application Samples
