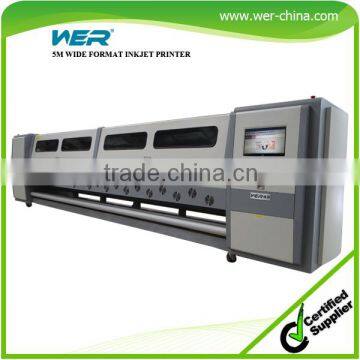

5m solvent printer with 8 PCS Seiko SPT1020 35pl and heavy duty structure 5m billboard printer

Model

5m solvent printer WER-SD5308

Print Technology

Drop-On-Demand Piezo Electric

Print Head

8 PCS Seiko/Spt1020-35pl

Print Width

5 m

Resolution

1440dpi Maximum

Printing Speed

1 Pass 250 m2/h

2 Pass 190 m2/h

3 Pass 140 m2/h

4 Pass 95 m2/h

Locating Mode

Double Servo Driver/Servo Motor

Media Width

5.2 m

Color

C M Y K

Ink Type

Solvent ink for Seiko/Spt1020-35pl

Ink

Solvent based Pigment Ink, at least two years outdoor durability

Media Handle

Roll to Roll

Media Type

PVC Vinyl, Flex banner, Carpet Paper, PVC Mesh Fabric, Perforated Vinyl, Cloth Banner, etc.

Height of Print-head

2 mm - 4 mm above media, adjustable

Interface

USB 2.0

Print Mode

Bidirectional Printing

File Format

TIFF,JPEG,Postscript 3,EPS,PDFRGB/CMYK

RIP Software

Original Maintop/Photoprint RIP software

Working Process

Maintop software, Photoprint software for Windows 2000 and Windows XP, etc.

Power Supply

50HZ/60HZ, 220V(±10%)>15A

Filtration Facility

PALL filter + Regular ink filter

Operation Environment

Temperature: 23°C ~ 29°C; Humidity: 50% ~ 80%

Packing Material

Wooden Case

Media feeding &  take-up system

Infrared Optical Controlling System for Media Feeding & Take-up

Drying system

Pre/Post and Middle heater controlled by PID

Motor

Fuji AC Servo Motor

Print head maintenance facility

Protection trays for auto purge, daily maintenance and print heads over night

Auto-cleaning system

Individual purging system & 3 way vale system

Linear Rail

HIWIN

Filtration Facility

PALL filter + Regular ink filter

Ink delivery system

Negative pressure system
