Cheap 3.2m WER ES3202 Large Format Vinyl Pvc Flex Banner Printing Machine Eco Solvent Printer for Flag

FOB Price

US$ 6,500 - 7,800 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Other, eco solvent printer
Place of Origin	Shanghai, China	Brand Name	WER
Model Number	WER-ES3202	Usage	Other, indoor poster printer
Automatic Grade	Automatic	Voltage	220V
Gross Power	2500W	Dimensions(LWH)	4200mm900mm1250mm
Weight	500KG	Certification	CE, EMC, LVD, SGS
After-sales Service Provided	Engineers available to service machinery overseas

vinyl pvc flex banner printing machine eco solvent printer for flag

Specificaion

Model		pvc flex banner printing machine WER-ES3202
Print Technology		Drop-On-Demand Piezoelectric Technology
Number of print-heads		2 pcs DX5
Nozzles		21440 & 4 4 color ( CM Y K )
Ink type		Piezo Eco solvent ink
Ink supplying system		Auto sense ink supplying system
Intelligent monitoring system		auto detecting system while lacking ink
Heating & drying	Heating system	Equipped
	Heating temperature	available: Normal temperature-25°C suggest temperature: 30°C ---40°C
	Drying system	Equipped
Media acceptable		Flex Banner, mesh, PVC vinyl, ,eco solvent based photo paper,PP paper, backlit film ,wall-paper etc.
Print width max		3200MM
Speed	Mass production mode	35 m2/h (360*1440dpi, 4pass)
	Quality mode	21 m2/h (720*1080dpi, 6pass)
	Ultra quality mode	17 m2/h (720*1440dpi, 8pass)
Print-head cleaning system		Automatic cleaning & auto capping system
Interface		USB2.0
RIP Software		Ultra print or Photo print 10th
Power supply		Ac220V 50/60Hz
Working environment		Temperature: 20°C~32°C; Humidity: 40%~60%
N.W.		500kg
G.W.		550kg
Machine dimension		4200mm900mm1250mm
Packing dimension		4500mm1000mm1550mm

contact mr. tom wang for best prices mobile and whatsapp 008618302108267 skype id wer_sales04

Products Details

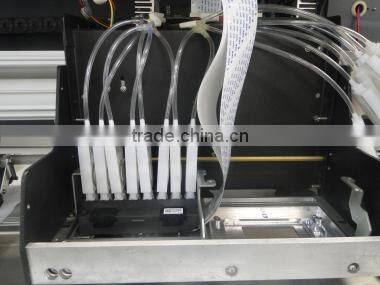

	DX5 Printhead
	Instruction: DX5 Resolution: 1440DPI
	Color: 4 colors
	Print mode: 4, 6, 8, 12 Pass
	Notes:
	A: Operators need to make antistatic treatment, please wear the Anti-static devices if permission, to prevent the high static load from burning the circuit board inside print head.
	B: During installation, try not to directly touch the surface of print head.

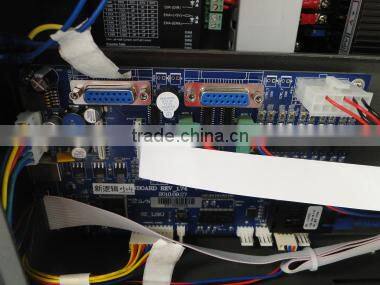

Eco solvent printer main board
Introduction: DX5 and DX7 eco solvent printer main board.
Usage: Send printing data signal, control the operations of main parts.
Notes:
A: Resist dirt and moisture for the main board.
B: Turn off the power when check the main board. Mark the plug signal line and supply line to avoid connection mistake which can burnout the main board.
C: Please do not break or weld the spare parts on the main board personally.

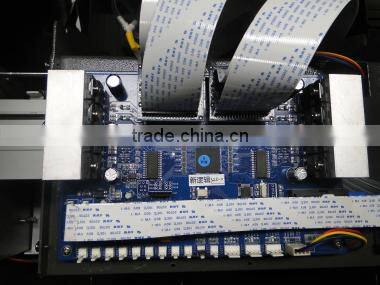

	Eco solvent printer print head board
	Introduction:
	DX5 and DX7 eco solvent printer print head board.
	Usage: Receive printing data signal and control inkjet and voltage of the print head.
	Notes:
	A:Resist dirt and moisture for the print head board.
	B: The print head cable must be inserted into the right place; otherwise it may burnout the print head.
	C: Please do not weld or dismount any spare part on the print head board personally.

Sheet feeder
Introduction: Auto-feed, keep the material tension balance, make the material pass through the print platform smoothly and do nice printing work.
Notes:
A:. When printing materials, rigidly fix the material and sheet feeder shelf.
B: Try to put the material in middle of the platform, make the material get equal force by the roller, so it can pass through the print platform smoothly.
C:Keep a clean and tidy environment surrounding the sheet feeder; do not interfere with the feeding process.

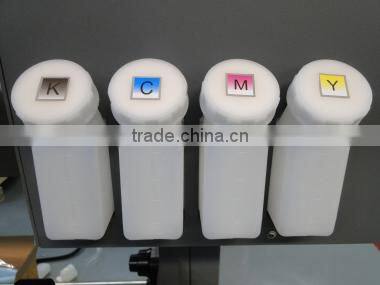

	Ink cartridge
	Introduction: 2 Liter ink cartridge, provide the ink continuously which is very convenient. Ink color is clear, so it is not easy to add the wrong color ink.
	Notes:
	A: Make sure each color ink to the corresponding ink cartridge.
	B: It is enough when the ink reaches 3/4 of the cartridge.
	C: Be careful not to dirty machine and ground when add ink; seal the lid on time after add ink.

Suction and heating device
Introduction: Automatic suction when printing which can make the print materials adsorb to the platform better, so the heater can heat and dry the printed material more evenly.
Notes:
A: Keep the suction plate clean and tidy.
B: Adjust the suction strength before printing, as well as proper heating temperature.
C: Do not touch the heating plate when printing.

Application Samples
