Home > Products > Crystal oscillator > 2.5x2.0mm SMD Crystal Oscillator (2.5V)
2.5x2.0mm SMD Crystal Oscillator (2.5V)
- Taipei
- Money Gram
You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | Ansen | |
| Model Number | ASO22C | Package Type | Surface Mount | |
| Nominal Frequency | 2-50MHz | Frequency Tolerance | +/-25~+/-50ppm | |
| Operating Temperature | -20+70C or -40+85C | Supply Voltage | 2.5V | |

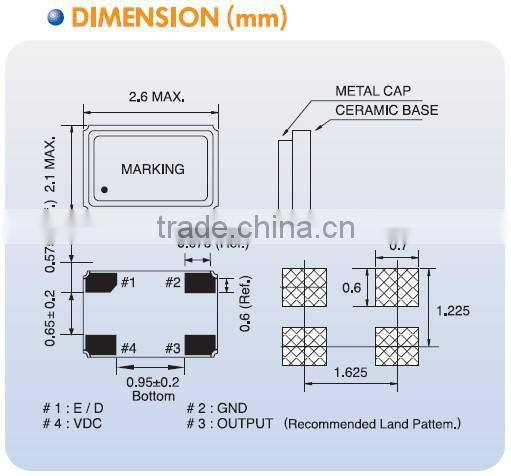

| Dimensions | 2.5x2.0mm SMD Crystal Oscillator |
Product Description

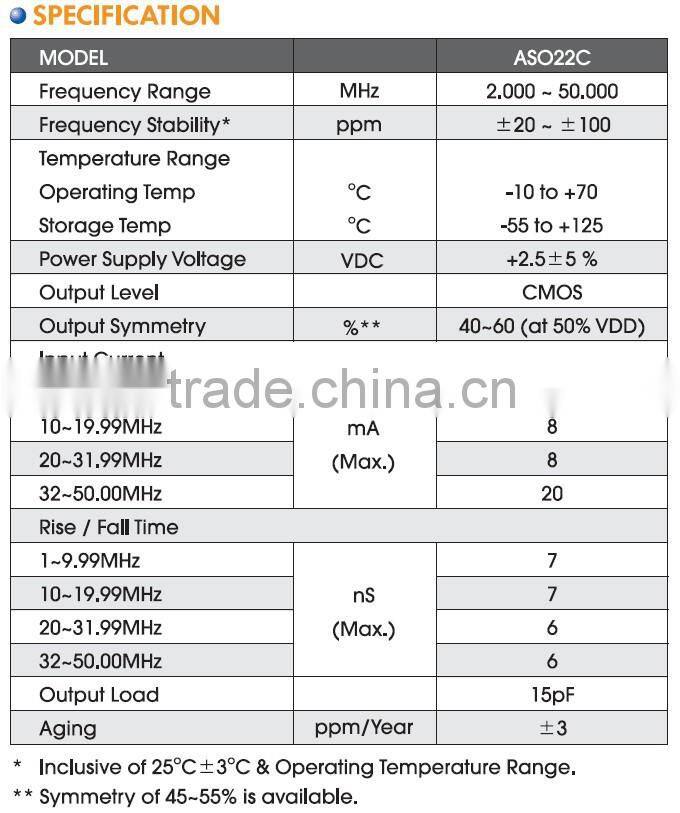

2.5V spec

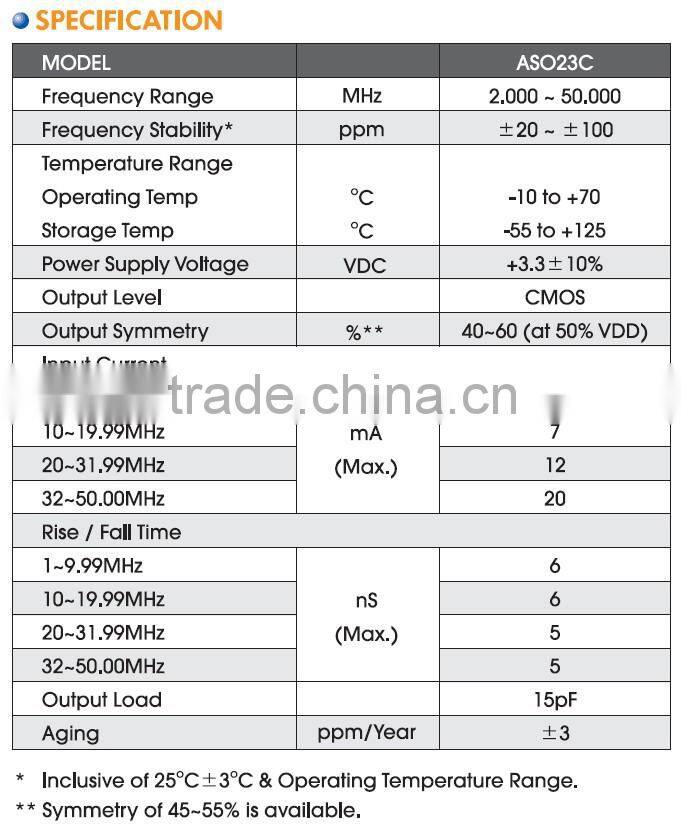

3.3V spec
Ansen Quartz is the leading supplier of crystals and oscillators in Taiwan. Our R&D department has applied the state of art technology in the field of crystal oscillator performance, precision and reliability to be in line with the top tier market trend. We offer highly precise, highly reliable frequency control and be able to provide customized products. Offering satisfactory after-sale services is also our objective. We are ISO9001 certificated, and constantly deliver the best quality products and efficient services to the worldwide customers. Ansen Quartz offers customer satisfaction.
1. SMD XTL (smallest size up to 1.6x1.2 mm)
2. SMD Oscillator (smallest size up to 2.0x1.6 mm)
3. LVDS/LVPECL Oscillator (7x5, 5x3.2, 3.2x2.5mm)
4. HCSL Oscillator (7x5, 5x3.2mm)
5. 32.768KHz Oscillator (7x5, 5x3.2, 3.2x2.5, 2.5x2.0mm)
6. LOW EMI (7x5, 5x3.2mm)
uCertifications :
1. ISO 9001:2008
2. ISO 14001:2004
3. IECQ/QC 080000:2005
4. RoHS/REACH compliant.
u Applicaton:
Any customize requirements please contact Ansen sales team for price and detail specification.
Contact Us
- Ansen Quartz Co., Ltd.
- Contact nameDawn Yen Chat Now
- Phone886-2-26578503
- Address7/F-1, No. 20, Lane 478
