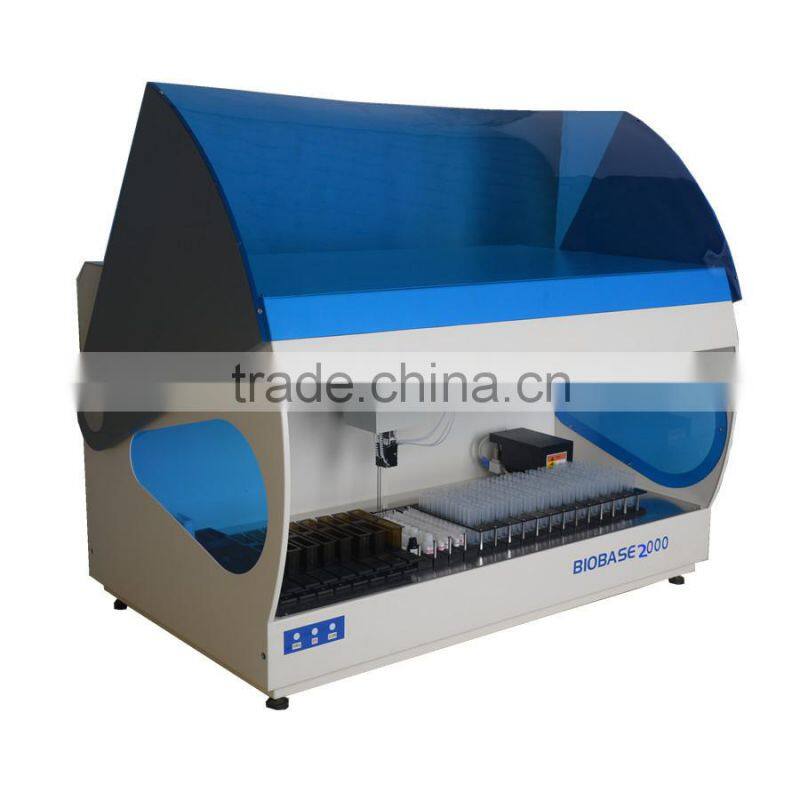

CE Certified ELISA Enzymatic Immunoassay System BIOBASE2000

Model

Biobase2000

Sample pipetting unit

Sample rack

169 sample tubes(12 mm)

Primary sample tubes

12*75mm

Pipetting

8ul~1000ul, (10ul) CV<5%

Time to dispense

15 minutes (typical)^100ul of 96 reagents to plate from sample tubes or dilution tubes.

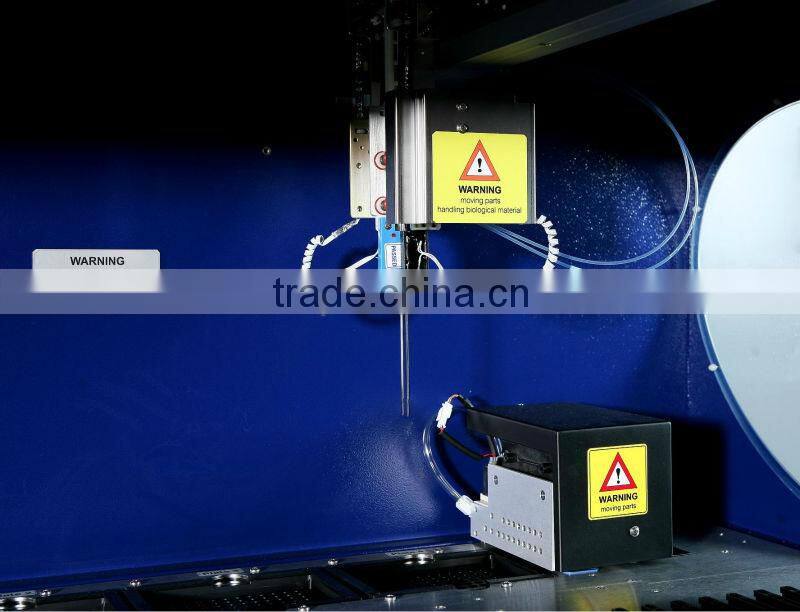

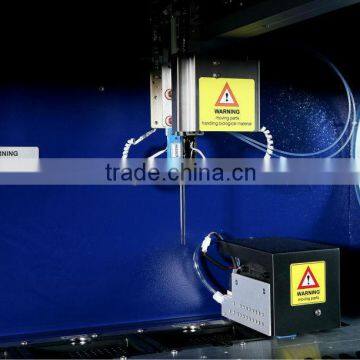

Dispensing system

1 aspirating-dispensing probe with X-Y-Z movement;dilution system with a syringe of 1000ul, continuous flow washing station.

Reagent pipetting unit

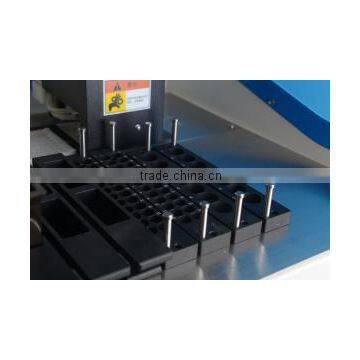

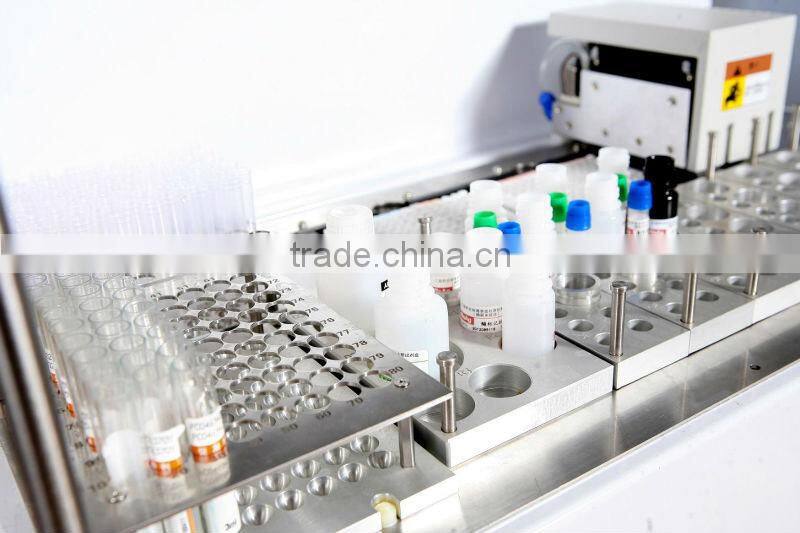

Reagent racks

10 special reagent racks,2 general reagent racks

Removable trays

modular racks to hold calibrators, controls and reagents for 10 methods on line

Pipetting

8ul~1000ul,1ul stepping,

pipetting precision

(100ul )CV≤0.2~1%

Time to dispense

2 minutes(typical)^100ul of 96 reagents to plate from reagent bottle

Washing unit

Programmable

Yes(options & parameters)

Wash containers

4 wash buffers at 2.0L, with level-sensing

Waste containers

10L with waste full sensor

Washing system

two 8 nozzle manifolds, one to dispense and the other one to aspirate;

Washing residual

<2µl

Reading unit

Reading system

8 independent photometric channels with mono and bichromatic reading capability

Photometric range

0.000 ~3.000 OD

Spectral range

400-700nm

Optical filters

2 precision filters (450and 630nm); 2 more on request (4 filters max, 400-700nm)

Reading inaccuracy

inaccuracy±1% from 0.000 to 1.500 OD, ±2% from 1.500 to 3.000 OD

Incubation unit

Incubators

4 independent units

Programmable

Yes

Temperature range

RT to 45 °C

Temperature accuracy

±0.2°C

Adjustment step size

±0.1°C

Software unit

Software system

Windows XP or Windows 7 or above, LIS system available

Function application

work list set up, patient reports and result filing; calibration curve storage for each carried out test

Data reduction

cut-off (qualitative)

Physical Specification

Dimensions

1130x750x770mm (W*D*H)

Weight

120kg

Power Supply

AC110/220V+ 10%,50/60Hz

Consumption

350W
