PLC Control System Metal Ridge Cap Roll Forming Machine

 Reference Drawings

Main specifications

Material Thickness: 0.3-0.7mm

Material Width: depends on customer requirements

Decoiler Tyoe: manual or automatic (depending on customer's requirement)

Decoiler Weight Capacity: 3 Tons

Main Motor Power: 5.5kw

Hydraulic Motor Power: 3kw

Forming Stations: approximately 13 (depending on profile drawings)

Axis Diameter: 60mm

Working Speed: 0-15m/min

Transporting Type: Chain Transmission

Heat Treatment of Cutting Blade: HRC 50-60

Type of cutting: Hydraulic cutting

Electrical Control : PLC control system with touch screen

Machine Weight: abut 3 Tons

The Chart of Process flow

Main Components

All technical parameters can be changed, according to customer's ruquirement.

Applications

Roof Ridge Cap, Ridge cap, Ridge tile, Ridge valley, Ridge flashing, Valley flashing, Top hat cap, Top ridge cap.

Certification

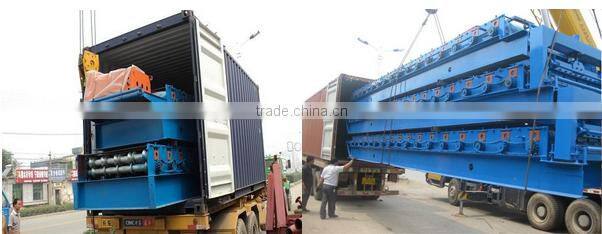

Packaging Details: PVC water proof film cover and then loading into container

Delivery Detail: 35days after down payment

1.Installing and training machine manufacturer:

1) If buyers visit our factory and check the machine will teach you how to install and use the roll forming machine for sale, and also train your face workers / technician face.
2) Without visiting, we will send user manual and video to teach you how to install and operate.
3) If the buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After the service roll forming machine for sale:

1) One year warranty for all roll forming machine sale.
2) 24-hour technical support by email or by calling
3) If there is any problem encountered profiling machinery sheet steel roof, we will repair roll forming machine for sale for free in one year.

BOTOU JINBAILI ROLL FORMING MACHINE Co., Ltd.specially in ROLL FORMING MACHINE 15 years, Main products are glazed tile machine, C Z U purlin machine,floor deck forming machine,highway guardrail machine,lighht steel keel beam machine,board forming machine.Credit Assurance.High quality low price.

We have high technological background,advanced and mature production equipment and perfect means of inspection.We not only produce different type of professional roll forming machine,but also developed intelligent automatic production line of roll forming equipment,C shape purline machine and precipitator anodde plate forming machine ect. We have developed automatic production line of roll forming machine,roof panel,wall panel forming machine series,Glazed tile roll forming machine series,Floor deck forming machine series,Highway barrier forming machine series,double deck color steel tile roll forming machine series,C,Z shaped steel purline machine series,ach camber machine series and bending machine series,insulated sandwich panel machine on the base of traditional roll forming machine ,fair frame and standard model.

We are wholeheartedly committed to quality and customer service, primarily since we want to be ranked as the "best" in our business. Quality is not just another goal; it is our basic strategy for survival and future growth.

1. Are you manufacturer?

Yes, we are manufacturer and trading company.

2. What information you need before quote me?

We need profile drawin gof the panel you want to produce, material information and your special requirements

3. What payment terms you accept?

Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.

4. Can you make machine according to my design?

Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.

5. What is the warranty for our machine?

We have one year guarantee, and provide whole life's technical support

6. Is there any spare part send for free?

Yes, pls contact us we can talk it

7.Is the machine automatic?

Yes, it can be manual and automatic
