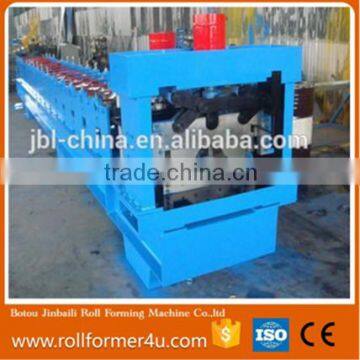

passed ISO900 and CE Ridge Cap Roll Forming Machine

No.

                        Main Parameter of ridge cap Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

700mm

3

Rollers

12 rows

4

Dimensions

5000*1350*1510mm

5

Power

5.5+4kw

6

Thickness of the plate

0.4mm

7

Productivity

15-20m/min

8

Material of the cutting blade

Cr12

9

Diameter of the roller

Φ50mm

10

Weight

About 3.6T

11

Voltage

380V 50Hz 3phases

15

Control system

PLC control

No

          Technical Specification

1

Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. Loading capacity: 5T,Inner diameter: 1000mm

2

Feeding Table

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

3

Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating

4

Hydraulic System

Control Cabinet

Power:4kw,Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use

5

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

6

Output Table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
