W Shape Highway Guardrail Cold roll forming machine from JBL with High performance color steel metal
- 15 Set / Sets per Month
- Tianjin
- T/T
You May Like
-
Corrugated sheet roll forming machine metal roof sheet
-
Corrugated sheet roll forming machine JBL new produce
-
Best quality highway guardrail roll forming machine gurad rail roll forming machine
-
automatic Corrugated sheet roll forming machine JBL from china
-
Three Wave Highway Guardrail Cold roll forming machine from JBL with High performance color steel metal
-
High efficiency and High performance color steel metal Highway Guardrail Cold roll forming machine from JBL
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Other, High Guardrail | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | KINBERYL | Model Number | Roll Forming Machine | |
| Power(W) | 4+4KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 15m*1.3m*1.4m | Weight | About 13.2T | |
| Certification | CE/ISO9001 | Warranty | 13 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Highway Guardrail Roll Forming Machine
1.Reference Drawings
We can also design Roll Forming Machine according to your specific profile drawing.
CE CERTIFICATION HIGHWAY GUARD RAIL ROLL FORMING MACHINE Equipment
We are specialized in producing W purline fast guardrail roll forming machine, including coiler machining, cold roll forming machine, automatic product line etc. We had supplied thousands of machines to domestic and foreign countries, such as environmental protection, automobile, steel, warehouse, and logistics industry.
This highway guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.
Material Thickness: 2-4mm
Forming Station: 15 excluding the feeding rollers and leveling rollers
7 Rollers leveling
Principal Axis Diameter: 100mm
Working Speed: 10-12m/min
Main Power: 30KW
Leveling Power: 2.2KW
Hydraulic Power: 15KW
Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
Gross Weight of Machine: about 18 Ton
Voltage: 380V, 3 Phase 50Hz
Main Components
Hydraulic Decoiler ------------------------------------------ 1 Unit
Leveling and Feeding Guide -------------------------------- 1 Unit
Punching Device ------------------------------------------- 1 Unit
Roll Forming Machine -------------------------------------- 1 Unit
Hydraulic Cutting ------------------------------------------ 1 Unit
Hydraulic Station ------------------------------------------ 1 Unit
PLC Contol System ---------------------------------------- 1 Unit
Runout Table ---------------------------------------------- 1 Unit
Spare Coupling -------------------------------------------- 1 Unit
The Chart of Process flow
Decoiling → feeding → Leveling → Punching Hole→ measure the length→ cutting→ receiving the plates
Products Parameters

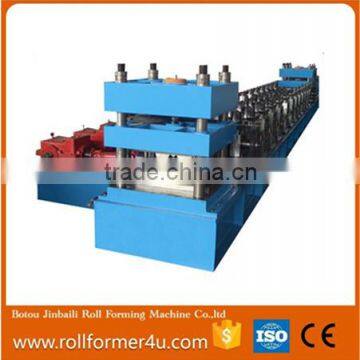

Photo of machine
Our Company is major trapezoidal roof roll forming machine manufacture based in China. Our mainly products include double level roll forming machines, trapezoidal roof forming machines, steel pipe forming mill, slitting lines and cut to length lines, etc. They are widely used in process sheet metal and form roof panels, shingle nails, glazed tiles, purlins, deck, downpipe and more, or for metal roll forming in steel shelving systems and highway guardrail systems, and so on.
For more information on our metal forming machines, or other products, we welcome you to contact us.
Verified Information By Onsite Checked
Verification Type: third-party verification service provider
Business license:
Registration No.:130981000025769
Date of Issue:2013-03-11
Date of Expiry:2033-03-10
Registered Capital:RMB 500,000
Company Name:Botou Jinbaili Roll Forming Machine Co., Ltd.
Country/Territory:China (Mainland)
Registered address:Nancang Street, Botou, Cangzhou, Hebei, China (Mainland)
Year Established:1999
Legal Representative/CEO:Jianping Huang
Legal Form:Limited Liability Company (Invested Or Controlled By Natural Persons)
Issuing Authority:Botou City Administration for Industry and Commerce
Business Type: Manufacturer, Trading Company
Operational Address: Nancang Street, Botou, Hebei, China (Mainland)
If you have any question, Please contact us on your free time
Whatsapp: +8618730742120
Wechat: jbllxx123
QQ: 1878175301
Facebook: Adela Beryl AB
Skype: bbeerryyll1
Web: /
1.Installing and training machine manufacturer:
1) If buyers visit our factory and check the machine will teach you how to install and use the roll forming machine for sale, and also train your face workers / technician face.
2) Without visiting, we will send user manual and video to teach you how to install and operate.
3) If the buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After the service roll forming machine for sale:
1) One year warranty for all roll forming machine sale.
2) 24-hour technical support by email or by calling
3) If there is any problem
We are wholeheartedly committed to quality and customer service, primarily since we want to be ranked as the "best" in our business. Quality is not just another goal; it is our basic strategy for survival and future growth.
1. Are you manufacturer?
Yes, we are manufacturer and trading company.
2. What information you need before quote me?
We need profile drawin gof the panel you want to produce, material information and your special requirements
3. What payment terms you accept?
Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4. Can you make machine according to my design?
Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
5. What is the warranty for our machine?
We have one year guarantee, and provide whole life's technical support
6. Is there any spare part send for free?
Yes, pls contact us we can talk it
7.Is the machine automatic?
Yes, it can be manual and automatic
