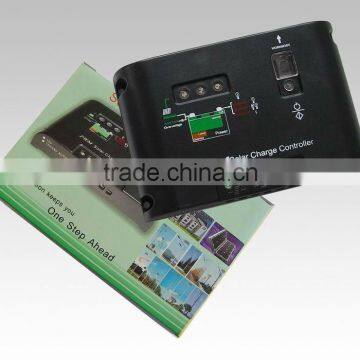

DC12/24V 10A/20A PWM 12/24/48V 30A/40//50/60/80A CE RoHS Passed solar led controller

Items

Solar Charge Controller

Model

EPRC - 10LED – W     EPRC - 20LED - W

Rated Charge Current

10A, 20A(12V/24V Auto)

Rated Load Power

10A

Rated Voltage:12V:≤50W

Rated Voltage:24V:≤100W

10A

Rated Voltage:12V:≤100W

Rated Voltage:24V:≤200W

Note:Depend on the power of LEDs

Constant power control precision

>5%

Overload, short circuit protection

1.25 times rated current 60 seconds. 1.5 times rated current 5 seconds overload protection.

System Voltage

12V/24V Auto

No-load Consumption

≤6mA

Recharge circuit reduction voltage

≤0.26V

Discharge circuit reduction voltage

≤0.15V

Overpressure protection

17V, ×2/24V

Ascending recharging voltage

1.46 V, X 2/24V, Time 10min, (only when the discharge calls)

Balanced recharging voltage

14.4 V, X 2/24V, Maintain time :10min

Floating charging

13.6 V, X 2/24V, maintain Time: (until) voltage recharge returns

Charging return volatage

13.2v; ×2/24V(ascension, straight, floating and charging returns voltage compensation),

Overcharging return volatage

12.6 V,  X 2/24V

Out of volatage

12.0V; ×2/24V;

Overdischarge voltage

11.1 V - the discharge rate consumption initial Over discharge voltage (no-load voltage), X 2/24V

Temperature compensation

-5mv/°C/2V

Working temperature

Industry-specific:-35°C~55°C(suffix I)

Control Type

Charging: PWMpulse width modulation, Output: Constant power

Function

Timer and light controlled

Fit for

Solar Home System,Solar Energy system,Solar Light, Solar Garden Light, Solar Power Supply, etc.

Warranty

One-year quality warranty
