Home > Products > Schottky Barrier Rectifiers > Schottky Barrier Diode SS210

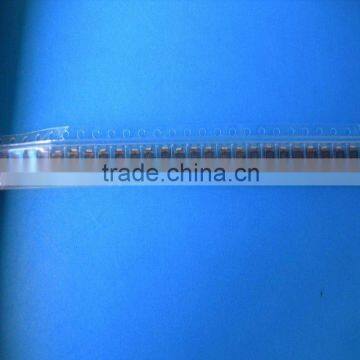

Schottky Barrier Diode SS210
Negotiable
/ Piece
1000 Pieces(Min. Order)
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | BX.PY | |
| Model Number | SS26 | Type | Schottky Diode | |
| Package Type | Surface Mount | Max. Forward Voltage | . | |
| Max. Reverse Voltage | 100V | Max. Forward Current | 2.0A | |
| Max. Reverse Current | . |
Product Description
Specifications
Schottky Barrier Diode SS2101. High current capability
2. Low forward voltage drop
3. Low power loss, high efficiency
Schottky Barrier Diode SS210
FEATURE:
- High current capability
- Low forward voltage drop
- Low power loss, high efficiency
- High surge capability
- Idea for automated placement
- Guardring for overvoltage protection
- Meet MSL level 1, per J-STD-020, LF Maxinum peak of 260°C
- Solder dip 260°C, 40s
- Component in accordance in RoHS 2002/95/EC and WEEE 2002/96/EC
TYPICAL APPLICATION
For use in low voltage frequence inverters freewheeling dc-to-dc converters, and polarity protection applications
MECHANICAL DATA:
- Case: DO-214AA( SMB)
- Epoxy meets UL94V-0 flammability rating
- Terminals mette tin plated leads, soderable per J-STD-002and JESD-BI02
- E3 suffix for consumer grade meets JESD 201 class 1A whisker test, HE3 suffix for high reliablity grade ( AEC QC01 qualified), meets JESD 201 class 2 whisker test
- Polarity: Color band denotes cathode end
