Product Details
Condition | New | Automatic Grade | Automatic | |
Power(W) | 1.5Kw | Rendering Thickness | 2 mm | |
Rendering Height | 5 m | Place of Origin | Shandong, China | |
Brand Name | SINOMAX | Model Number | MH800 MH1000 | |
Dimension(L*W*H) | 1000/1150*830*680mm | Weight | 80-170Kgs | |
Certification | ISO CE | Warranty | 12 months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Factory Price Wholesale! MH Series Wall Mortar Automatic Rendering Machines, Plastering Machines for sale in China

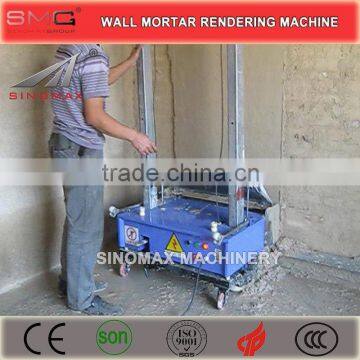

1. Introduction to SINOMAX MH series mortar rendering machine
The mortar rendering machines are also called mortar plastering machine, mortar leveling machine, mortar plaster machine etc. It is fully automatic rendering with perfect smooth rendering surface, no need manual leveling jobs. It saves labor cost, materials and time widely used for brick wall, cement wall, internal wall, house, workshop, house, building, skyscraper projects.
2. Technical Data of SINOMAX MH series mortar rendering machine
ITEM | UNIT | MODEL | |||
MH800-R | MH1000-R | MH800-G | MH1000-G | ||
Rendering height | m | Standard 3.5 (Up to 5) | Standard 3.5 (Up to 5) | Standard 3.5 (Up to 5) | Standard 3.5 (Up to 5) |
Rendering width | mm | 800 | 1000 | 800 | 1000 |
Rendering thickness | mm | 2-30 | 2-30 | 2-30 | 2-30 |
Rendering speed | m2/h | 30-60 | 40-80 | 30-60 | 40-80 |
Voltage | V | 380/220 (Customized) | 380/220 (Customized) | 380/220 (Customized) | 380/220 (Customized) |
Lifting mode | - | By steel wire rope | By steel wire rope | By gear rack | By gear rack |
Main motor power | Kw | 1.5 | 1.5 | 1.5 | 1.5 |
Vibrating motor power | Kw | 2*0.03 | 3*0.03 | 2*0.03 | 3*0.03 |
Parts weight | Kg | 50 | 60 | 80 | 90 |
Machine weight | Kg | 80 | 100 | 150 | 170 |
Outer dimension | mm | 1000×830×680 | 1150×830×680 | 1000×830×680 | 1150×830×680 |
3. Application
Brick Wall, Block Wall, Cement Wall, Internal Wall, House, Building, Skyscraper, Villa, Etc.
4. Applied materials
Cement, Gypsum, Lime, Ready Mix, Perlite, General Mortar, Insulation Mortar, Clay Mortar Or Similar Materials.
5. Comparison between machine and manual rendering.
Comparison | Rendering Machine | Manual Rendering |
Speed/8h | 500-750m2 | less than 50m2 |
Finishing | smooth & flat with mirror finishing. | always reveal crack, bubbles, etc. |
Coating | Once coating while render up and smooth down | several times coating by numberless trowels |
Procedures | Automatic by machine | adjust leveling by square bar again and again |
Extra supporting | electricity | scaffolding, mop, trowel, square bar, lots of extra tools |
Labor Intensity | two workers. | a lot more. Hard work. |
Time Consumption | saving 70% - 80% time | long time work |
TERMS OF PAYMENT | 30%TT as prepayment, 70%TT or irrevocable LC at sight before shipment. |
DELIVERY TIME | 3-7 days after receipt of prepayment or irrevocable LC at sight. |
PACKAGE | In two seaworthy plywood boxes |
CONTAINER NEEDED | One 20’GP for 25 units or by LCL |
1. Free training course in China, including engineering lecture, operation instruction and practices.
2. Engineers sent to your construction sites for operation, maintenance training on site.
SINOMAX Machinery, is a professional manufacturer and exporter specializing in production, R&D, quality control and exporting for nearly 20 years. Belonging to SMG and located in the industrial zone of beautiful coastal city, Qingdao, in Shandong Province, with convenient transportation near to the airport and seaport.
Our products mainly include concrete machinery, construction machinery and materials such as concrete placing boom, concrete boom pump truck, concrete batching plant, concrete mixer, concrete pump, mortar rendering machine, mortar plastering machine, block machine and so on. We have exported to more than 60 countries and regions with excellent quality, such as Southeast Asia, South America, Africa, Oceania and Eastern Europe.
Q:How many kinds of rendering machines, plastering machines you have?
A: We mainly have 3 series which are more popular and practical for actual application in kinds of projects.
1. MH series automatic rendering machines, automatic leveling, no need manual leveling.
2. N2Semi-automatic plastering machines for wet mortar spraying with spraying gun, air compressor, more efficient than MH series but need manual leveling.
3. N9 Fully automatic plastering machines for dry mortar spraying with mixer, spraying gun, air compressor, more efficient than MH series but need manual leveling.
Q: What about the rendering width and height for MH series automatic rendering machines?
A: Most popular and practical rendering width is 800mm and 1000mm, rendering height is 3.5m. But we can make it customized for rendering width 900mm, 1100mm, 1200mm, 1500mm and rendering height 4m, 4.5m 5m to meet special projects’ requirements.
Q: How about the lifting method?
A: Two lifting methods, by steel wire rope or gear rack, for your choice. By gear rack has better performance, more smooth and vertical for rendering. Usually, it is painted for steel wire rope models and stainless steel for gear rack models.
Q: How can we do if parts are damaged?
A: Each machine will be with one set of wearable parts for free for nearly one year use. When needed, we can also deliver parts by courier.
Q: Is engineer available for oversea service?
A: This machine is very easy to operate and maintain with help of manual book, if engineer needed, our engineers team for oversea service are standing by for flying to your site, some could even speak English.
.Q: We know your machines are very popular, is it possible that we want to be your dealer or exclusive agent?
A: We hope to be good friends and partners with you. Please email us for dealer or agent win-win cooperation.
