135gsm uhmwpe material fabric
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | excellent | |
| Model Number | UD-01 |
Product Description

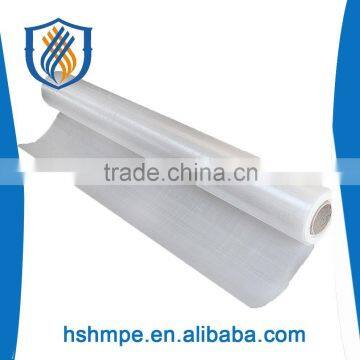

ud fabric:
1.0.1mm thickness,1.2m width,110m length in roll
2.weight:130gsm
3.two UD layers
4.56 Rifle/54 pistol
UHMWPE UD bulletproof fabrics are made of UHMWPE fiber, The UHMWPE fibers are consisted of four unidirectional arranged fiber webs which overlapped by 90°each other and laminated with special matrix materials.
The UHMWPE bulletproof UD fabric can be used for bulletproof jackets and helmets and boards in the Polices and military fields ,There are 4 fiber layers and 2 films faces(double longitude and latitude ).
Please see the details about 185gsm as following:
Type | Product Name | Fabric Structure | Area density (gsm) | Sizes | MOQ (sq.m) | Potective Grade | Layers QTY | Note |
UD-01 | UHMWPE UD Bulletproof Fabric | 2 layers | 135±5 | Thickness: 0.1mm | 1000 | Defence 56 Rifle | 22kg/sq.m | they are used for helmets,plates,boards and shields. |
overlapped by 90° each other and laminated | Width: 1.2m | |||||||
Length:110m continue in roll | Defence 54 pistol | 1.45kg/helmet | ||||||
UD-02 | UHMWPE UD Bulletproof Fabric | 2 layers | 140±5 | Thickness: 0.12mm | 1000 | NIJ IIIA 9mm | 34 | they are used for bulletproof jackets or vests in polices and public security fields |
overlapped by 90° each other and laminated | Width: 1.2m | |||||||
Length:110m continue in roll | NIJ IIIA .44 | 42 | ||||||
UD-03 | UHMWPE UD Bulletproof Fabric | 4 layers overlapped by 90° each other and laminated | 185±5 | Thickness: 0.16mm | 1000 | NIJ IIIA 9mm | 26 | they are used for military fields which need high requests |
Width: 1.2m | ||||||||
Length:110m continue in roll | NIJ IIIA .44 | 33 |
Note: width: 1.2m(max.1.25m, effective width 1.2m) length: continuous in roll(around 110m per roll)
They can be used for police and safety protection and Light soft body armor as the following pictures,Please also see the picture of them with packages:
