Home > Products > Metal Structure Frame Components > Factory Price Galvanzied Light Steel Frame for Partition AZ80g

Factory Price Galvanzied Light Steel Frame for Partition AZ80g

FOB Price

US$ 200 - 300 / Ton

25 Tons(Min. Order)

Port Tianjing port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	JLSRA
Model Number	JLSRA-3240		Material	Other, Galvanized Sheet, Galvanized Sheet,galvanized sheet

Product Description

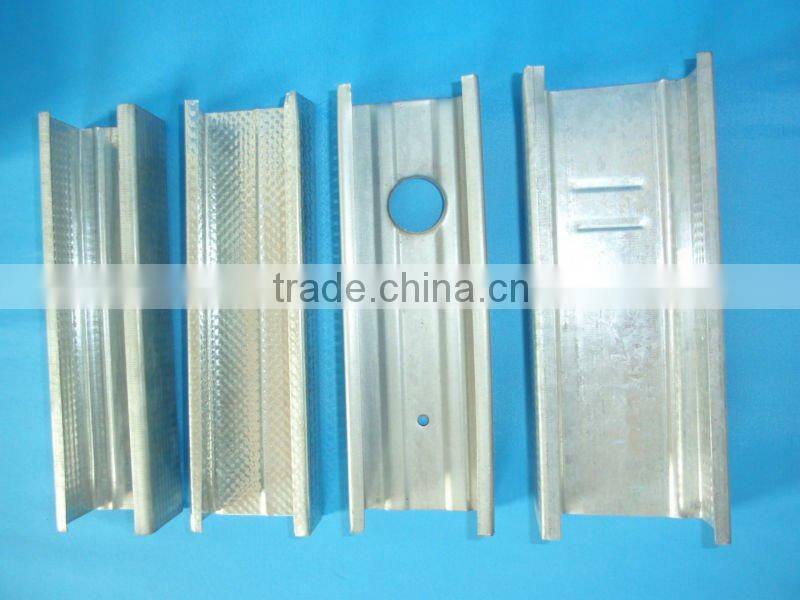

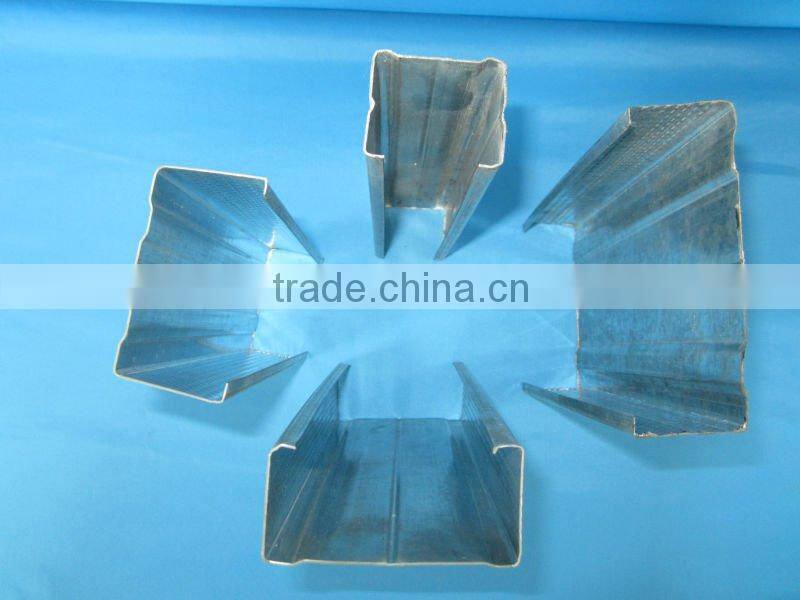

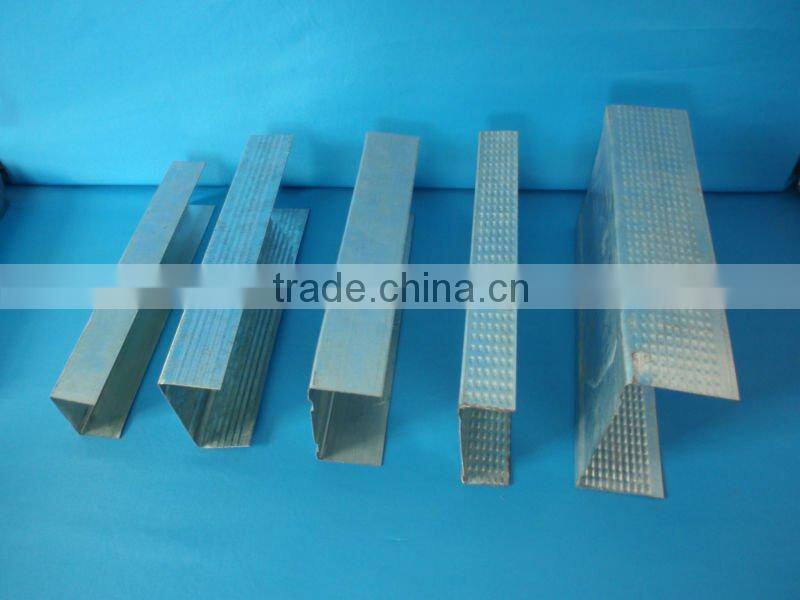

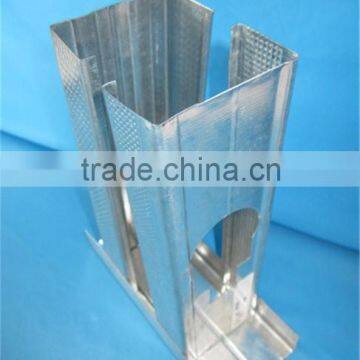

Factory price galvanzied light steel frame for partition AZ80g

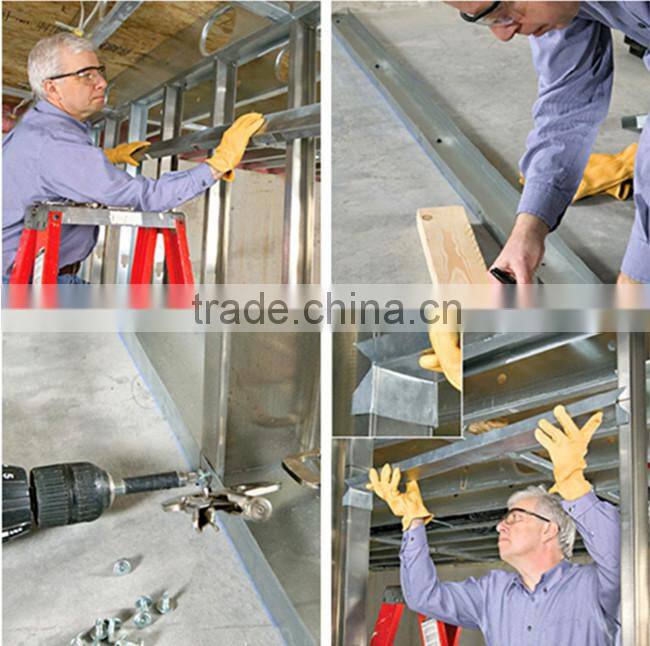

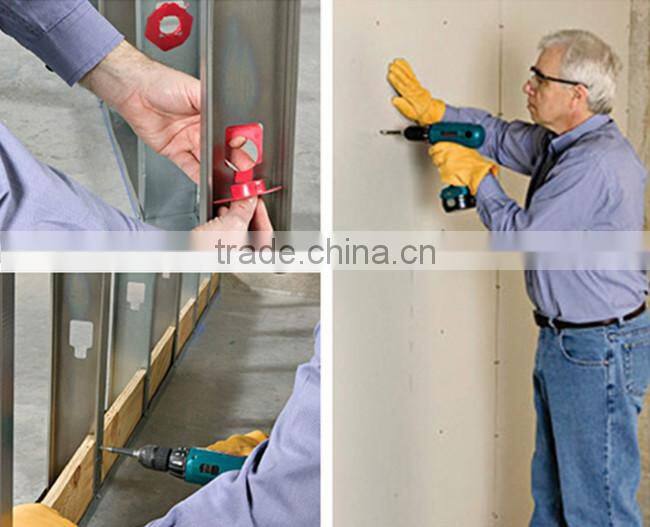

Assembly drawing

Specification description

Item	Description	Width(mm)	Hight1 (mm)	Hight2 (mm)	Thickness (mm)	Length
	wall stud	41,44,48,50,51,60, 64,70,75, 76,92,100. hight from 25mm to 50mm.	22	22	0.3~ 0.6mm	3000mm, 3660mm
			23	23	0.3~ 0.6mm
			24	24	0.3~ 0.6mm
			30	30	0.4~0.6mm
			32	32	0.4~ 0.6mm
			33.5	35.5	0.3~ 1.2mm
			35	35	0.45~0.8mm
			40	40	0.45~0.7mm
			50	50	0.5~ 0.8mm
	track	41,50,52,64,66,70, 75,76,92,93,100. hight from 25mm to 50mm.	25	25	0.35~0.6mm
			28	28	0.3~ 1.2mm
			32	32	0.3~ 1.2mm
			40	40	0.5~ 0.8mm

Relevant specification for each market

1)Specification of South America market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	41*32	0.4--1	3050
	64*32
	76*32
	92*32
	92*41
	100*35
Track	41*25--40	0.4--1	3050
	64*25--40
	76*25--40
	92*25--40
	100*25--40
Corner bead	32*32	0.3--0.5	3050
Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Main channel	38*12	0.4--0.8	3660 or any other length
Main channel	37*20
Furring channel	583416
	643222
	47*17
	522515

2)Specification of Malaysia market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
U channel	41*23	0.3-0.5	2440, 2740, 3050
	44*22
	48*22
	50*23
	75*24

Roof and Ceiling
Component name	Specificaion (mm)	Thickness (mm)	Length (mm)
C section	753436	0.7--1	3660--5800
	100*50
B batten	583523	0.5--0.8	3660-5800
	653226
	843032
Furring Channel	30*9	0.25-0.3	3660
	34*11

3)Specification of Middle East market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*35/40	0.5--1	3000
	70*32/35
	75*35/40
	100*35
Track	50*25--50	0.5--1	3000
	70*25--50
	100*25---50
Ceiling
Component name	Spceification (mm)	Thickness (mm)	Length (mm)
Main channel	38*10--12	0.38--0.5	3000
Furring channel	643222
	703522
	804822	0.7	4000

4)Specification of Eastern Europe market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*50	0.3--0.7	3000
	75*50
	100*50
Track	50*25--50
	75*25--50
	100*25--50
Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Furring channel	60*27	0.5--0.7	3000
Wall angle / Track	28*27	0.5--0.7	3000

5)Specification of Myanmar market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	75x35	0.4--0.6	2900
	65x32
Track	76x25
	66x25
Roof and Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
C sectionC section	75x34x36	0.7--1.5	5800
	100x50x50
B Batten	64x24x24	0.4--0.6	5800
	65x32x26
Furring channel / C-line	35x12	0.3--0.5	3960
Main channel	18x28	0.5--0.8	3050
Furring channel	50x17	0.4-0.5

6)Specification of Thailand market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	75x35	0.4--0.55	2400, 3000
	65x32
Track	76x25
	66x25
Roof and Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
C section	75x34x36	0.7-1.5	6000
	100x50x50
B batten	65x25x26.5	0.4-0.6
	65x32x26
Furring channel / C-line	35x12	0.3-0.5	4000

7)Specification of Philippines market

Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*32	0.4--0.8	3000
	64*32
	75*35
	92*35
	100*35
Track	50*25--50	0.4--0.8	3000
	64*25--50
	75*25--50
	92*25--50
	100*25--50
Roof and Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
C section	100*50	0.7--1.5	3000
C section	150*50	0.7--1.5	3000
Main channel	38*12	0.5--0.8	3000
Furring channel	50*19	0.4--0.5	3000

8)Specification of Australia market

*All Australia products wil be made by G550 galvanized sheet with zinc coating 275g/m²*
Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	51x33.5x35.5	0.5--0.75	2700,3000
	64x33.5x35.5		3600,4200
	76x33.5x35.5		4800,6000
	92x33.5x35.5
Track	52x32/28	0.5--0.75	3000
	65x32/28
	77x32/28
	93x32/28
MPW 10 H Stud	12.5X40	0.3-0.5	3000-6000
MPW 10 H Stud	25X35
MPW 10 U Kap	15X25
MPW 10 π Track	55X25
V-angle bead	30X30
L -angle bead	30X6
L-angle bead	30X10
L -angle bead	30X13
L -angle bead	30X16
J -angle bead	30X10X13
Z -angle bead	30X10X10
Z -angle bead	30X10X6
Roof and Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Main channel	25x21	0.75	3600,4800,6000
Furring channel	51x38x28	0.5	2700,3000,3600,4800,6000
Furring channel	51x38x16	0.5	2700,3000,3600,4800,6000
C channel	36x16	0.45	3000,3600
Wall angle	35x16x13	0.5	3000
Wall angle	35x28x20	0.5	3000
B batten	94x42x40	0.55/0.75	4800,6000

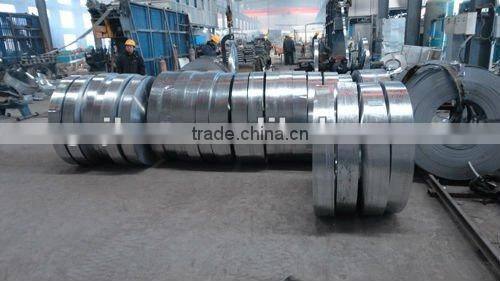

Steel coils

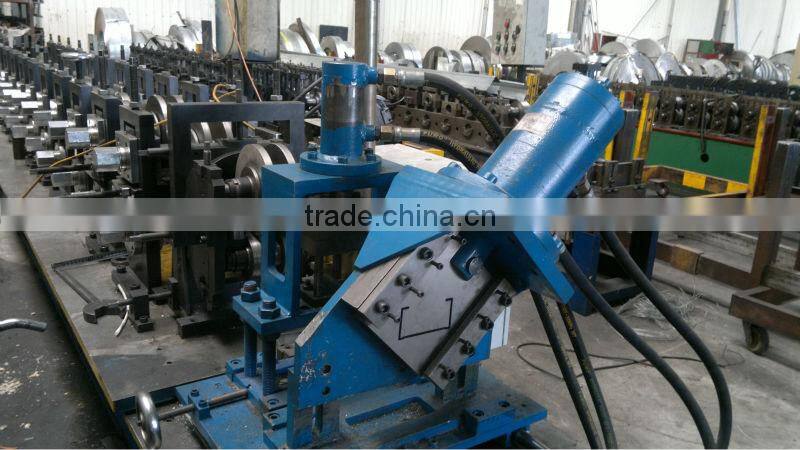

Machine

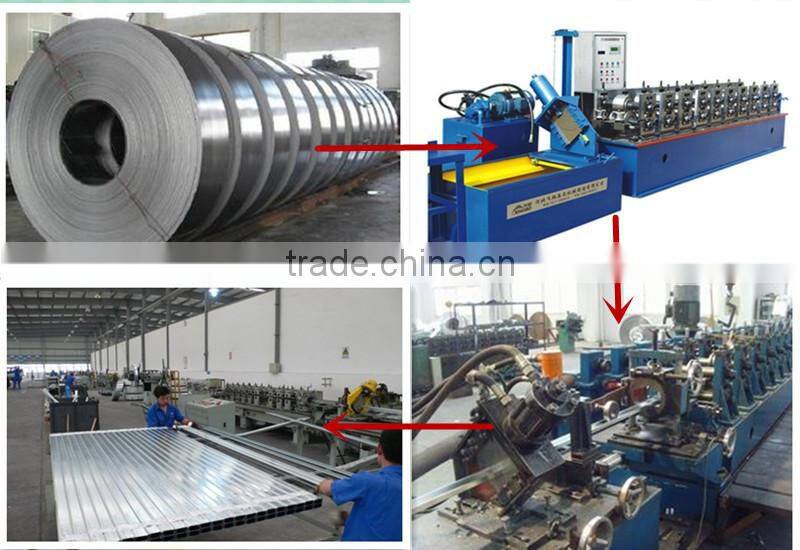

Production lines

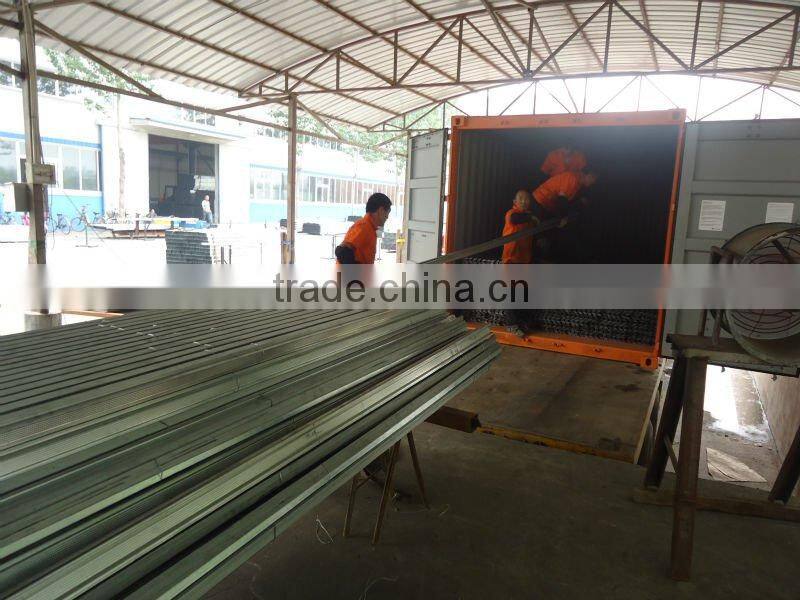

Loading

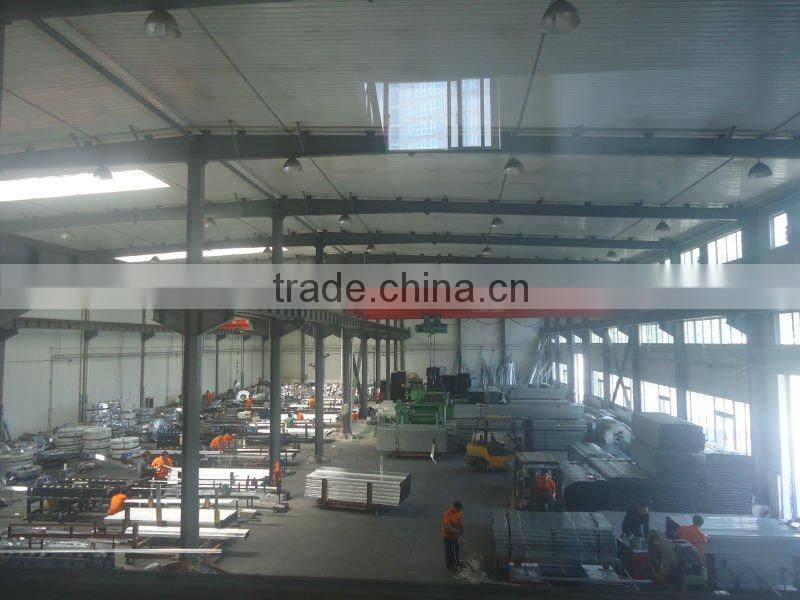

Factory

Sales office

Customer pictures

Certificates

Our Advantages:

(1). Design according to customers’ requirements

(2). Manufacture under complete quality control system---ISO9001

(3). Installation with instruction of experienced engineers

(4). Easy to assemble and dismantle

(5). Eco-friendly material: can be used for several times and can be recycled

(6). Shorter construction period, longer using time

(7). High strength and stiffness, high weight bearing.

If you are interested in our products, pls feel free to contact us.

Guangzhou JIANLI NEW TYPE PARTITION CO.,ltd

Tel: +86-20-8746-8918

Fax: +86-20-8746-9339

Skype: +86-156-2270-9783

Web:

Office add: B402, NO.8 KESHENG ROAD, PRIUITAL HIGH-TECH INDUSTRY ZONE, BAIYUN DISTRICT, GUANGZHOU CITY (510540), CHINA
