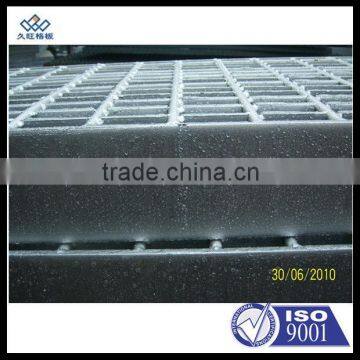

galvanized heavy duty steel grating panels
- xingang
- T/T
You May Like
-
heavy duty galvanized steel grating for sale
-
car parking lot grating-heavy duty steel grating-parking lot grate
-
galvanized i bar metal gratings from hebei jiuwang
-
heavy duty grating for drainage/heavy load grating for sewer(20years professional manufacturer)
-
car washing station drainage grating
-
steel grating for car washing station drainage
Product Details
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Grade | Q235 | |
| Dimensions | DG | Place of Origin | Hebei, China | |
| Brand Name | JW | Model Number | DG326/30/100 | |
| Type | Heavy | Application | Steel Structure Platform |
Product Description
Heavy Duty Steel Grating
1.Steel Grating
LOAD BAR SIZE (mm) | MAINTENACE FLOORS NO PUBLIC USE UDL=2.5KPa | PEDESTRIAN TRAFFIC PUBLIC, RESIDENTIAL AND LIGHT USE UDL=3KPa | PEDESTRIAN TRAFFIC PUBLIC, OMMERCIAL AND CROWD USE UDL=4KPa | |||||||
Deflection=5mm | Deflection=5mm | Deflection=5mm |
| |||||||
| Bearing bar pitch(mm) | Bearing bar pitch(mm) | Bearing bar pitch(mm) |
| ||||||
| 30 | 40 | 60 | 30 | 40 | 60 | 30 | 40 | 60 |
|
20X3 | 1190 | 1110 | 1000 | 1140 | 1060 | 960 | 1060 | 980 | 890 |
|
25X3 | 1410 | 1310 | 1180 | 1350 | 1250 | 1130 | 1250 | 1170 | 1050 |
|
32X3 | 1700 | 1580 | 1430 | 1620 | 1510 | 1360 | 1510 | 1400 | 1270 |
|
40X3 | 2010 | 1870 | 1690 | 1920 | 1780 | 1610 | 1780 | 1660 | 1500 |
|
20X5 | 1350 | 1260 | 1140 | 1290 | 1200 | 1090 | 1200 | 1120 | 1010 |
|
25X5 | 1600 | 1490 | 1350 | 1530 | 1420 | 1290 | 1420 | 1320 | 1200 |
|
32X5 | 1930 | 1790 | 1620 | 1840 | 1710 | 1550 | 1710 | 1590 | 1440 |
|
40X5 | 2280 | 2120 | 1920 | 2180 | 2030 | 1830 | 2030 | 1890 | 1700 |
|
