Home > Products > Spot projection welding machine > Foot Type AC Spot Welding Machine Portable Welding Machine
Foot Type AC Spot Welding Machine Portable Welding Machine
- Guangzhou Shenzhen
- T/T Credit Card
You May Like
-
AC Water-Cooling Spot Welding Machine Automatic Spot Welding Machine Resistance Welding Machinery Supplier
-
Long Arm Pneumatic Spot Welding Machine (factory)
-
for Welding Usage Welding Foot Control Pedal Spot Welding Machine
-
DN40QY2 Stationary Type and Projection Spot Welding Machine
-
Rolling Machine for 1500mm Width Sheet Rolling Bending Machinery
-
Resistance Rolling Seam Welding Machine
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | FUDA | Model Number | DNK-25D | |
| Rated Capacity | 25KVA | Rated Duty Cycle | 20% | |
| Max. Welding Thickness | 2,5mm+2,5mm low carbon steel sheet | Dimensions | 110*55*120cm | |
| Weight | 150kg | Usage | hardwares, furniture, wire mesh welding | |
| Voltage | 380V, 50Hz, 2 phase | Power(W) | 25KW | |
| Certification | CCC, CQC | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

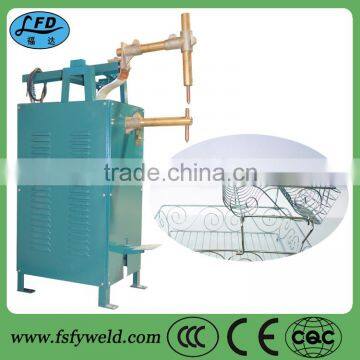

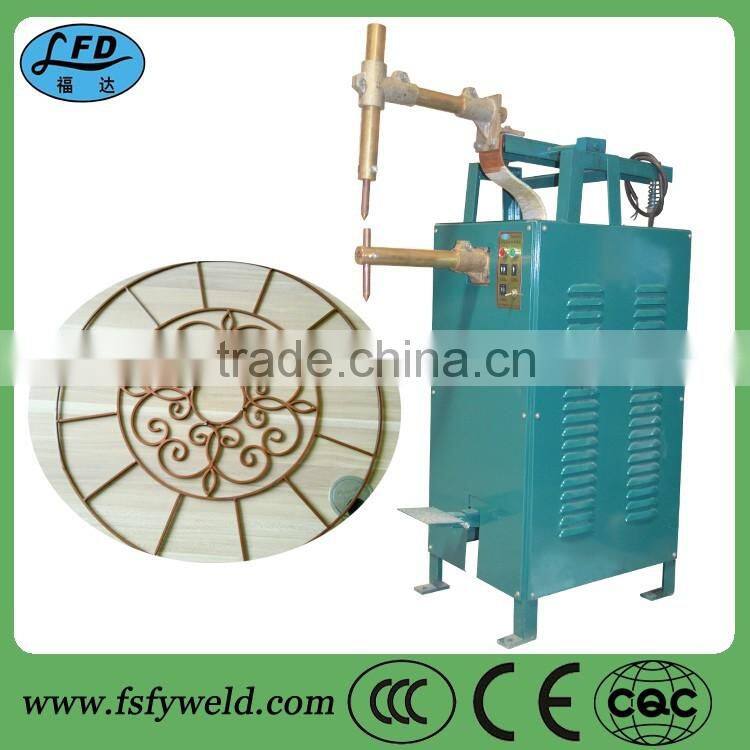

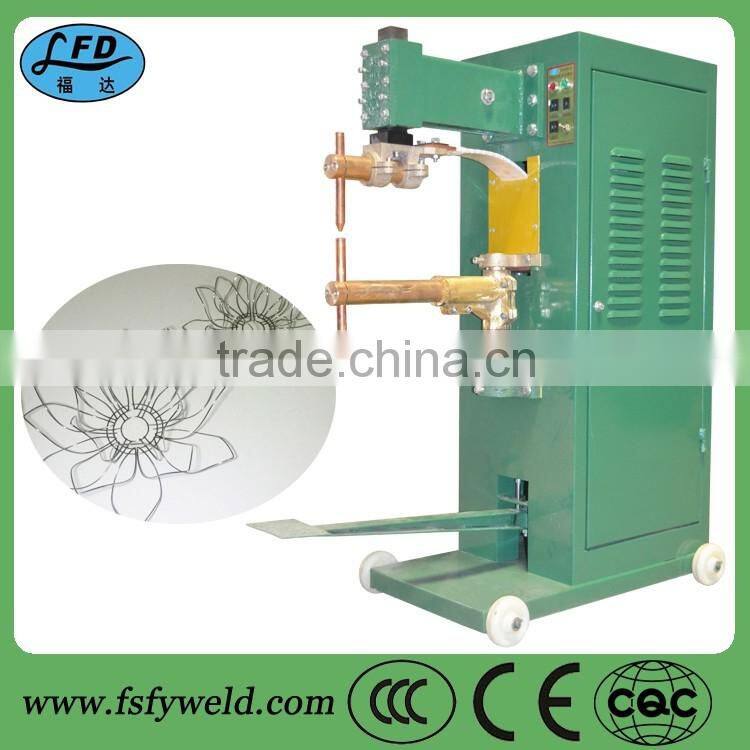

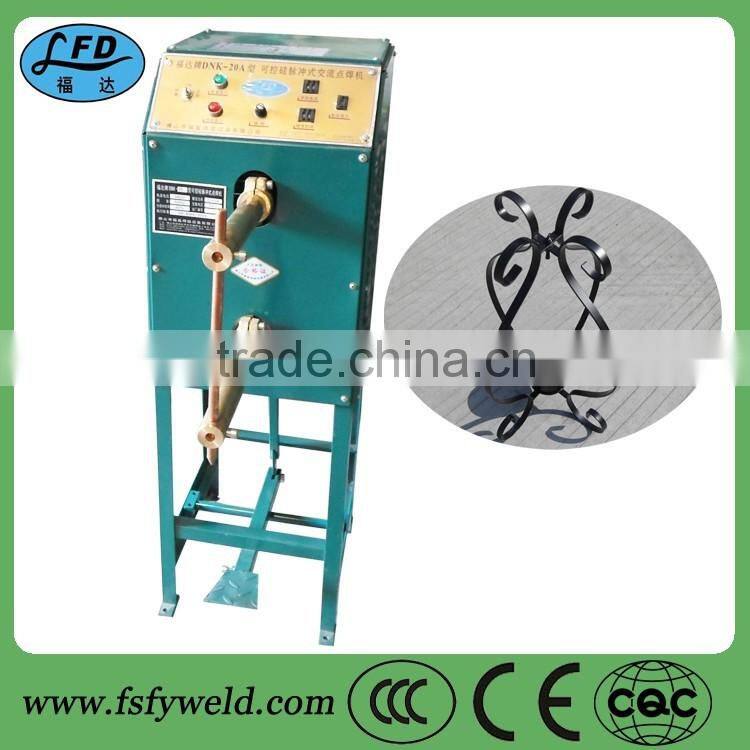

Foot type AC spot welding machine portable welding machine
Model | Rated Capacity | Rated Voltage | Phase | Electrode Spacing | Welding Capability | |
Low Carbon steel | Wire Materials | |||||
DNK-16A | 16KVA | 380V/50Hz | Single | 240MM | 0.5mm+0.5mm 2.0mm+2.0mm | 0.8mm+0.8mm 5.0mm+5.0mm |
DNK-20A | 20KVA | 380V/50Hz | Single | 350MM | 0.5mm+0.5mm 2.2mm+2.2mm | 0.8mm+0.8mm 7.0mm+7.0mm |
DNK-25B | 25KVA | 380V/50Hz | Single | 250~370MM | 0.5mm+0.5mm 2.5mm+2.5mm | 1.0mm+1.0mm 8.0mm+8.0mm |
DNK-35B | 35KVA | 380V/50Hz | Single | 300~420MM | 0.5mm+0.5mm 3.5mm+3.5mm | 1.0mm+1.0mm 10mm+10mm |
DNK-20C | 20KVA | 380V/50Hz | Single | 350MM | 0.5mm+0.5mm 2.2mm+2.2mm | 0.8mm+0.8mm 7.0mm+7.0mm |
DNK-25C | 25KVA | 380V/50Hz | Single | 250~370MM | 0.5mm+0.5mm 2.5mm+2.5mm | 1.0mm+1.0mm 8.0mm+8.0mm |
DNK-25D | 25KVA | 380V/50Hz | Single | 250~370MM | 0.5mm+0.5mm 2.5mm+2.5mm | 1.0mm+1.0mm 8.0mm+8.0mm |
DNK-35D | 35KVA | 380V/50Hz | Single | 300~420MM | 0.5mm+0.5mm 3.5mm+3.5mm | 1.0mm+1.0mm 10mm+10mm |
DNK-40D | 40KVA | 380V/50Hz | Single | 300~420MM | 0.5mm+0.5mm 3.5mm+3.5mm | 0.5mm+0.5mm 3.5mm+3.5mm |
Performance characteristics
1), Portable device is easy for operation, digital and timing control is precise and stable, good welding effects such as thin sheet and fine wire.
2), With vertical motion of welding arm, single spot welding and row welding can be done; with accessories, butt welding can also be done.
3), SCM integrated control system, precise and stable welding with high quality.
4), With current rise delay, no sparks flying.
Application
It is suitable for welding metal craft work, commodity and hardware, furniture, wire net, lamp ornaments, etc.
R&D Team and Quality Control
Our R&D center has a young and experienced R&D team. They are the industry's elite and the pioneer, the R&D department is responsible for new technology, new product research and development and industrial production follow-up.
Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.
Our Services
1), We will be answer within 24 hours, welcome to contact with us if you have any problems. We warmly welcome to visit our company and looking forward to cooperating with you.
2), We can offer OEM or ODM service, according to customers requirements.
3), Unique and exclusive solution can be provided to our customers by our professional engineers.
Packaging & Shipping
3), Delivery time is 5-7 working days after receiving deposit.
4), Warranty: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
Sales Markets
Foshan Fuyin Welding Equipment Co., Ltd is a professional manufacturing and developing company in the line of spot welding machine and Automatic devices of wire products series products. Our products are exported to South America, Mid East, Russia, Europe and countries around the world.
For more information, please feel free to contact us, your satisfaction is our top priority!
Contact: Cunlu Liu
Mob: +86 1392 770 7025
Tel: +86 757 633 69302
Fax: +86 757 885 72629
Skype: fsfuyin.welding
