Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | KIND | Model Number | NBC-400PT | |
| Dimensions | 1080*570*846mm | Weight | 55kg | |
| Usage | Industry, Civil use | Voltage | 380V, 50/60Hz, 3 phase | |
| Power(W) | 17.8KW | Certification | CCC, CE, CQC | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

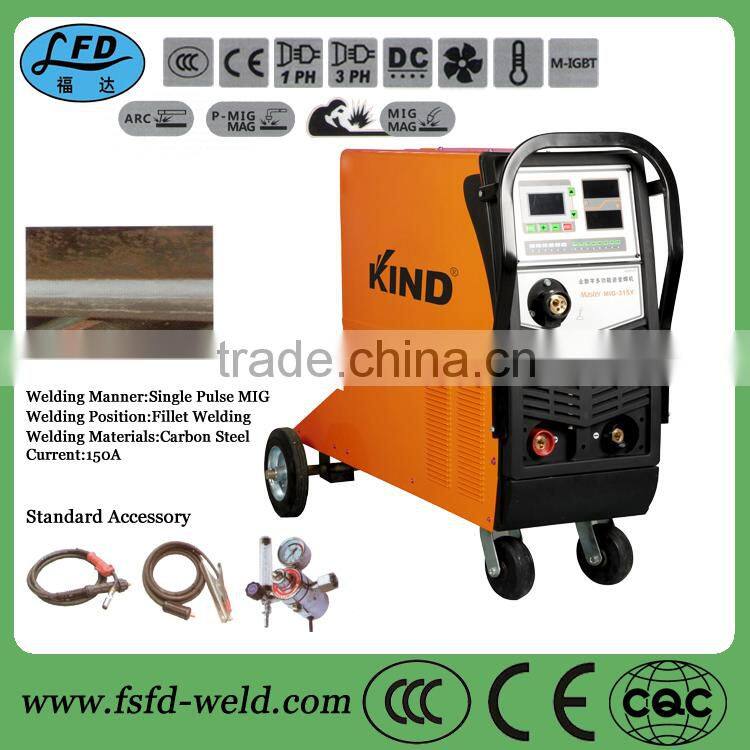

Mig Mag mig welder portable welding machine price
Model | NBC-250PT(Y) | NBC-315PT(Y) | NBC-400PT(Y) | NBC-500T |
Input | 380V | 380V | 380V | 380V |
Rated | 8.6KVA | 12.3KVA | 17.8KVA | 24.8KVA |
Voltage Adjustment | 10-48V | 10-48V | 10-48V | 18-39V |
Current | 10-250A | 10-315A | 10-400A | 60-500A |
Efficiency | 85% | 85% | 85% | 85% |
Duty | 60% | 60% | 100% | 60% |
Rod | 0.8/1.0/1.2MM | 0.8/1.0/1.2MM | 0.8/1.0/1.2MM | 1.0/1.2/1.6MM |
Power | 0.9(COSΦ) | 0.9(COSΦ) | 0.9(COSΦ) | 0.93(COSΦ) |
Protection | IP21S | IP21S | IP21S | IP21S |
Insulation | H | H | H | H |
Cooling Type | Air-cooling | Air-cooling | Air-cooling | Air-cooling |
N.W | 32KG | 32KG | 55KG | 32KG |
Dimensions | 1050*500*750mm | 1050*500*750mm | 1080*570*846mm | 670*310*550mm |
1, Performance Characteristics
1), Adopting DSP digital inverter control technology;
2), The welding process stability, forming perfect, less splash and don't need to polishing, save Labour cost;
3), Current and voltage adjustment range is widely;
4), Superior welding effect, tiny distortion;
5), Single pulse aluminum welding(optional functions).
6), Display Mode: LCD
7), Materials Welding: Carbon Steel, Alloy steel etc.
8), Application: Machinery manufacturing, vehicle manufacturing, pressure vessel, electric power construction.
2, R&D Team and Quality Control
Our R&D center has a young and experienced R&D team. They are the industry's elite and the pioneer, the R&D department is responsible for new technology, new product research and development and industrial production follow-up.
Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.
3, Our Services
1), We will be answer within 24 hours, welcome to contact with us if you have any problems. we warmly welcome to visit our company and looking forward to cooperating with you.
2), We can offer OEM or ODM service, according to customers requirements.
3), Unique and exclusive solution can be provided to our customers by our professional engineers.
4, Packaging & Shipping
3), Delivery time is 5-10 working days after receiving deposit.
4), Warranty: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
5, Sales Markets
Foshan Fuyin Welding Equipment Co., Ltd is a professional manufacturing and developing company in the line of spot welding machine and Automatic devices of wire products series products. Our products are exported to South America, Mid East, Russia, Europe and countries around the world.
For more information, please feel free to contact us, your satisfaction is our top priority!
Cel: +86 1392 7707 025
Tel: +86 757 633 69302
Fax: +86 757 885 72629
Skype: fsfuyin.welding
