Home > Products > Inverter welders > Welding Machine With Robot Mig Welding Machine
Welding Machine With Robot Mig Welding Machine
- Guangzhou Shenzhen
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | FUDA (KIND brand) | Model Number | KIND-DPP | |
| Dimensions | 1010*350*1050mm | Weight | 56kg | |
| Usage | Heavy industry , Automatic industry , industry of fine chemical etc | Voltage | 380V, 50/60Hz, 3 phase | |
| Power(W) | 22KW | Certification | CCC, CE, CQC | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

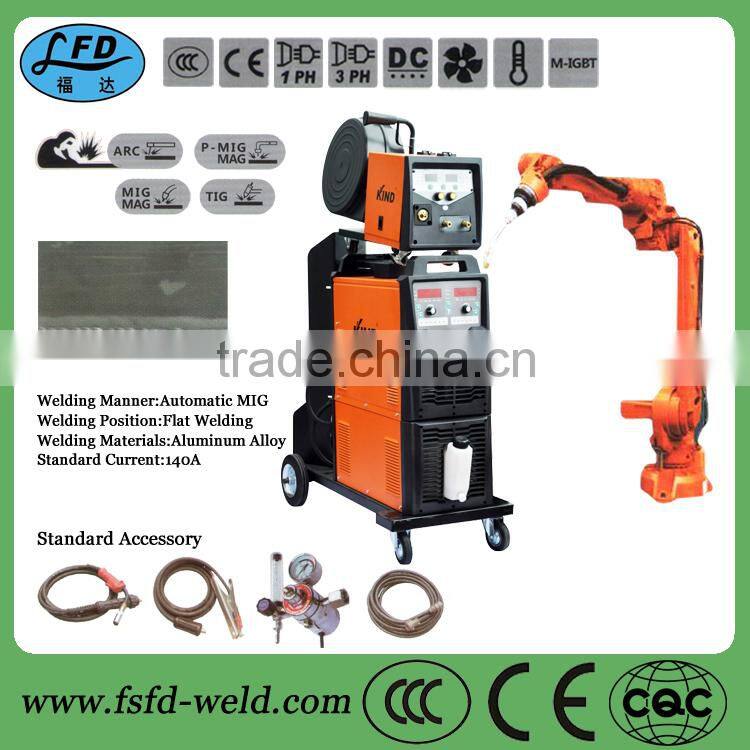

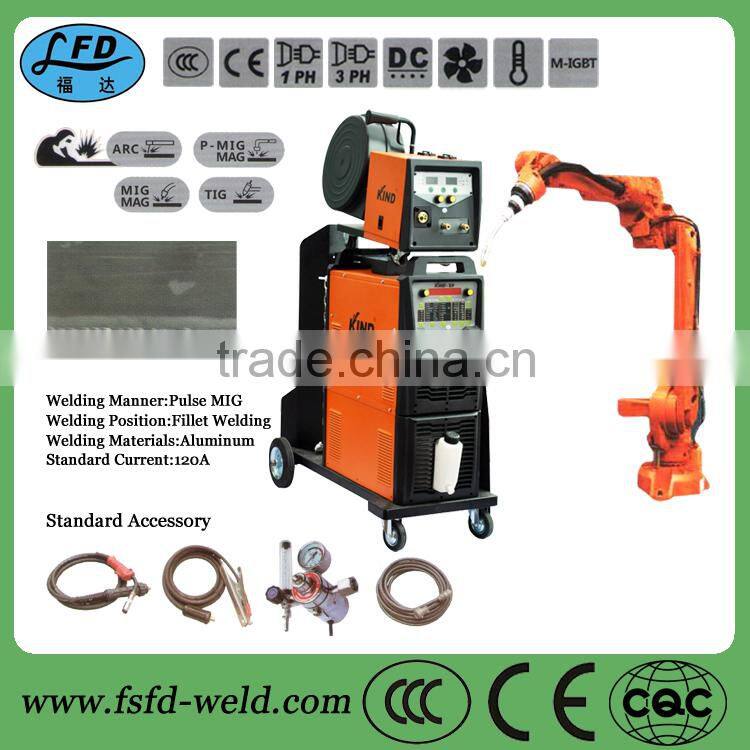

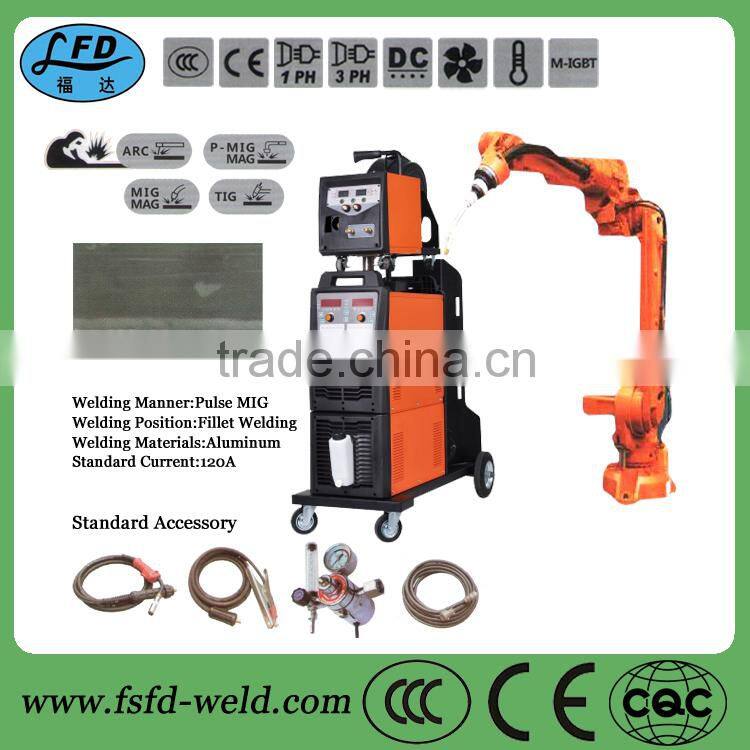

Welding machine with robot mig welding machine
Model | KIND-550 (With Water Cooler) | KIND-560 (With Water Cooler) |
Rated Power | 22KVA | 24.8KVA |
Current | 20-500A | 20-500A |
Arc Length Adjustment | -50-50 | -50-50 |
Efficiency | 85% | 85% |
Duty | 60% | 60% |
Rod | 0.8/1.0MM 1.2/1.6MM | 0.8/1.0MM 1.2/1.6MM |
Power | 0.93(COSΦ) | 0.93(COSΦ) |
Protection | IP21S | IP21S |
Insulation | H | H |
Cooling Type | Water-cooling | Water-cooling |
N.W | 56KG | 56KG |
Dimensions | 1010*350*1050MM | 1010*350*1050MM |
1, Performance characteristics
1), DSP control, soft switch technique & Auto Adaptive system greatly improves dynamic characteristic & welding performance.
2), Optimized preset welding mission&synergic adjusting operation system.
3), Double motors wire feeder with wire speed feedback function to make sure stable welding speed.
4), VRD function prevent user from electric shock and to make machine more power saving, which meet high standard of Safety requirement.
5), Powerful network functions: centralized monitoring, on line software update & remote diagnosis.
6), Record Welding date, time, parameter setting, welding current& voltage, alert signal for ARC breaking and short circuit etc.(Easy for QC data record and control).
7), Over heat , current & voltage and less phase protection.
8), One droplet per pulse transfer provides non-splash welding, it can replace AC square wave TIG when welding Aluminum.
9), Inner DEVICENET could connect with robot like ABB, KUKA etc(Optional).
10), Display Mode: Dot matrix
11), Materials Welding : High/Low Alloy, Carbon Alloy, Stainless Steel, Aluminum Alloy, Aluminum Magnesium Alloy, Copper, Copper Alloy and Special Metals etc
12), Usage: Heavy industry, Industry of fine chemicals, automatic industry etc
13), Application: Steel Industry, Machinofacture, Auto Industry, Pipe-lineConstruction, Vessel, Shipbuilding, Offshore Operation, Power Industry etc
2, R&D Team and Quality Control
Our R&D center has a young and experienced R&D team. They are the industry's elite and the pioneer, the R&D department is responsible for new technology , new product research and development and industrial production follow-up.
Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.
3, Our Services
1), We will be answer within 24 hours, welcome to contact with us if you have any problems. We warmly welcome to visit our company and looking forward to cooperating with you.
2), We can offer OEM or ODM service, according to customers requirements.
3, Unique and exclusive solution can be provided to our customers by our professional engineers.
4, Packaging & Shipping
4), Warranty: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
5, Sales Markets
Foshan Fuyin Welding Equipment Co., Ltd is a professional manufacturing and developing company in the line of spot welding machine and Automatic devices of wire products series products. Our products are exported to South America, Mid East, Russia, Europe and countries around the world.
For more information, please feel free to contact us, your satisfaction is our top priority!
Contact: Cunlu Liu
Cel: +86 1392 7707 025
Tel: +86 757 633 69302
Fax: +86 757 885 72629
Skype: fsfuyin.welding
