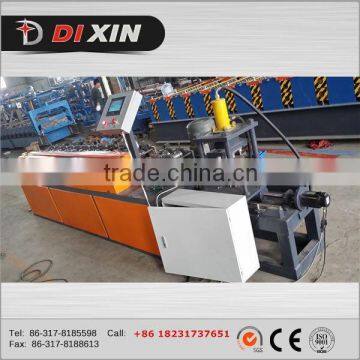

Shutter Slat Roll Forming Machine

Product Description

Rolling shutter machine is a special type of roll forming machine, producing shutter door panel or slat standard and elegant, which shows good performance and using trends in the future sufficiently.This kind of roll forming machine is widely used for making various metal,wall panels and roof panels for steel constructions, steel structure projects and containment systems etc. Shutter Door Roll Forming Machine a advanced-technology and practical usable system.

The product we can do :

As a manufacturers,we can make the High Quality Roller Shutter Slat Roll Forming Machine Price by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Here is some profile drawings for you reference.

Main Technical Data of Shutter door roll forming machine

1.Mounting dimension:4000*500*700mm

2.Total weight:about 3ton

3.Control system:computer control

4.Main forming unit driving motor power:3kw+1.2+1.3

5.Material of rollers:45#steel,quenched HRC58-62,coated with rigid chrome.

6.Material of roller shafts:45#steel

7.Step of rollers:12-15steps

8.Forming speed:10-15m/min

9.Thickness to be rolled:0.5-1.5mm

on thickness and customer`s need)

Components of Line

1. Decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

a. Coil inner diameter: 450-550mm

b. Coil max width: 300mm
c. Max carrying capacity: 3000kg

(you can choose this part with Electric or hydraulic)

2. Entry leveling and punching dots

This part will level coil to make sure it is neat clean and straight.

3. Roll forming machine

4.Shearing system

Servo flying and tracking cutting saw, the cutting saw will adjust the cutting speed and location according to the main machine speed. By this method, the machine working speed will be same as the main machine accordingly. The cutting plate we take the best material for cutting it in high speed and beautiful cutting scare.

The material of blade: Cr12Mov, Hardening HRC 58-62℃

Length Tolerance:3m±1.5mm

5.Hydraulic station

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Hydraulic pressure : 12Mpa

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

6.PLC station

PLC control system, we will take Panasonic or you can specify the one you like. Different with normal machine, PLC programmed will add servo cutting saw control parameters.

7. Run out table

It adopts welded steel and supported roller to transmit the products.

Quantity:2 sets

Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery time : 50 days

Container need: one 20`

1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

3. Need one technician.

4. Training time: one week (contains the time of installation and adjustment)
