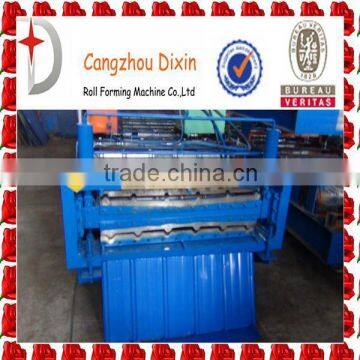

Commercial Roof Panel Machine (CRPM)
- 20 Set / Sets per Month
- Xingang Tianjin
- T/T Credit Card
You May Like
Product Details
Condition | New | Type | Tile Forming Machine | |
Tile Type | Colored Steel | Use | Roof | |
Production Capacity | 10-12m/min | Place of Origin | Hebei, China | |
Brand Name | Dixin | Model Number | 840 850 860 900 910 1050 | |
Power(W) | 4KW | Voltage | 380V | |
Dimension(L*W*H) | 6.5*1.5*1.3m | Weight | 4 TON | |
Certification | CE | Warranty | 1 year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Commercial Roof Panel Machine (CRPM)1.PLC control system
2.CE certification
3.500-1500mm
4.0.2-0.8mm
Commercial Roof Panel Machine (CRPM)
Diferent forming machine of our company:
2.Working Flow For forming machine
3.Consist of forming machine
Item No | Name | Quantity |
1 | De-coiler | 1 Set |
2 | Roll-forming device | 1 Set |
3 | Hydraulic cutting | 1 Set |
4 | PLC control system | 1 Set |
5 | Runout table | 1 Set |
Item Name | Picture | Description |
Manual decoiler | Weight capacity of passive decoiler: 5 tons Max width:1300mm This one is for free Automatic one available | |
rolling system | Roller material: 45# forged steel, with hard chrome plating Shaft diameter: 70mm | |
cutting system | Hydraulic mould cutting | |
PLC control | Set speed and wave length Control to start and stop Automatic or manual available | |
Hydraulic pump | Pump station to give cutting parts drvie |
Processing material | galvanized steel/colored steel coil |
Material thickness | 0.3-0.8mm |
Feeding width | 50-1500mm |
Main motor power | 4 kw |
Pump power | 4 kw |
Speed | 10-12m/min |
Shaft diameter | 70mm |
Forming steps | 11-15 steps,or according to customer request |
Roller material | 45# forged steel, with hard chrome plating |
Main frame | 300H steel |
Medium plate thickness | 14mm |
Control systerm | PLC computer control with inverter |
Power supply | 380V, 3 Phase, 50Hz |
First,we can produce the special machine,send your drawing to us,we can design for you.
Second,if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
Third, we provide a one year warranty and lifelong technical support,we can send our technicians to you to give you on-site training.
Four,engineers available to service machinery overseas.
Five, if you come to visit our factory,we can book the room for you,car pick up to send.
A:- What is the after- sale service?
- We can send technician to your country to fix the machine.The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $50 per day to maintain the machine. And the components are not free, if you need to get it from us.
B:- Can you accept OEM?
- We can accept OEM.
C:- Any certification:
- Yes, we have CE TUV BV certification.
Thanks for watching our products,if you have the interests,please leave your message,or you can contact us according to the following ways,speical design is avaliable!
