aluminium roofing sheet corrugating machine
- 20 Set / Sets per Month
- XinGang Tianjin
- T/T Credit Card
You May Like
Product Details
Condition | New | Type | Tile Forming Machine | |
Tile Type | Colored | Use | Roof | |
Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
Brand Name | DiXin | Model Number | DX-850-65-13 | |
Power(W) | 3 KW | Voltage | 380 V 3 Phase 60Hz or as your requirement | |
Dimension(L*W*H) | 5800*1300*1300mm | Weight | 2.6 ton | |
Certification | ISO CE | Warranty | 12 months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
aluminium roofing sheet corrugating machinecover width:850
coil width:1000
wave height:25
usage:roof and wall

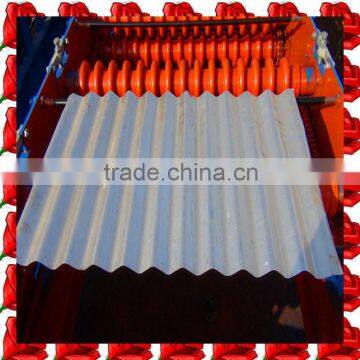

aluminium roofing sheet corrugating machine
850-65-13 roof panel roll forming machine is used for producing metal roof panels.
This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according the customers’requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
The machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, hydraulic station, controlling system, supporter table.
Working Flow For forming machine
Consist Of:
tem No | Name | Quantity |
1 | De-coiler | 1 Set |
2 | Roll-forming device | 1 Set |
3 | Hydraulic cutting | 1 Set |
4 | PLC control system | 1 Set |
5 | Runout table | 1 Set |
Machine Parameters:
1 | Name | 840 roof roll forming machine |
2 | Components | Passive uncoiler and small accessaries as below pictures |
3 | Yield strength | 235 MPa |
4 | Feeding material | metal steel sheet/color steel/galvanized sheet |
5 | Feeding thickness | 0.3-0.8 mm for common use |
6 | Motor power | 3 KW for 840 4KW for 1050 |
7 | Hydraulic pump | 3 KW |
8 | Shaft | 70 mm,high grade NO. 45 carbon steel |
9 | Roller | 0.05mm Chromn and high grade NO. 45 carbon steel |
10 | Control system | PLC automatic control system |
11 | Cutting blade | Cr12 mould steel with quenched treatment |
12 | Forming steps | 11 rows or as your requirement |
13 | Type of forming | Single station with chain transmission |
14 | Type of cutting | Hydraulic mould cutting |
Main Parts of the machine
Item name | Pictures | Usage |
Manual decoiler | Weight capacity of passive decoiler: 5 tons Max width:1300mm Diameter:410-508mm This one is for free Automatic one available | |
Feeding parts | Level and feed sheet | |
forming system | 70mm shaft 0.05mm Chromn high grade NO. 45 carbon steel 11 rows or as your request | |
Hydraulic cutting system | Level and feed sheet | |
run out table | easy put easy install | |
hydraulic station | 4kw | |
PLC control |
Set speed and wave length Control to start and stop Automatic or manual available |
Profile samples (We can design to what you need)
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers’ trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.
First,we can produce the special machine,send your drawing to us,we can design for you.
Second,if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
Third, we provide a one year warranty and lifelong technical support,we can send our technicians to you to give you on-site training.
Four,engineers available to service machinery overseas.
Five, if you come to visit our factory,we can book the room for you,car pick up to send.
