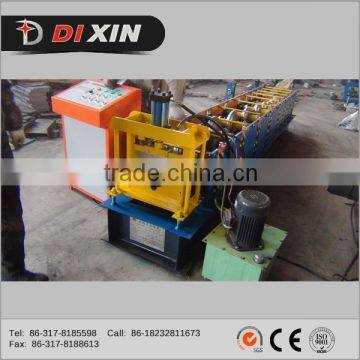

Dixin making machine small business color steel roof ridge cap roll forming machine

FOB Price

US$ 6,500 - 11,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Colored Steel	Production Capacity	8-12m/min
Place of Origin	Hebei, China	Brand Name	DIXIN
Power(W)	4+4KW	Voltage	380V 50Hz 3phases
Dimension(LWH)	650013001100	Weight	3.5T
Certification	CE BV ISO	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Dixin making machine small business color steel roof ridge cap roll forming machine

Technical Parameters (depending on specific requirements of users)

Suitable steel plate	Type	Color steel plate
	thickness	0.3-0.8mm
	Feeding width	As users needs
	Effective width	As users needs
Production speed	8-12m/min
Roller stand	14 rows
Diameter	75mm
Main power	4kw
Pump power	4kw
Side panel of machine	18mm
Roller material	Carbon Steel 45#
Blade material	Cr12, quenched
Control system	PLC control
Voltage	380V 50Hz 3phases(changeable as needs)
Main structure of the machine	300mm H-Beam

Component

Workflow

Decoiler--Roll Forming--PLC System--Hydraulic System--Cutting--Output Table
