Home > Products > Diode Side Pump Laser Marking Machine > Diode Side-pump Laser Marking Machine for Cosmetics Box
Diode Side-pump Laser Marking Machine for Cosmetics Box
- Qingdao
- T/T Credit Card PayPal
You May Like
-
Diode Side-pump Laser Marking Machine for Cosmetics
-
Diode Pump Laser Marking Machine for Plastic Nail
-
XT Diode Side-pump Portable Laser Marking Machine for Lead Sealing
-
High Speed Diode Laser Marking Machine for Watch
-
XT Diode Pump Laser Marking Machine for Screwcap With Best Price
-
Approved CE Diode Side-pump Laser Marking Machines for Ferrule
Product Details
| Laser Type | Diode | Engraving Area | 100*100(200*200)mm | |
| Engraving Speed | 0-7000mm/s | CNC or Not | Yes | |
| Cooling Mode | Water Cooling | Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Rubber, Stone, Wood | |
| Graphic Format Supported | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP | Place of Origin | Shandong, China | |
| Brand Name | XT | Model Number | XTL-DP75 | |
| Certification | CE, ISO | After-sales Service Provided | Engineers available to service machinery overseas |
laser marking machine on cosmetics box packed by wooden case
Product Description
Specifications
1:Diode laser marking machine on cosmetics box2:Import laser head available
3:Germany Galvo head
4:English software and Vid
Laser marking machine on cosmetics box
| Features |
1. imported UK ceramic condenser chamber, resistant to elevated temperature and corrosion, long life (8-10 years), high photoelectric conversion rate, no need to adjust the lifting plate form to focus when doing engraving within 3mm depth,
The speed of making one-time 1mm engraving is 3 times than our Opponent.
2. Large power,controled by eletric and software,tunable
3. Low cost,without ink and other print consumables
4. Scanned with high precision by galvo head
5. 24 hrs continuously working
6. Depth: aluminium plate 5mm, steel plate 3mm
7 .Speed:5mm x 5mm steel plate:0.6mm in 10 minutes
| Application |
A):all kinds of ordinary metals and alloys(Iron, copper, aluminium, magnesium, zinc and all metals);
B):rare metals and alloys (gold, silver, titanium); metal oxides, ABS material (electrical appliancescase, daily necessities).
C): ink (translucent key-press, printing products),
D)epoxy resin(electronic components packaging, insulation layer)
| Technical Specifications |
Max.Outout Power | 75W | Repetition Precision | ±0.03mm |
Laser Wavelength | 1064nm | Machine power | 2KW |
Repetition Frequency | ≤50KHZ | Electric Power Demand | 220V/Single Phase/50Hz/8A |
Standard Marking Scope | 100mmX100mm(optical) | Optical-Path System Size | 1200mm*190mm*200mm |
Marking Depth | ≤1mm | Controlling Size | 600mm*600mm*800mm |
Marking speed | ≤7000mm/s | Min.Character | 0.3mm |
Min.Line Width | 0.015mm |
|
|

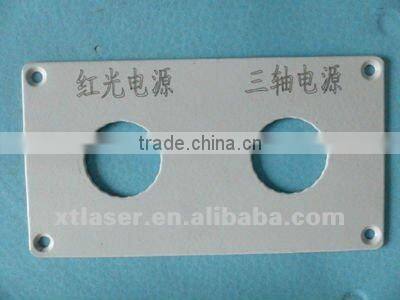

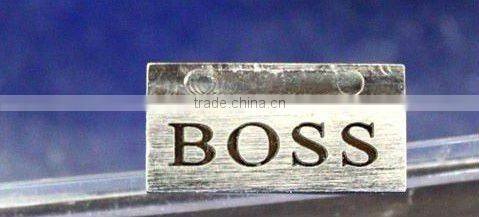

| Sample Photo |

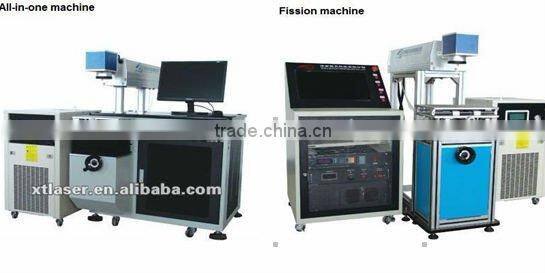

| Machine Photo |
| Package Photo |
| After-sale Service |
| 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online. |
| One-year warranty is provided. (The detailed reference will be written into the final contract.) |
| Professional staff for installation and training if needed. |
| Spare parts are supplying on time or doing some inventory if promising certain sales volume. |
| Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful. |
| If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype. |
| Company, Exhibition, Certification |
| The Series Of Products |
- fiber laser marking machine
- Semiconductor side-pumped laser marking machine
- CO2 RF laser marking machine
- pneumatic marking machine
| Contact Information |
Company Profile
Jinan Xintian Technology Co.,Ltd was established in 2004,it is a professional manufacturer engaged in the research, development, production and service of laser marking machine,fiber laser marking machine.pneumatic marking machine,laser engraving machine,laser welding machine, laser cutting machine and laser trimming machine. We possess high efficient cooperated technology and sevice team, high coordinated producing and service network. Our company strictly according to ISO9001:2008 international quality management system elements of conduct production,process inspection,incoming inspection,various links quality,Pay attention to produce aftersales quality feedback and continuous imporvement principle,ensure products performance and stable quality Our company will continue its efforts in every colleague support,in other fields to make greater achievements.Jinan Xintian Technology Co.,Ltd also met with more excellent products and more satisfied with the cost performance of more satisfactory service to acknowledge old and new customers for supports love.
Contact Us
- Jinan Xintian Technology Co., Ltd.
- Contact nameEric Jia Chat Now
- Phone86-531-88558038
- AddressNo. 316, Xinggang Road
