Small Mobile Asphalt Batching Plant/mobile Asphalt Plant 60-150t/h

Item

Parameter

Remark

Capacity

80t/h

Rated operation condition

Cold aggregate bin

4

Belt feeder

Consistence: inclined belt feeder, oversize screen

Inclined belt feeder equipped with emergency stop and pull switch

Dry drum

Diameter: 1600mmX8m, capacity: 100t/h

Adopts four-wheel friction drive, universal connection, driving smoothly and carry load uniformly.

Burner

Diesel/heavy oil

Burner equipped with gas ignition, has high ignition success rate. Medium atomization, sufficient burning.

Hot aggregate elevator

Double row guide slide plate chain elevator, friction drive, discharge hole adopts special structure, can reduce wear and noisy.

Dust moving module

Bag house dust collection

Adopts downstream injection mode, has good dust removal effect, make the service life longer.

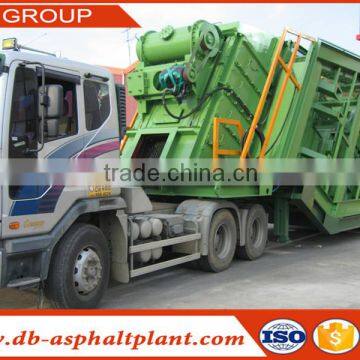

 Mix tower mobile module

1 set three layers semi-structure vibration screen(monopodium outlay)

Four insolation warehouse

Equipped with continuous level gage

Weighting system adopts single bin, 4 pints hang, with transport fixed components, weighting capacity: aggregate 1000kg, powder 150kg, bitumen 90kg

The sensor adopts Sino-US TOLEDO, with accuracy weighting, weighting error automatic compensation.

Double inducer drive, twin shaft reverse rotation mixing tank

Mineral powder supply system

Consistence: filter elevator, new and recycle powder bin, filter weighting device, two sets screw conveyor

Screw conveyor exit equipped with butterfly valve, to control the impulse; filter temporary storage bin pneumatic break arch

Bitumen supply mobile module(include thermal oil furnace system)

30m³ bitumen tank 1 set, 10m³ diesel tank 1 set, 2m³ dump tank 1set, pipe and pump,. 300000 kcal thermal oil furnace one set, valve 1 set.

Use conduction oil to heat bitumen. The temperature grow fast, easy to use. Bitumen tank setted on the ground, easy to discharge bitumen.

Set aside type finished product bin

One horizontal transport cart, one lifting transport cart, one reject bin, one finished product storage bin, one winch, one diesel spray device;

Optional

Air circuit system

two air compressor, two 600L gas storage tank, one 350L gas storage tank, Simple air compressor machine room, cylinder, solenoid valve for each one set.

Taiwan airtac solenoid valve, cylinder with reliable performance and long service life.

Electrical control system

One set
