Cement Fencing Pole Making Machine/ Concrete Pole Making Machine

Cement Fencing Pole Making Machine/ Concrete Pole Making Machine

Pre-stressed Concrete Electric Pole Making Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.

Pre-stressed Concrete Electric Pole Making Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.

The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.

Working process of Cement Fencing Pole Making Machine:

Centrifugal Spun pole machine is the most necessary equipment during the production of the reinforced and Pre-stressed concrete poles. it consists of Spun machine, Steel Mould, Varied-frequency speed control Motor, Bearing Seat, Driving Shaft and Driven shaft, Belt pulley.

After putting the cage and feeding in the wet concrete, covering the other half of mould, the machine will drive the mould to rotate at the speed from slow to fast. with the working of the centrifugal force produced by the high speed rotation, the concrete will adhere to the inner wall of the mould, and the extra water will be discharged out of the mould. then the Concrete will become intensity and strength to form the poles.

After steam curing, taking off the mould, and natural curing for some days, the standard quality concrete pole has come out.

1.use the wire cage welding machine make the steel wire into this stype

2.put the steel wire into the telegraph pole steel mould

3. pour into the cement and stones

ver the telegraph pole steel mould

5.put the steel mould on the centrifugal roller suspension machine

6.sling the steel mould and put it into the rectangle container, it joint with a boiler,

7. dry the steel mould, let the cement pole dry quickly

8.separate the cement pole from steel mould

9.last step, transport the cement pole to designated area

Working Principle of prestressed reinforced concrete electric round pole machine

1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.

2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.

3. The speed of separation is slow when the viscosity of slurry is high.

4. It is good for centrifugal sedimentation when the slurry density is different in each component.

Main technical specifications:

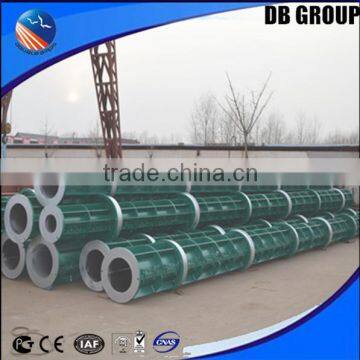

 steel mould and cement pole:

You want to set up a new factory of concrete pile or pole .Please follow below question :

1. How many poles or pile will be produced per day?also the working day per year, working shift . thanks

2. Will you set up a new concrete pole/pile plant? or just increase the production capacity. we will give you differentproposal and solution. also including the factory layout, technology introduction.

3. What kind of Concrete pole/piles? there are reinforced concrete poles, piles; pre-stressed concrete poles/piles, also the partical pre-stressed poles and piles. there will need some other different machines for the whole production line.

4. Pole/Piles Specification: tell us the top diameter, bottom diameter, total length , thank you!

5. How much for the budget ? will you prefer semi-automatic or the full-automatic production?

6. Have you do any market research ? who is your potensial customers? the government project of telecommunication, electric transmission; or your own project !

if you want to know more, please contact with me, i will reply to you in two hours:
