Home > Products > Plate Beveling Machine > GBM-12C Plate Beveling Machine
GBM-12C Plate Beveling Machine
- Shanghai China
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Nodha | Model Number | GBM-12C | |
| Rated Power | 1500W | Weight | 175KGS |
Product Description
Specifications
GBM-12C Plate Beveling Machine:1High efficiency:1.8m/min
2No scrap iron splash, more safe
3Can process steel, pipeline
GBM-12C Plate Beveling Machine:
Advantage:
High efficiency of reduction gear box
Can process steel, pipe head
High power motor:1500W
Max.bevel width:18mm
Cold cutting, non-oxidation on the surface
High efficiency:2.5m/min
No scrap iron splash, more safe
Beveling angle can be adjusted between 25Deg to 45Deg
Specification:
Power Supply: AC 380V/220V 50Hz
Motor Power:1500W
Motor Speed:1400RPM
Bevel Speed:1.5-2.5m/min
Bevel Angle:25 Deg, 30 Deg, 35 Deg, 40 Deg, 45 Deg.
Single Bevel Width:12mm
Max. Bevel Width:18mm
Processing Plate Thickness:6-30mm
Processing Tube Dia:>Dia 150mm
Min.Processing Plate Width:>75mm
Net Weight(GBM-12C):175kgs

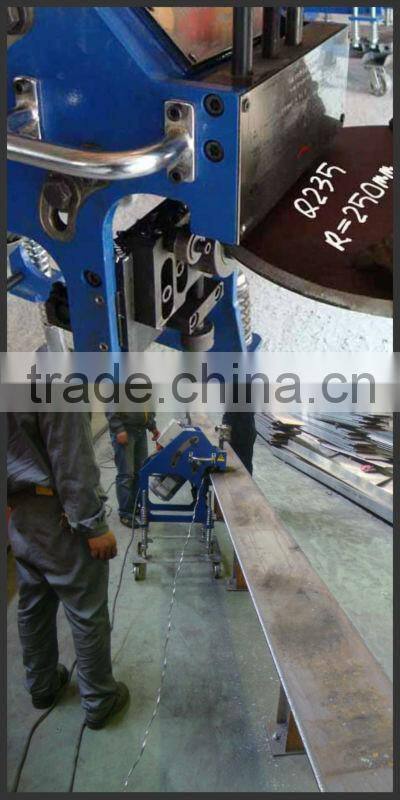

Processing case:

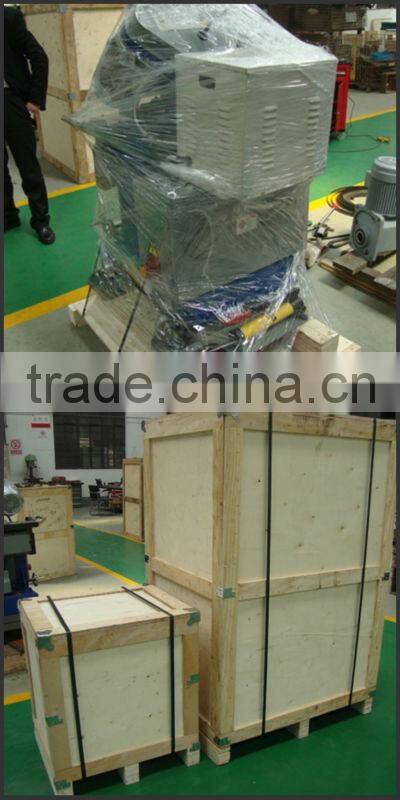

Package:

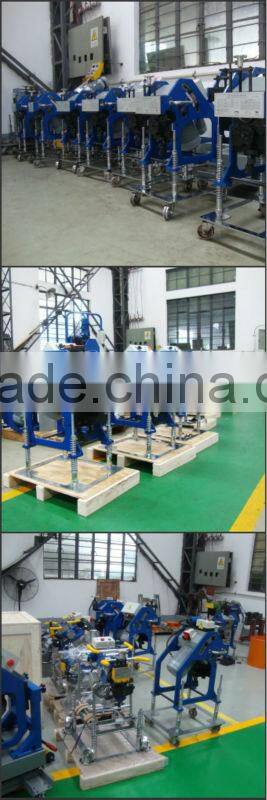

Inventory:
