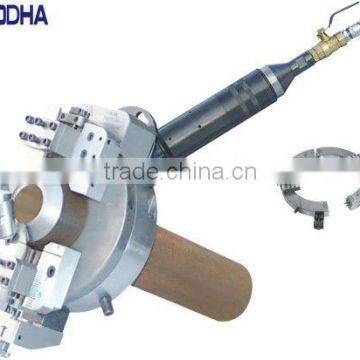

Portable Pipe Chamfering Machine

Pipe Cutting and beveling Machine:

The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.

• Cold Cutting and Beveling improves safety
• Cutting and Beveling simultaneous
• Split Frame: easy mounted on pipeline
• Tools feed automatically
• Fast, Precision, On-site Beveling
• Minimal Axial and Radial clearance
• Light weight and compact design
• Easy set-up & Operation
• Electric or Pneumatic or Hydraulic driven
• Machining heavy-wall pipe from 3/4” up to 56”

• Oil & Gas
• Power Plant
• Chemical Plant
• Nuclear Power
• Process Plant & Fabrication
• Ship Building & Repair

• Drive Options: Pneumatic, Hydraulic, and Electric
• Air requirement: 1500L-3000L Per minute 0.6/0.7Mpa
• Hydraulic requirement: 2-60L per minute 12.5Mpa
• Electric requirement:220-240V 1PH 50/60HZ
• Feed mode: Star wheel, automatically
• Feed rate: Fixed 0.08mm per circle
• Packaging: Plywood case

Suggest: size 1066 and above size select and use hydraulic type

Before you place order to us, please let us know the following information:

• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

• If the pipe wall thickness more than 30mm, inform us in advance (Important)
