NC Operated Pipe Cold Cutting and Beveling Machine

Specifications

Pipe Cutting and beveling Machine:

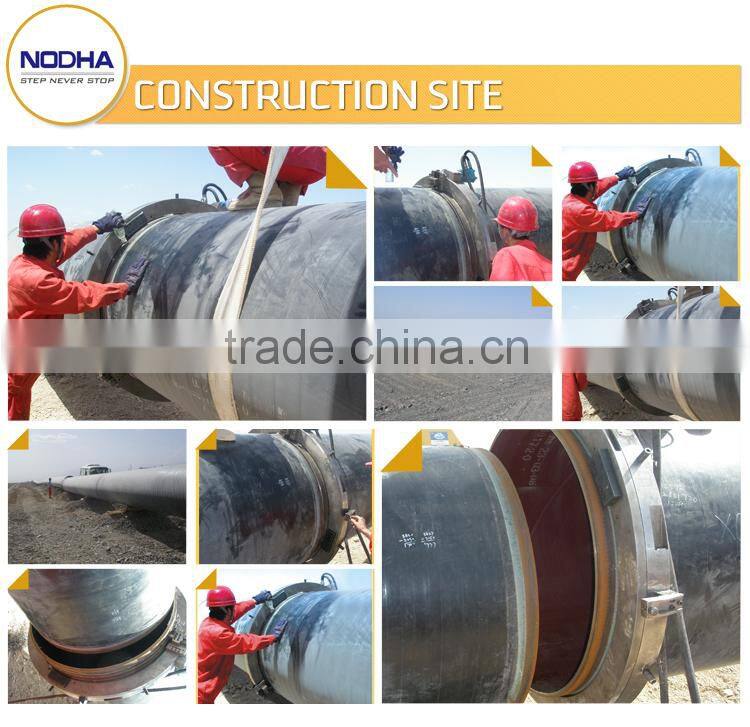

The split frame design of the equipment allows the machine to separate and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel operations, as well as weld end preparation on open ended pipe

• Cold Cutting and Beveling improves safety
• Cutting and Beveling simultaneous
• Split Frame: easy mounted on pipeline
• Tools feed automatically
• Fast, Precision, On-site Beveling
• Minimal Axial and Radial clearance
• Light weight and compact design
• Easy set-up & Operation
• Electric or Pneumatic or Hydraulic driven
• Machining heavy-wall pipe from 3/4” up to 48”

• Oil & Gas
• Power Plant
• Chemical Plant
• Nuclear Power
• Process Plant & Fabrication
• Ship Building & Repair

• Drive Options: Pneumatic, Hydraulic, and Electric
• Air requirement: 1500L-3000L Per minute  0.6/0.7Mpa
• Hydraulic requirement: 2-60L per minute  12.5Mpa
• Electric requirement:220-240V 1PH 50/60HZ
• Feed mode: Star wheel, automatically
• Feed rate: Fixed 0.08mm per circle
• Packaging: Plywood case

                               Axial & Radial Clearance

Suggest: size 1066 and above size select and use hydraulic type

Before you place order to us, please let us know the following information:

• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

• If the pipe wall thickness more than 30mm, inform us in advance (Important)
