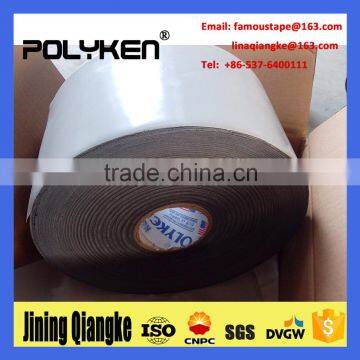

Polyken 955-20 20mils waterproof rubber tape

-Resistant to soil stress

- Excellent adhesion to pipe and self

-Low cathodic protection

-Long-term in-ground performance

- Serve for low-high temperatures

- Cold applied

-Uniform coating thickness

-Compatible with all pipe diameters and generic plant

 coating systems

-Qualified ASTM D1000,AWWA C 214,EN 12068 standards

Backing :  Special blend of stabilized polyethylene

Adhesive : Butyl rubber and Adhesion Promoting Resins

Color   :Black or White

Product Properties

Test method

Typical Value

POLYKEN 955-15

POLYKEN 955-20

POLYKEN 955-25

POLYKEN 955-30

Total Thickness

15mil(0.381mm)

20mil(0.508mm)

25mil(0.635mm)

30mil(0.762mm)

Backing of PE film

10mils(0.254 mm)

15mil(0.381mm)

20mil(0.508mm)

25mil(0.635mm)

Butyl Rubber Adhesive

5 mils(0.127 mm)

5mil(0.127mm)

5mil(0.127mm)

5mil(0.127mm)

Tensile Strength

ASTM D1000

50N/cm

60N/cm

70 N/cm

80 N/cm

Elongation

ASTM D1000

300%

350%

350%

450%

Peel Adhesion to Primed Steel

ASTM D1000

24 N/cm

25 N/cm

26.5 N/cm

33 N/cm

Water Vapor Transmission Rate

ASTM E 96

0.10g/m2

0.10g/m2

0.08g/m2

0.06g/m2

Water absorption after 1 day,At+23℃

ASTM D570

0.10%

0.10%

0. 08%

0. 06%

Volume Resistivity

ASTM D 257

2.0 x 1015 ohm.cm

2.5 x 1015 ohm.cm

2.6 x 1015 ohm.cm

2.6 x 1015 ohm.cm

Dielectric Strength

ASTM D149

30 kv

36 kv

43 kV

45 kV

POLYKEN 955

Product Model No.

Standard ordering options

20

Total tape thickness in mils

15mils(0.381mm),20mils(0.508mm),25mils(0.635mm),30mils(0.762mm)

WHI

Tape backing color

White (WHI)

6

Tape width in inches

2"(50mm),,4"(100mm),6"(150mm),9"(228mm),12"(305mm)18" (457mm)

400

Tape roll length in feet

100ft(30M),200ft(61M),400ft(122M),600ft(183M),800ft(244M)
