Aluminum Woven Cloth Foil Building Insulation
- Lianyungang/Qingdao
 - T/T Credit Card

You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | MSD |
Product Description

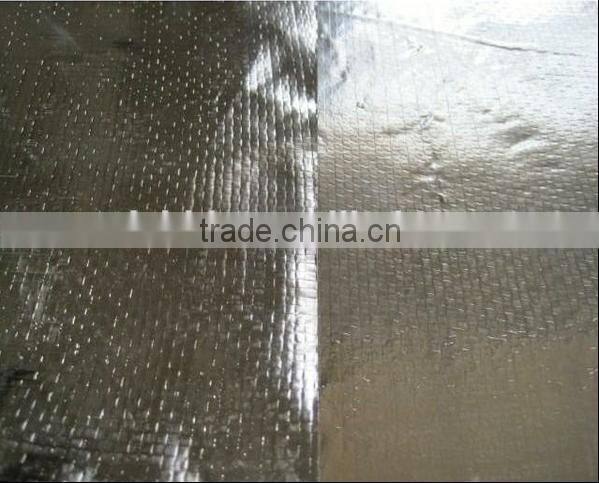

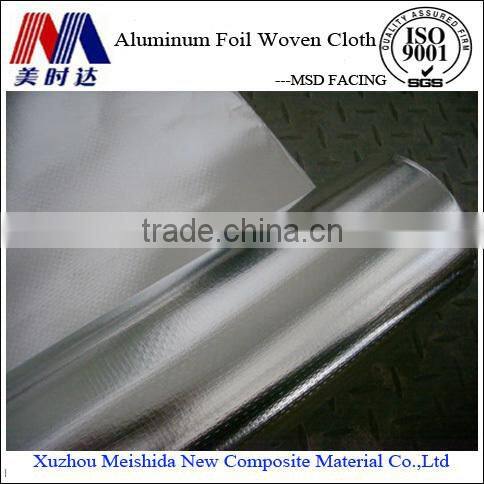

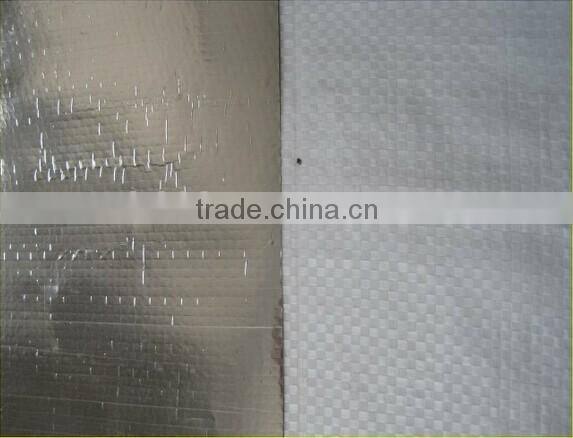

aluminum woven cloth foil building insulation
Description
The material provides excellent insulation: reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction,convection,and radiation.The side of metalized PET/Alu forms an effective barrier against moisture,air currents and vapors.It is economical solution in many field.
Specification:
Color: Green, Blue, Silver, Grey, Black, Orange
Max Width per roll: 2.6 M, it can be slitted according to customer's demand
Regular Length per roll: 50~3000 M
Weight: 80-250gsm
Types / Structure:
1.Alu Foil +PE +Woven
2 Alu Foil+PE +Woven+PE
3.Alu Foil+PE +Woven+PE+Alu
4.Antiglare coating+Alu Foil+PE +Woven+PE
5.Antiglare coating+Alu Foil+PE +Woven+PE+Alu Foil
6.Alu Foil+PET+PE +Woven+PE
7.Alu Foil+PET+PE +Woven+PE+Alu Foil
8.These types can be produced Fire resistant and Perforated.
Characteristics:
1.Clean,thin,light weight, good flexibility and cushioning;
2.Reflective,Insulated,Waterproof,(Fireproof)
3. Low thermal conductivity and superior heat insulation;
4.Cost effective and versatile, Invariable if it is attacked repeatedly;
5.Easy to install,high efficiency,Maintenance free, environmentally friendly.
Application:
1. To laminate or coat EPE,XPE,IXPE,Bubble,Kraft,Fibreglass Wool as good
Building / construction Thermal Insulation Material to reduce summer heat and keep warm in winter.
(1) Roof,Attic,Underlay & floor Insulation Under Concrete & wood.
(2) Crawl Space, Stud Wall, Metal Frame Building Insulation
2. Wrapping
(1)Protective coating of ventilating pipe,HVAC Duct & Pipe;
(2)Shells of air conditioner and water heater;
(3)Packing lift/elevator, machinery, sensitive products.
(4)Industrial & commercial sheds.
3.Sarking & Radiant Barrier
4.To make Container liner; tray cover.
Technical Parameters:
Product Structure  | Description  | |
Alu. Foil  | 7µm  | |
Adhesive  | PE  | |
| PE Woven Cloth | 80g/m²  | |
Physical Property  | Value  | Test Method  |
Basic Weight  | 135g/m²  | Scale  |
Tensile Strength(MD)  | 511.00N/25mm  | GB/T 7689.5-2001  |
Tensile Strength(CD)  | 352.00N/25mm  | GB/T 7689.5-2001 |
Burst Strength  | 554.5N  | GB/T 454-2002  |
Reflectivity  | 95%  | -  |
Temperature Resistance  | -26°C to 66°C not delaminating  | ASTM C1263 |
Water Vapor Permeability  | ≤5.75 ng/N.s  | ASTM E-96 |
Packing&Shipping:

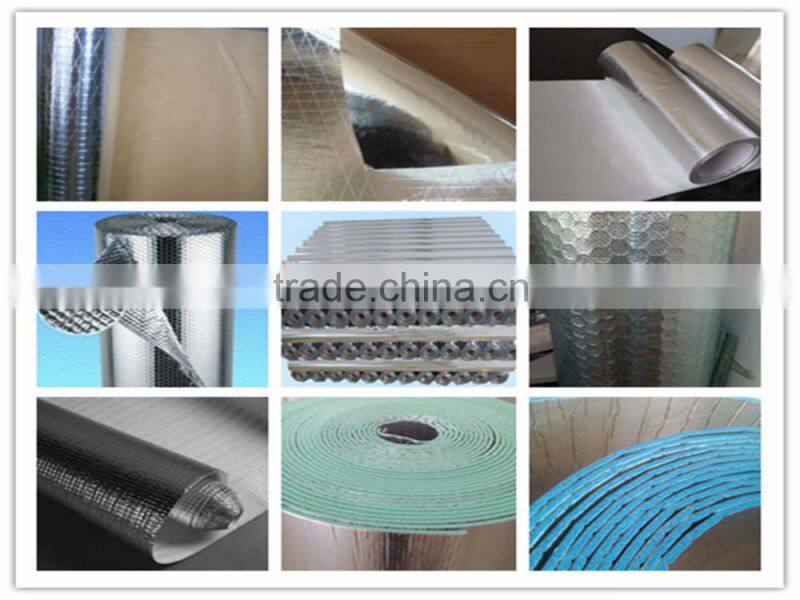

Other structure
Bubble insulation materials  |


  |
Foam insulation materials  |


  |
Radiant barriers  |


  |

Company Information:
Xuzhou Meishida New Composite Material Co., Ltd. (MSD) is engaged in the research and manufacturer of lamination materials for building industry, transformers, cables, electronic, automobile industries and copper conductor industries, especially in air-conditioning, car, train, wall, and roof  for thermal insulation or sound absorption and also as the outer package for industrial products.
Aluminum foil/VMPET bonding with kraft paper, PVC, PP weave cloth, woven cloth, fiberglass cloth by adhesive such as PE, flame retardant; Reinforced by fiberglass inside with the help of dozens sets of advanced machinery; carrying out ISO9001:2000 quality management system rigidly, all of these ensure that the quality of our products is always A List.
We have won the trust of many famous clients for example CSR, Saint-Gobain, Owens together with competitive price and timely delivery in the past several years. Now, MSD welcomes you to contact us and visit us for making deep-level exchange and building long term cooperation.
Trade Show:
Our Service:
1.Prompt Reply to customers’ inquiry on line in 24 hours.
2.Strict quality control system
3.Good Service & Good reputation in the market.
4.Low MOQ can meet your promotional business very well.
5.Timely Delivery & Competitive Price are workable
6.OEM & ODM are welcome.
If you have any problem,please don't hesitate to contact me freely,we can produce the products according to your request.
