HEAT RESISTANT INSULATION ALUMINUM FOIL SCRIM KRAFT LAMINATION
- Lianyungang
- T/T Credit Card
You May Like
-
Aluminum Foil Composition Materials for Roofing or Duct
-
Heat Insulation Foil Scrim Kraft Tape(FSK Tape)
-
FSK Composite Material Aluminium Fiol Kraft Paper
-
Aluminum Foil Scrim Kraft Composite Material
-
Laminated Thermal Insulation Foil Scrim Kraft OEM
-
Double Side and Single Side FSK Foil Thermal Insulation/ FSK Foil Scrim Kraft Facing Thermal Insulation
Product Details
| Brand Name | DFC1001, Meishida | Model Number | Roof Insulation Foil FSK DFC1001 |
Product Description
Related Items: aluminum foil scrim kraft, aluminum-foil-scrim facing, aluminium foil insulation facing, aluminum foil scrim kraft facing, aluminium composite facing, aluminum foil compound materials, aluminum composite materials, foil scrim kraft facing, foil-scrim-kraft facing, foil scrim kraft insulation, FSK facing, FSK facing tape, Foil/Scrim/Kraft insulation tape, heat-sealing foil facing, glasswool facing, insulation facing, laminated foil-scrim-kraft, laminated facing, vapor retarder facing, vapor barrier facing, glass wool, rock wool, mineral wool, polypropylene-scrim-kraft facing, WPSK Facing, FGR Facing, reflectivity aluminum foil, double aluminum foil faced kraft paper
Foil Scrim Kraft lamination Materials means product's main raw materials including reflectivity aluminum foil, Scrim built from fiberglass yarn and Kraft as substrate.
1. Aluminum foil scrim kraft lamination also named FSK lamination is the most popular thermal insulates which was widely used in roof system and wall system no matter inhouse or outside door.

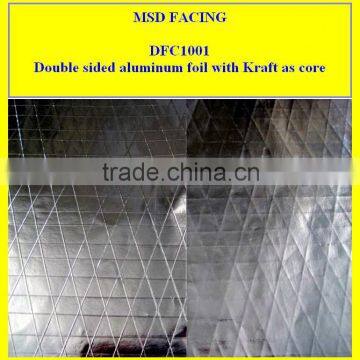

DFC1001 double sided reflective laminate aluminum foil faced kraft paper serves as thermal insulation and sharking membrane underneath roof and wall cladding. Combined with bulk insulation, form very effective thermal barrier and excellent vapor barrier for air conditioning ducting and preformed bulk insulation section for hot and chilled water pipes.
2. Construction & Benefits of heat resistant insulation foil :
Reflectivity double sided Aluminum foil as exposure surface and Kraft being liner sandwiched through Polyethylene as adhesive, and reinforced by fiberglass yarn from tri-direction.
Alu. Foil | 7µm | ||
Fiberglass | 8*12Threads/10cm*10cm | ||
Adhesive | PE | ||
Natural Kraft Paper | 60g/m² | ||
Adhesive | PE | ||
Alu. Foil | 7µm | ||
| |||
Physical Property | Value | Test Method | |
Basic Weight | 115 g/m² | Scale | |
Tensile Strength MD | 139.5 N/25mm | GB/T 7689.5-2001 | |
Tensile Strength CD | 60.2 N/25mm | GB/T 7689.5-2001 | |
Burst Strength | 104.7N | GB/T 454-2002 | |
Reflectivity | 95% | - | |
Temperature Resistance | -26°C to 66°C not delaminating | - | |
3. Application of heat resistant insulation foil :
Double-sided insulation is more effective and durable compared to the single-sided insulation, suit to insulate radiation caused by equipment like transformer signal station, it also be used for roof, wall and building insulation and also could be applied as facing onto rock wool, glass wool, plain slab, ceiling board, ducting air conditioning, or pipe section.
4. Dimension/Size of double aluminum foil scrim kraft lamination paper :
(1) Roll width: 1000mm, 1200mm and 1250mm
(2) Roll Length: 50m, 100m, 200m, 500m, 1000m, or upon request.
(3) Core I. D.: 3"(76mm+/-1)
5. Similar products & guide:
(1) DFC1001: Double sided reflectiviy aluminum foil supply better perfomance and function.
(2) FSK7160P, perforated reflectivity aluminum foil scrim kraft as to absorb acoustic.
(3) FSK7160V. Lay another layer of polyethylene to outer face of Kraft with the structure reflectivity aluminum foil/ scrim / kraft / PE, melt when heated, also calle hot stamping foil.
(4) FSK7160-Tape: Applied pressure sensitve self adhesive and silicon coated paper to the kraft face of reflectivity aluminum scrim kraft facings, get the FSK TAPE.
(5) FSK7140, With metallized polyester film as the exposure surface instead of reflectivity aluminum foil, namely aluminum fil/ scrim/ kraft, for the purpose of maitain reflection with lower cost.
Reflective Aluminum Foil Lined With Kraft and Reinforced by fiberglass from 3 directions make this products durable.
Usually shipped by sea, foil kraft paper packing
ANY INTERESTED ABOUT HEAT RESISTANT INSULATION FOIL MATERIALS PLEASE FEEL FREE CONTACT ME BY SKYPE: Kayla.pan3
WE CAN ALSO PRODUCE ACCORDING TO YOUR INDICATE.
