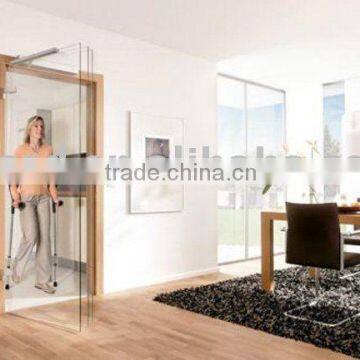

automatic swing door operator

Model

External SD2007

Concealed SD2016

External SD2108

Concealed SD2008

Swing application

One-way open

One-way open

One-way open

Two-way open

Door width

900mm

1000mm

1200mm

1000mm

Door weight

80kgs

100kgs

120kgs

100kgs

Opening speed

3-8 seconds (adjustable)

Closing speed

3-8 seconds (adjustable)

Time to open door

0-120seconds (adjustable)

Open angle

70-150 degrees

Closing buffer function

Adjustable

Input power static/max

5W/40W

Buffer speed of opening

Adjustable

Buffer speed of closing

Adjustable

Buffer distance of opening

Adjustable

Buffer distance of closing

Adjustable

Braking force of opening

Adjustable

Braking force of closing

Adjustable

Locked power

Adjustable

Power supply

AC220,DC12V

Features:

Adpot german high tech, passed CE and ISO 9001-2000.Using brushless DC Motor, 3 years warranty.

* Automatic overload protection.Intelligent encountered obstacles protection, Intelligent over-temperature protection,Electric lock control function

*Working procedures:Opening signal-control unlock - open - brake to stop door -keep the door open - self closing - buffer- locked.

*Intelligent control system with variable adjustable parameters.

*Advanced brushless motor and worm wheel reducer are integrated,with lower consumption,energy saving, high efficiency, great torque and long life.with low noise, easy installation

*the door can be opened or closed by remote control, password swipe card reader,microwave sensor.body sensor, switch button.

* The magnetic lock can be installed, make more secure.

*Safety beam protects the guest from bumping the door, safety and reliable.

*optional backup battery can ensure the normal operation when the power failure

*The door can be opened or closed all the time.

*All models can be adjusted parameters by ajustable controller.
