Home > Products > cnc pipe cutting machine > High speed cnc plasma tube cutting machine/plasma cnc pipe cutter OEM

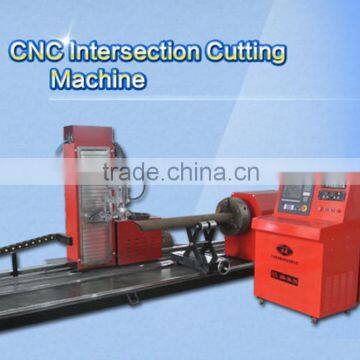

High speed cnc plasma tube cutting machine/plasma cnc pipe cutter OEM

FOB Price

US$ 21,000 - 30,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	Aoling	Model Number	AL-BG630
Voltage	380V	Rated Power	180W
Dimension(LWH)	17009001400mm	Weight	1000KG
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

High speed cnc plasma tube cutting machine/plasma cnc pipe cutter OEM

Type	3/4/5
Input Voltage	380V
Frequency	50/60Hz
Input Power	3000W or more
Display	Color LTD 10.4
Cutting Speed	0-3000mm/min
Movement Speed	0-6000mm/min
Rotational Speed	0-3000mm/min
Cutting Mode	Flame/Plasma
Automatic Torch Height Control	Arc voltage height controller
Cutting Pipe Diameter range	Φ50-800mm(can be customized)
Effective Pipe Length	≤15000mm
Bevel Cutting Angle	30°/45°/60°
Pipe Thickness	Perpendicular cutting : 3-80mm
Bevel cutting	4-40mm
Request the pipe Ellipse	≤1%

1. Cutting steel, pipe or tube
2. Cut forms: intersecting line of the expanded variety of graphics, With Groove
3. Control axis: 246 shafts, bevel cutting standard 5-axis
4. Cutting diameter: according to customer requirements
5. Cutting mode: plasma or flame
6. The maximum length of pipe: less than 12m
7. Pipe clamp method: chuck
8. Power Drive: precision AC servo and special planetary gear
9. Control system: dedicated for intersecting line cutting system can control 5 axes (quantitative)
10. Set intersecting line cutting vision library
