Iron Ore Processing Equipment

Specifications

Complete details of series CHXC dry iron ore processing equipment:

Introduction:

Series CHXC dry magnetic separator is widely applied to separate iron magnetite from non-magnetic materials. With a high magnetic intensity, the dry magnetic iron separator can achieve a high discharge capacity and obtain ore concentrate with high grade. This machine has a good adaptability and stable performance. It can work steadily in harsh environments.

Structure:

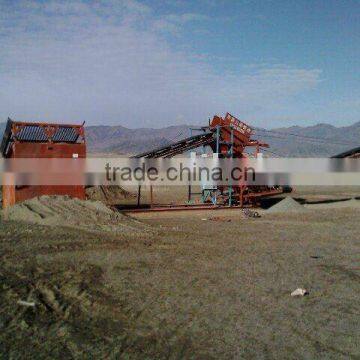

Series CHXC dry magnetic iron separator consists of storage bins, belt conveyors, permanent magnetic drum, chute, etc.

Working principle:

The raw materials are loaded to the storage bin, and then conveyed to a certain height by a belt conveyor to flow into another storage bin. Then through a chute, the raw materials will pass the permanent magnetic drum, where the iron magnetite is separated from non-magnetic materials. After the magnetic separation, the non-magnetic materials will be conveyed to 12 meters away from the dry magnetic separator, while the iron ore concentrates are conveyed to 3 meters away from the dry magnetic separator by the belt conveyor beneath the permanent magnetic drum.

The dry magnetic separator is pulled by a loading machine.

Specifications of permanent magnetic drum:

Diameter: 900mm

Length: 2600mm

Magnetic intensity: Higher than 400 mT (4,000 gauss)

This permanent magnetic drum is developed by our company, and it has been awarded national patent of China, and the patent number is ZL 200820025242.6.

Note: We can fabricate according to customers’ specification requirements.
