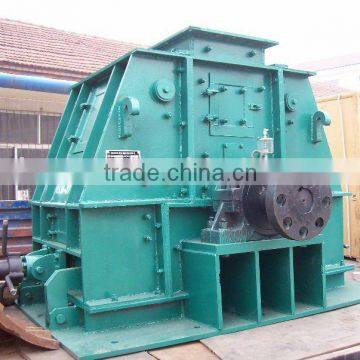

Coal crusher for power plant/PCXK series blockless fine crusher

Specifications

PCXK series Blockless fine crusher is mainly used for the crushing of burning coal of curing bed boiler in thermal power plant, and can also be used for the crushing of medium hardness ore and rocks in mining, metallurgy, chemical industry and other industries.

PCXK series Blockless fine crusher is applicable for fine crushing phase, and it can crush materials in 150mm, 100mm and 80mm into below 10mm.

Technical merits:

1,No screen section, to overcome issues of the material humidity and easy blocking coal.

2,Rotor can be reversed ,to improve the utilization of hammer.

3,Discharge  gate clearance is adjustable, to ensure that the material particle size.

4,Using hydraulic opening mechanism,easy repair and maintenance.

Series blockless fine crusher structure  sketch

 PCXK Rotor structure sketch

Rotor

(1)structure

  series Blockless fine crusher is mainly made up of frame box, cover, crushing plate, rotor, crushing plate adjusting device, etc.

(2) Working principle of PCXK series crusher

The coal briquettes go into the crusher and crashed by the high speed rotating rotor to be crushed 70%-80% at first time. The remaining 20%-30% coal briquettes obtain kinetic energy and rush to the crushing plate at high speed for a second crushing. The crushing plate ejects the coal briquettes back to the hammer heads, again and again, the coal briquettes will be crushed for many times. Meanwhile, the coal briquettes can be crushed through the mutual crash of themselves. The particle size of the discharge products can be adjusted by adjusting the gap between the rotor and crushing plate. The crushed coal briquettes will go out from the discharge opening.
