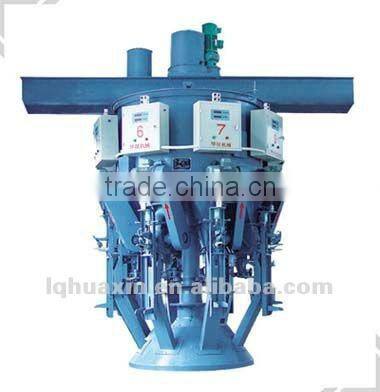

BHYW Series Rotary Cement Packing Machine/cement Bag Packing Machine
- T/T
You May Like
Product Details
| Condition | Used | Year | 2012 | |
| Packaging Material | Metal | Automatic Grade | Automatic | |
| Driven Type | Electric | Place of Origin | Shandong, China | |
| Brand Name | huaxin | Model Number | BHYW |
Product Description
Specifications
Widely usedThe basic automation
More cleaner and small environmental pollution
Maintenance is simple
Introduction :
Rotary cement packing machine is a development of cement packaging equipment ,on the basis of technology packaging machinery in domestic and abroad, its technical index is more than or to the domestic industry level, and handle completely replace the imported equipment.According to many manufacturers using this machine for many years,we plan to refine and improve aspects of performance to make it more stable.It has the following
characteristics:
1- Widely used, where a good powder flow properties, particle material can be packaged using the packaging machine.
2- The basic automation, filling, metering, lost bags and other actions are automatically consecutively.
3- More cleaner and small environmental pollution, no pocket and no filling, the bag can not afford to re-value of less than a calibration bag, the bag was accidentally separated from gate once closed, to stop filling.
4- Maintenance is simple, the vulnerability of small, non-hydraulic, pneumatic components
Technical specifications
Model No. | BHYW-6 | BHYW-8 | BHYW-10 | BHYW-12 | ||||
|
| |||||||
Discharging spouts (unit) | 6 | 8 | 10 | 12 |
|
| ||
Capacity (t/h) | 60~90 | 80~120 | 110~150 | 130~180 |
|
| ||
Qualification rate of weight per package | more than 95% |
|
| |||||
External diameter of rotary drum (mm) | 1560 | 1560 | 1750 | 2090 |
|
| ||
Max. rotary diameter (mm) | 2200 | 2200 | 2400 | 2740 |
|
| ||
Distance between discharging spout and ground (mm) | 1350 |
|
| |||||
Rotary speed of drum (r/min) | 0~6 |
|
| |||||
Voltage of utility power (V) | 380±10% |
|
| |||||
Voltage of controlling power (V) | 220±10% |
|
| |||||
Drive motor of discharging device | Model No. | Y112M-4 |
|
| ||||
Power | 24kW | 32kW | 40kW | 48kW |
|
| ||
Rotary speed | 1440r/min |
|
| |||||
Drive of rotary drum | Frequency conversion motor | Model No. | YVPE90L-4 |
|
| |||
Power | 1.5kW | 1.5kW | 2.2kW | 2.2kW |
|
| ||
Rotary speed | 125~1250r/min |
|
| |||||
Spindle wheel swinging reducer | Model No. | XLDV-4 |
|
| ||||
Speed ratio | 1:35 |
|
| |||||
Weight (kg) | 4320 | 5000 | 5500 | 6200 |
|
| ||
Outline dimensions (L*W*H mm) | 3800*2200*3000 | 3800*2400*3000 | 3800*2740*3000 |
|
| |||

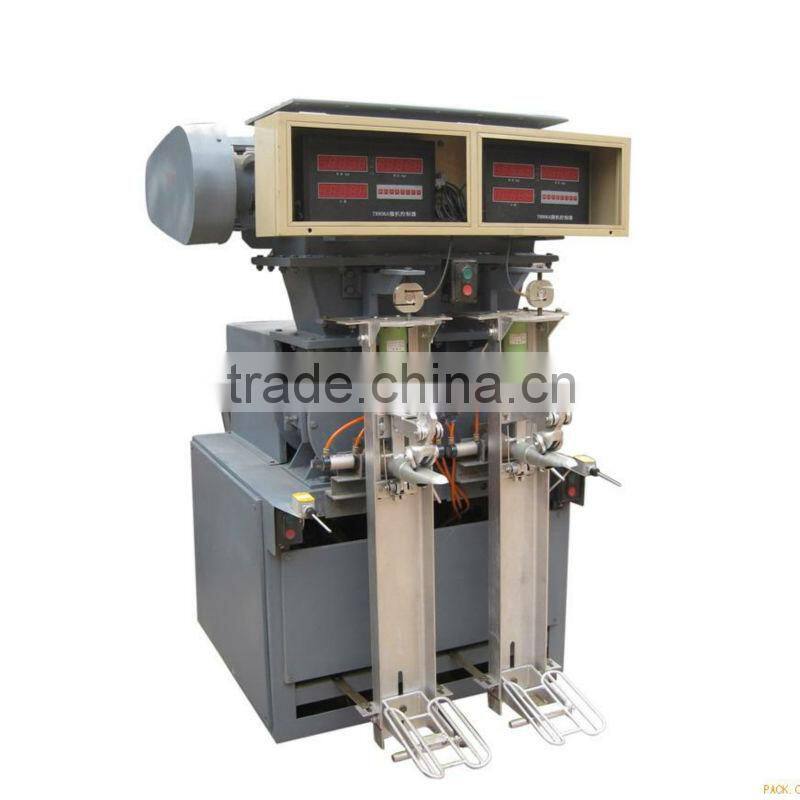

two-spouts cement packing machine
