Heavy Duty 25m3 Tipper Trailer , 50 Ton Back-tipping 3 Axles Tipper Semi Trailer for Sale
US$ 20,000 - 230,000
/ Unit
1 Unit(Min. Order)
- Tianjin Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Heavy Duty 3 Axle 60T Dump / Dumper / Dumping 60 Tons Tipper Trailer
-
TITAN Tri Axle Dump Trailer , Dump Semi Trailer , Dump Semi Trailers for Sale -- IN STOCK
-
60 Ton Capacity Side Dump Semi-trailer With Led Lights
-
20T - 50T Dump Trailers 3 Axles Side Tipping Trailers
-
End Dump , Mining Dump Trailer
-
Telescopic Rams Hydraulic Dump Trailer
Product Details
| Type | Semi-Trailer | Material | Steel | |
| Certification | Other, CE DOT | Size | 11280*2500*3972mm | |
| OEM No. | 25m3 tipper trailer | Max Payload | 40 TON-100 TON | |
| Place of Origin | Shandong, China | Brand Name | TITAN DUMP TRAILER | |
| Model Number | 25m3 tipper trailer |
Product Description

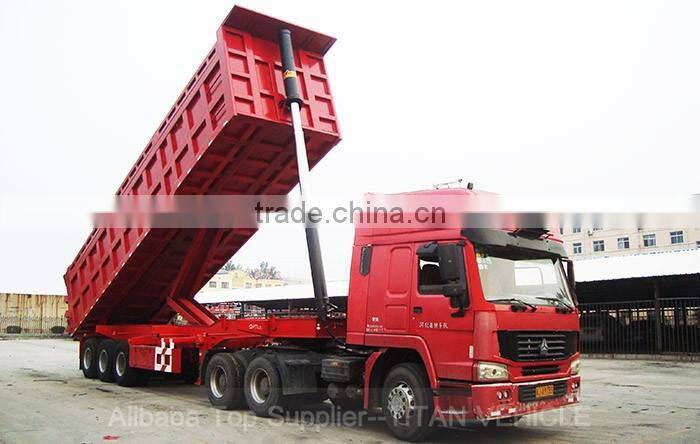

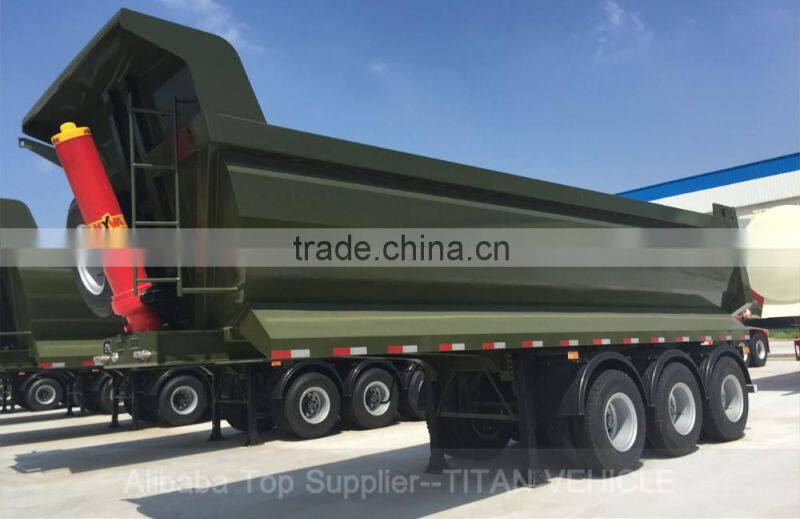

Heavy duty 25m3 tipper trailer , 3 axles tipper semi truck trailer
Titan rear dump semi trailer is very efficient at transporting and unloading coals, limestone, sands, and other loose materials in bulk.

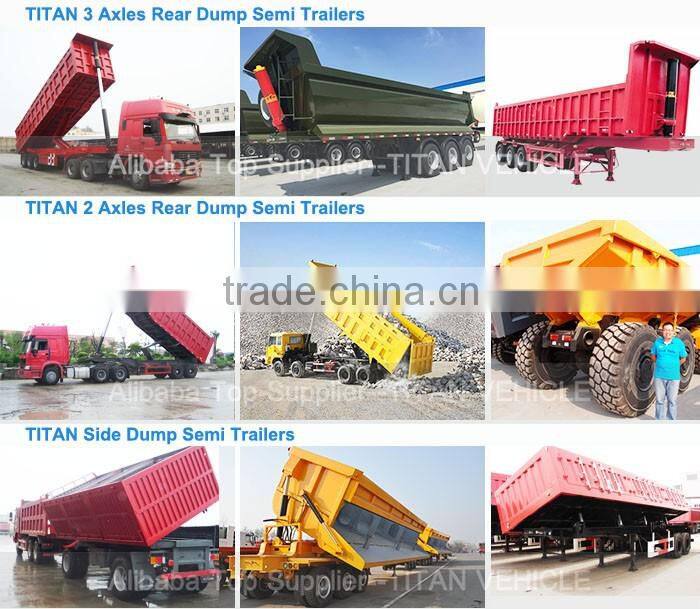

Tri axle dump semi trailer for Algeria
2 Axle Rear Dump Semi Trailer
U shape Rear Dump Semi Trailer
| Remark | This specification just for your reference, custom design is available |
| Dimension | 11280*2495*3970mm (outside dimension)10500*2300*1700mm (Inside dimension |
| Total Volume | 37 CBM or less than 80 tons |
| Side wall thickness | 6mm Q235 steel |
| Bottom plate thickness | 8mm Q235 steel |
| Lifting system | Full set of HYVA Hydraulic lifting cylinder |
| Chassis | |
| Main Beams | High :500mm Upper plate:16mm Middle plate :8mm Lower plate :18mm Q345B steel |
| Axle | 3 axle FUWA, BP brand 13 ton or 16 ton per axle |
| Landing gear | Jost, Fuwa 28T |
| Kin Pin | JOST 2.00 or 3.5 inch bolt-in type |
| Suspension | Mechanical suspension |
| Leaf Spring | 90(w)*13(thickness)mm*10 layers |
| Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
| Tire | 12R20, 12 units |
| ABS | Optional |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
Company Information
Hot sale :
Contact Information

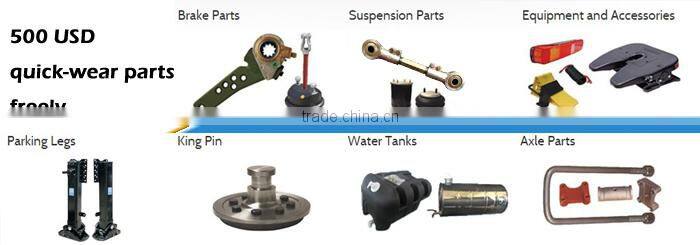

Dear Customers, Place order with in this month , we will supply you 500 USD spare parts freely for you.
