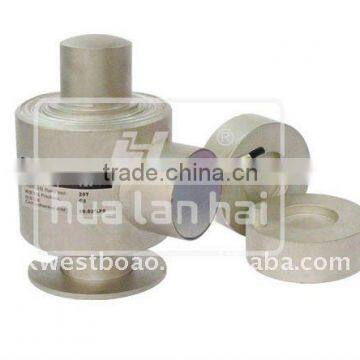

column-style load cell

Specifications

Load cell , column-style  load cell,weighing load cell

Suitable for electronic truck scales,hopper scales and other electronic weighing devices.

Capacity(t): 10,20,30,40,50

Common load cell Specifications:

Accuracy grade:C2/C3

Comprehensive error (%F.S) : ±0.03 / ±0.02

Sensitivity (mv/v) : 3.0±0.003

Creep (%F.S/30min) : ±0.023 / ±0.016

Zero output (%F.S) : ±1.0
Input Resistance (Ω): 350±5

Output Resistance (Ω): 350±3

Insulation resistance (MΩ) : ≥5000(100VDC)

Temperature Effect on Zero (%F.S/10): ±0.029 / ±0.019

Temperature Effect on Span (%F.S/10): ±0.017 / ±0.011

Temperature compensation range (°C ) : -10~+40

Operating temperature (°C ) : -20~+55

Excitation voltage (V) : 9~12(DC)

Safe overload (%F.S) : 150

Limit overload (%F.S) : 200

Protection Grade: IP67/IP68

Digital  load cell Specifications:

Accuracy grade:C3

Comprehensive error (%F.S) : ±0.02

Rated output(counts) : 1,000,000

Creep (%F.S/30min) : ±0.02

Temperature Effect on Span (%F.S/10): ±0.011

Temperature Effect on Zero (%F.S/10): ±0.019

Temperature compensation range (°C ) : -10~+40

Operating temperature (°C ) : -20~+55

Excitation voltage (V) : 5.5~12(DC)

A/D Module resolution(yard):1,000,000

Communication BPS:(BPS) : 9600

Communication port(cable) : RS 485/4

Digital refurbishing frequency(s) : 10~80

Maximum of verification scale intervals(n max) : 5000

munication range(m) : 1200

Num. of the address bus(max) : 32

Safe overload (%F.S) : 150

Protection Grade: IP67/IP68

Installation size diagram:

Wire connecting method:

red       input  +

white   output  -

black   input   -

green  output  +

Power diagram:
