JQT-550-C Motor Blower Replace Liquid Ring Vacuum Pump
- Qingdao China(Mainland)
- D/P D/A Money Gram Credit Card
You May Like
-
1.1kw Air Blower 3 Phases Vacuum Pump Machine for Swimming Pool
-
3 Phase Pump Best Air Blower Price Machine for Aeration Tank
-
JQT-2200S Double Stage Hot Industrail Air Blower
-
Hot Products 3KW Air Blower for Fish Pond and Vacuum Pump
-
Hot Seller JQT 7.5 KW Electric Air Ring Blower and Vacuum Pump
-
1.1kw Air Blower Machine for Swimming Pool and Vacuum Pump
Product Details
| Place of Origin | Shandong, China | Brand Name | Golden Bridge | |
| Model Number | JQT-550-C, JQT-550-C | Theory | Vacuum Pump | |
| Structure | Other, Gear Pump, Single stage | Usage | Air Pump | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | High Pressure | |
| Application | Other, suction |
Product Description

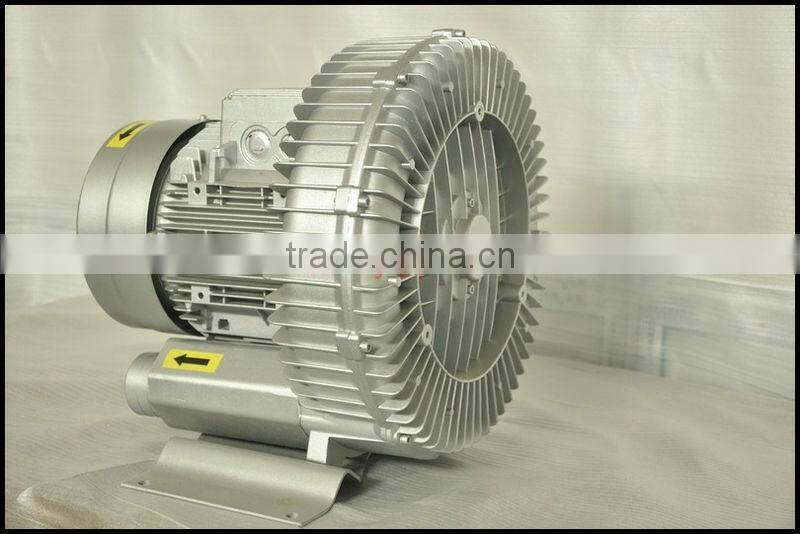

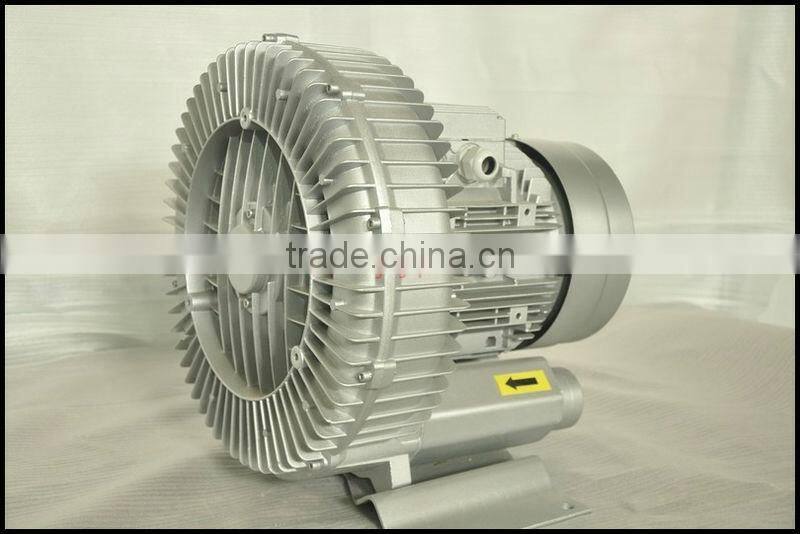

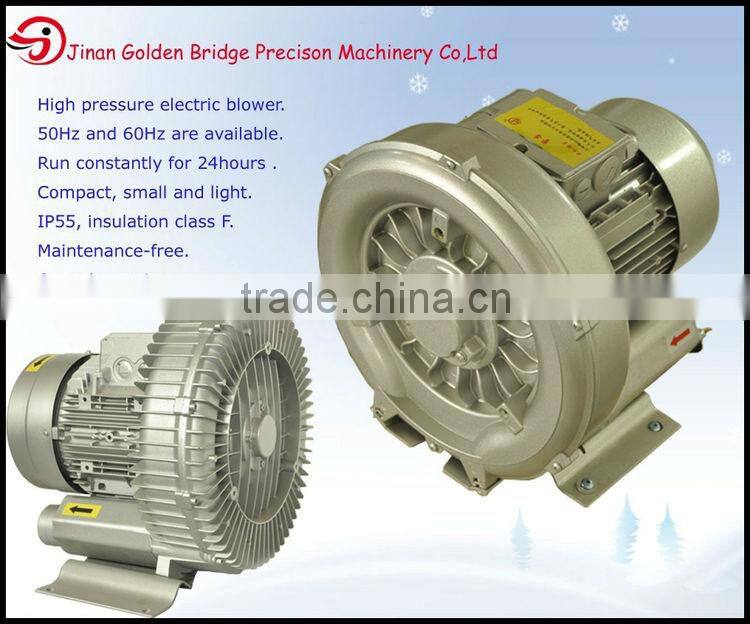

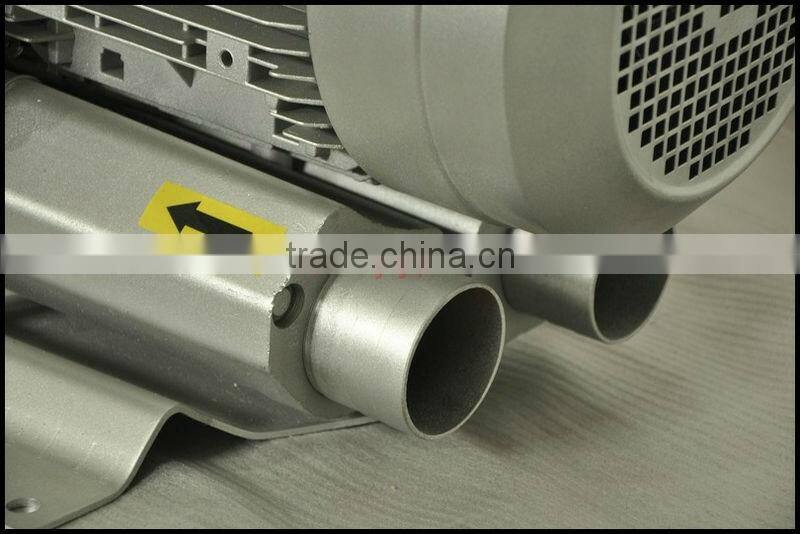

JQT-550-C Motor Blower replace Liquid ring vacuum pump

IP55 insulation class F
High pressure electric blower
Compact small and light
Run constantly for 24 hours
Easy installation
Die cast aluminum
Precise impeller and cover
simple operation
low energy consumption
the gases pumped can be recycled using
compact, easy installation and moving
air-cooled,no water
low voice and libration
oil free vacuum pump
JQT Side Channel Blowers' features:
1. JQT Ring Blowers: Oil free
2. JQT Ring Blowers: Dual-usage
3. JQT Ring Blowers: Owns low noise
4. JQT Ring Blowers: Run constantly for 24hours
5. JQT Ring Blowers: 50Hz and 60Hz are available.
6.JQT Ring Blowers: Maintenance-free.
7. Easy installation
8.The protection class of our blower is IP54 and the Insulation class is F.
Model Number | JQT-550-C |
Structure | Single stage |
Type | Air blower |
Pressure | High pressure |
Power Source | Electric Blower |
Rated Voltage | 220/380V/50Hz |
Rated Power | 550w |
Max pressure | 15Kpa |
Max vacuum | -12Kpa |
Maximum flow | 95m3/h |
Weight | 13kg |
Outline dimensions | 294×288×315mm |
Insulation Class | F |
Certification | CE |
Application | Used in filter cigarette shapers, pulverizing dresser and so on. |
Die cast | Aluminium |

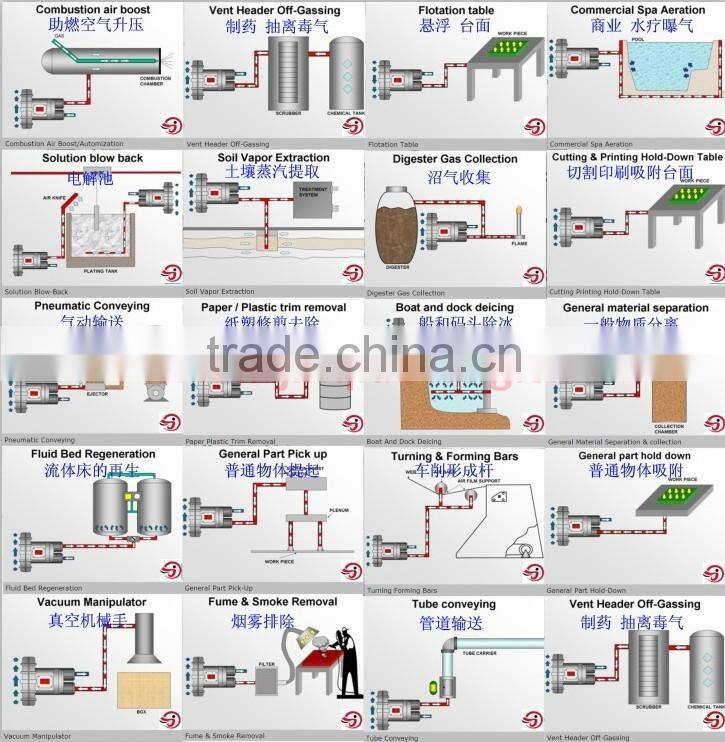

APPLICATIONS
JQT high-pressure blower is widely applied in aeration of Car AC servicing,laboratories,research & development units,high vacuum Systems,scientific,equipments,food Processing Units,printing and Film Processing,air sampling / environmental studies,vacuum forming,electronic & electrical industries.
